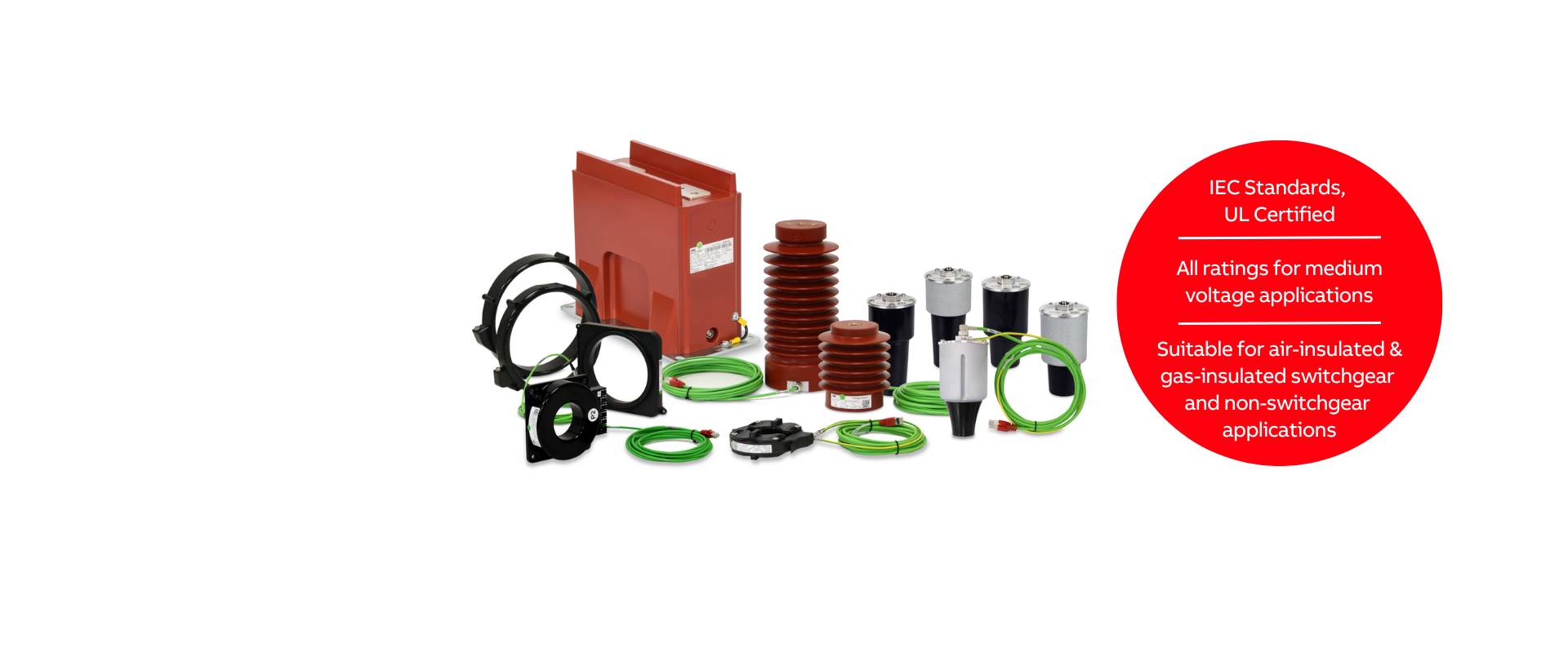

Medium voltage AdvaSenseTM indoor sensors offer an advanced solution for measurement, protection and control of the medium voltage distribution network.

Medium voltage indoor sensors, also called Low-power Instrument Transformers (LPITs), are based on alternative principles (Rogowski coils or voltage dividers) and can successfully replace conventional instrument transformers significantly reducing size, increasing safety, while providing greater rating standardization and a wider functionality range. These well-known principles can only be fully utilized in combination with versatile Intelligent Electronic Devices (IEDs), such as protection and control relays among others.

ABB’s main product line for medium voltage indoor sensors is called AdvaSense. ABB’s medium voltage AdvaSense indoor sensors, for IEC standards, up to 48 kV, are designed for a wide dynamic range of input parameters. Under ABB’s AdvaSense product line, we offer several types of indoors sensors:

  • Indoor current sensors for primary and secondary air- and gas-insulated medium voltage switchgear, up to 4000 A, for current measurements with high linearity and wide dynamic range, based on the principle of Rogowski coil.
  • Indoor voltage sensors for primary and secondary air- and gas-insulated medium voltage switchgear, up to 48 kV, for voltage measurements with high linearity and wide dynamic range, based on the principle of voltage divider.
  • Indoor combined sensors and sensors for special applications, up to 40.5 kV, for current and voltage measurements as well as voltage indication integrated in the same compact cast resin part, based on the principle of Rogowski coil and voltage divider.

To provide connectivity between sensors and IEDs with different types of connectors, ABB designed a group of accessories. Beyond the connectivity, accessories also offer special protection schemes with sensors.

Built to withstand the rigors of the most demanding environments, ABB medium voltage indoor sensors are available for original equipment manufacturers (OEMs), panel builders and non-panel builders’ applications, Engineering, Procurement and Construction (EPC) partners, utilities, as well as end-users to incorporate in their own installations.

ABB supports customers and partners in staying ahead of increasing electrification needs, technology, and regulatory changes, providing the power to adapt to a rapidly evolving energy landscape.
Contact Us
New to AdvaSense? Go to Insights

Why choose AdvaSense sensors

SAFETYSAFETY

  • Ferroresonance free
  • Low voltage signals
  • No need to use voltage transformer fuses
  • Increased personnel safety

SUSTANABILITY

SUSTANABILITY

  • Decreased energy consumption
  • Reduced CO2 emissions

SAVINGS

SAVINGS

  • Space saving solution for switchgear
  • Saving in transportation costs
  • Time saving (products in stock)
  • Quick dispatch

FLEXIBILITY

FLEXIBILITY

  • Wide parameter range of each sensor
  • Easy replacement of conventional instrument transformers

AdvaSense Indoor sensors

IEC & Other standards

Sensors for GIS
Sensors for AIS
Combined sensors and sensors for special applications

AdvaSense Indoor sensors for primary & secondary gas-insulated switchgear
(cable connector installation)

KEVAB

KECA 80 C85

KECA 80 C85, up to 4,000 A  with an accuracy class of 0.2S-A2/5P 85 kA (3s). An ideal solution for medium voltage primary and secondary gas-insulated switchgear, compact secondary substations and distribution transformers both for greenfield and brownfield installations.

Learn more:
KECA 80 C85, Indoor current sensor



KEVAC

KEVA xx Cxx

KEVA C, up to 40.5 kV, is an indoor voltage sensor product family ideal for primary and secondary medium voltage gas insulated switchgear, compact secondary substation, standalone applications together with cable connectors in greenfield and brownfield installations. They are assembled as replacement of the insulation plug in cable connectors.

ABB offers a wide variability of these plug-type sensors to cover a large majority of solutions in the market. KEVA C also complies with CENELEC HD 629.1 standard proving its excellent performance in the applications.

AdvaSense Indoor sensors for primary and secondary air-insulated switchgear
(installation around bushing/post insulator)

KECA 80 Cxxx

KECA 80 Cxxx

KECA 80 Cxxx, up to 4000 A and with an accuracy rate up to 0.2S-A2/5P 85 kA (3s), ideal for medium voltage primary and secondary air-insulated switchgear and distribution transformers.

Learn more:
KECA 80 C104, KECA 80 C165, MV Indoor current sensor
KECA 80 C125, MV Indoor current sensor
KECA 80 C184, KECA 80 C216, MV Indoor current sensor
KECA 80 C260, MV Indoor current



KECA250

KEVA B

KEVA B, up to 48 kV, is an indoor voltage sensor product family ideal for primary or secondary air-insulated switchgear, standalone applications in greenfield and brownfield as well as for railway switchgear. They are assembled as post insulators or standalone products.

Learn more:
KEVA B

AdvaSense Indoor combined sensors & sensors for special applications

KEVCY

KEVCY RE

Combined indoor sensor KEVCY RE, up to 40.5 kV and current up to 630 A, is ideal for medium voltage secondary gas-insulated switchgear in greenfield installations.

Learn more:
KEVCY 24 RE1, KEVCY 24 RF1
KEVCY 36 RE1; KEVCY 40.5 RE1

KEVCD

KEVCD AE/BE/AG/BG

Combined indoor sensors KEVCD AE/BE and current indoor sensors A/BG, up to 24 kV and current up to 3,200 A, are used in medium-voltage primary and secondary air-insulated switchgear standalone application in greenfield and brownfield installations.

Learn more:
KEVCD A
KEVCD B

KEVCR 24 BA

KEVCR 24 BA2

Combined indoor sensors from KEVCR family, up to 24 kV and with current up to 2,000 A, are used in medium voltage primary and secondary air-insulated switchgear mainly in greenfield installations.

KEVCR 24 xC2

KEVCR 24 xC2

Special current sensors KEVCR 24 xC2, up to 24 kV, are a medium voltage indoor current sensors with current up to 1,250 A. KEVCR 24 xC2 are ideal for medium voltage indoor circuit breakers.


Sensor accessories

Accessories small



To provide connectivity between sensors and intelligent electronic devices (IEDs), such as protection and control relays, with different types of connectors, ABB designed a group of accessories. The purpose of the connector adapters is to adapt the sensor connector type to the IED connector type if they do not match directly. Beyond the connectivity, accessories also offer special protection schemes with sensors.

Learn more:
 Sensor Accessories


Product scope

Click the arrow to learn more about product scope.

 Indoor sensors for GISIndoor sensors for AIS Indoor combined sensors & sensors for special applications
 KEVABKECA 80 D85KEVACKEVCYKEVCDKEVCR 24 BAKECA 80 CxxxKECA 250 B1_6KECA250
 KECA 80 C85KECA 80 D85KEVA C
KEVCY RE
KEVCD AE/BE
KEVCR 24 xC2
KECA 80 Cxxx
KECA 250 B1
KEVA B
Maximal rated voltage of application/voltage levels
up to 40.5 kV /0.72/3/-kVup to 40.5 kV /0.72/3/-kVup to 40.5 kV / 40.5/95/200kV
up to 40.5  kV/ 40/95/185 kV
up to 24 kV / 24/50/125 kV
up to 24 kV / 24/50/125
up to 40.5 kV / 0.72/3/ kV
up to 24 kV / 0.72/3/ kV
up to 48 kV / 48/95/200 kV
Maximal rated primary current / voltage up to 4000 Aup to 4000 Aup to 38/V3 kVup to 630 A / up to 35/V3 kV up to 3200 A / up to 22/V3 kV up to 1250 A up to 4000 A up to 4000 A up to 45/V3 kV
Ratio 80 A /150mV@50Hz80 A /150mV@50Hz10 000:180 A /150mV 50Hz/ 10 000:1 80 A /150mV 50Hz/ 10 000:1 250 A /150mV@50Hz 80 A /150mV@50Hz 250 A /150mV@50Hz 10 000:1
Accuracy class/ Rated short-time primary current 0.2S-A2/5P85 kA (3s)0.5-A2/5P85 kA (3s)0.2(0.5)/3P0.5/5P, 0.5/3P 25 kA (3s) 0.5(1)/5P, 0.5(1)/3P 40(50) kA (3s) 1/5P30 21 kA (3s) 0.5-A2/5P 85 kA (3s) 0.5-A2/5P 85 kA (3s) 0.2(0.5)/3P
Standards/ Certifications IEC / UL certifiedIEC / UL certifiedIECIEC / UL certified in ABB SafeRing, IEC IEC IEC / UL certified IECIEC / UL certified
ApplicationsMV primary and secondary gas-insulated switchgear, compact secondary substations, distribution transformers, greenfield installationMV primary and secondary gas-insulated switchgear, compact secondary substations, distribution transformersMV primary and secondary gas-insulated switchgear, compact secondary substation, standalone application, greenfieldMV secondary gas-insulated switchgear, greenfield installationMV primary and secondary air-insulated switchgear, standalone application, greenfield and brownfield installationMV circuit breakersMV primary and secondary air-insulated switchgear, distribution transformersMV primary and secondary air-insulated switchgear, distribution transformersMV primary and secondary air-insulated switchgear, standalone application, greenfield and brownfield installation

Insights


AdvaSense skupina
Video
Discover AdvaSense

ABB's AdvaSense sensors offer a range of benefits compared to conventional instrument transformers in medium-voltage switchgear, including reduced space requirement and weight, increased safety and reliability, and faster switchgear deliveries. Theses sensors, also known as low-power instrument transformers, are based on alternative principles (Rogowski coils or voltage dividers).
AdvaSense_news
Customer success story
EŽ integrates ABB’s AdvaSense sensors into a railway substation

Elektrizace Železnic (EZ) has integrated ABB’s AdvaSense™ sensors into a 25 kV AC switchgear at a railway substation - marking the first use of this technology in a Czech railway setting, establishing a benchmark for future smart, safe, and high-performing solutions.


Configure your ABB indoor sensor


ABB PartnerHub

AdvaSense - ABB Library

Please click to see all ABB Library documents related to this product portfolio.

AdvaSense

Related offering

Primary distribution
Air-insulated switchgear
Gas-insulated switchgear
Transformers_CTR400x200
Outdoor instrument transformers
TPU_270
Indoor instrument transformers

FAQ

1. Can ABB’s medium voltage AdvaSense sensors work in non-ABB installations?

Yes, ABB’s medium voltage AdvaSense sensors are easy to install and friendly to maintain in most of the medium voltage indoor applications.

2. What is the maximum insulation voltage level of ABB’s medium voltage AdvaSense sensors for IEC standards?

The maximum insulation voltage levels of ABB’s medium voltage indoor IEC sensors is 40.5/95/200 kV for 3-phase system.

3. Can ABB’s medium voltage AdvaSense sensors saturate?

No, they cannot. Indoor AdvaSense current sensors are based on Rogowski coil principle and voltage sensors on voltage divider principle, so there is no ferromagnetic material used inside.

4. Which customers typically use and install ABB’s medium voltage AdvaSense sensors?

ABB’s medium voltage AdvaSense sensors are typically used by original equipment manufacturers (OEMs), panel builders and non-panel builders’ applications, Engineering, Procurement and Construction (EPC) partners, utilities, as well as end-users. The sensors can be incorporated into installations or retrofit and upgrade projects.

5. Are ABB’s medium voltage AdvaSense sensors compatible with third party IEDs?

Yes, ABB’s medium voltage AdvaSense sensors are compatible with majority of third party IEDs supporting the Low-power Instrument Transformers (LPIT) inputs. All tested and compatible devices are listed in ABB Sensor Compatibility guide.
6. Can ABB’s medium voltage AdvaSense sensors be used in non-panel builders’ switchgear installations?

Yes, ABB’s medium voltage AdvaSense sensors can be used in non-panel builders’ installations such as compact secondary substations, motors and generators, large transformers, and others.
7. Do ABB’s medium voltage AdvaSense sensors comply with other global standards?
Yes, ABB's medium voltage AdvaSense sensors comply with the latest versions of the IEC 61869 standards. All-relevant products are also UL certified for use in the ANSI market and cover requirements for use in applications according to GB standards.
8. Can ABB’s medium voltage AdvaSense sensors be used for revenue metering?
Yes, ABB’s medium voltage AdvaSense sensors can be used for revenue metering. ABB introduced high accurate sensors with accuracy class 0,2(S) which are compatible with first measuring instruments directive (MID) certified revenue energy meter (MeVolt).
9. What is the expected lifetime of ABB’s medium voltage AdvaSense sensors?
ABB’s medium voltage AdvaSense sensors have an expected minimum lifetime of 30 years.
10. Do ABB’s medium voltage AdvaSense sensors require any specific maintenance or calibration during their lifetime?
ABB’s medium voltage AdvaSense sensors do not require any specific maintenance or calibration during their lifetime, just removing dust depending on the environment in the application. For more information, please see the installation manual.
11. Can ABB’s medium voltage AdvaSense sensors be delivered worldwide?
Yes, ABB has a global installed base of these products. Please feel free to contact our sales representatives for further information.
