Discover Our Range, Virtually and Realistically

We invite you to explore our 3D catalog. Discover the perfect product for your needs and experience our offerings virtually. Get a realistic feel for our offerings from the comfort of your screen. Detailed specifications and high-resolution visuals bring our products to life. Click on any item to learn more and explore its features in detail.

Air Insulated Switchgear
Gas Insulated Switchgear
Primary AIS
UniGear

Medium voltage switchgear for primary distribution up to 40,5 kV suitable for indoor installations

unigear-zs_horizont
/unigear-zs1-12-17-5-kv-single-level.

UniGear ZS1 12/17,5 kV, 31,5 kA single level

UniGear ZS1 12/17.5 kV is MV switchgear with a metal enclosure, suitable for indoor installations. Metal partitions segregate the compartments from each other, and the live parts are air-insulated. Available up to 4000 A and 63 kA

UniGearZS1

UniGear ZS1 12 kV, 31.5 kA single level – width 500mm

500mm wide UniGear ZS1 is MV switchgear panel dedicated to 12 kV with a metal enclosure suitable for indoor applications. Metal partitions segregate the compartments from each other, and the live parts are air-insulated. It is available up to 1250 A of nominal current, with busbar rating up to 4000 A and 31.5 kA

UniGearZS1

UniGear ZS1 12 kV, 31.5 kA single level – width 500mm with LPITs (with Low Power Instrument Transformers)

500mm wide UniGear ZS1 up to 12 kV with LPITs : built with well-proven components like current and voltage sensors, protection and control relays and IEC 61850 communication. It is flexible, simple and ready for the future. This 500mm UniGear ZS1 is available up to 1250 A of nominal current, with busbar rating up to 4000 A and 31.5 kA

1101 placeholder

UniGear ZS1 12 kV, 31,5 kA (500 mm with M&D). Only for China market

ABB’s well-known and widely accepted UniGear ZS1 is also available with a slim width panel of only 500 mm. The well-established medium-voltage switchgear offers the high safety for personnel, enhanced switchgear reliability, and smart monitoring & diagnostic solution. Only for China market

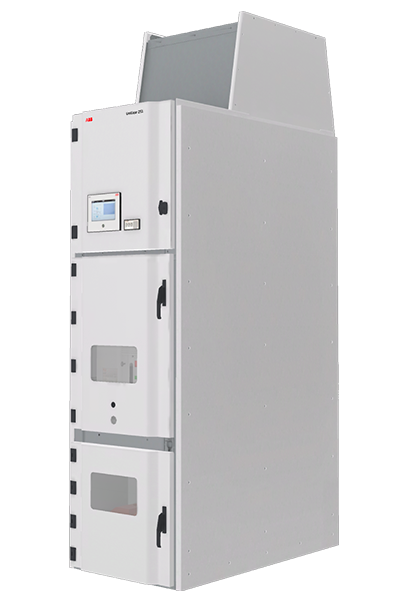

UniGear ZS1 12,17,5 kV 40 kA

UniGear ZS1 12/17,5 kV 40 kA single level

UniGear ZS1 12/17.5 kV is MV switchgear with a metal enclosure, suitable for indoor installations. Metal partitions segregate the compartments from each other, and the live parts are air-insulated. Available up to 1250 A and 40 kA in 650 mm width panel

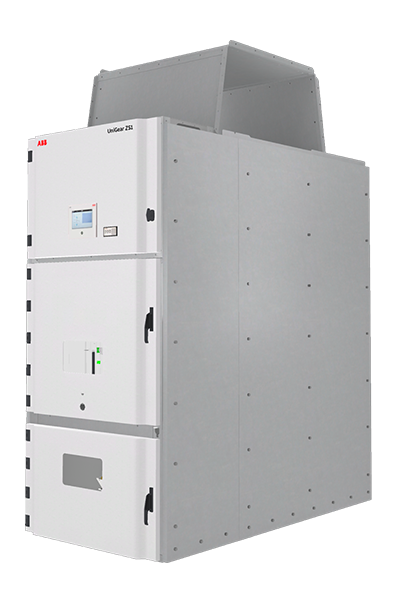

1102 placeholder

UniGear ZS1 12/17,5 kV, 63 kA single level

UniGear ZS1 63 kA for generator application has an extremely high short-circuit current rating up to 63 kA and it is available to a voltage of up to 17,5 kV. The switchgear has a withdrawable vacuum circuit-breaker VD4 or VD4G (specific for generator applications) to allow for easy maintenance

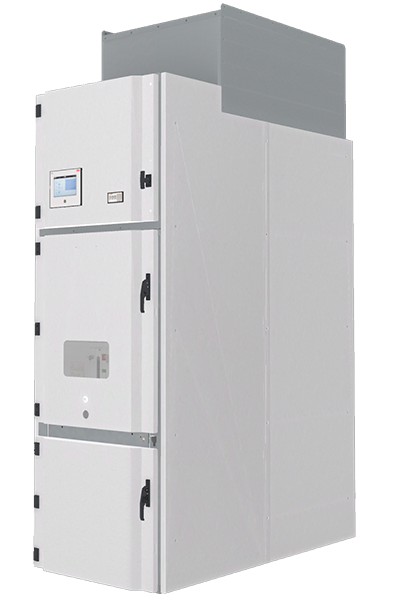

UniGear ZS1 24 kV single level

UniGear ZS1 24 kV, 31,5 kA single level

UniGear ZS1 24 kV is MV switchgear with a metal enclosure, suitable for indoor installations. Metal partitions segregate the compartments from each other, and the live parts are air-insulated. Available up to 3150 A and 31.5 kA

1112 placeholder

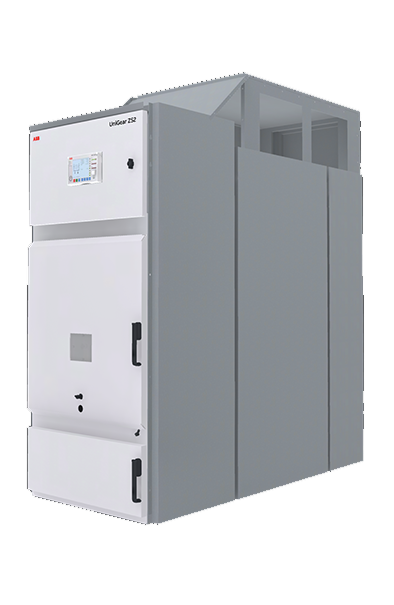

UniGear ZS2 36 kV, 31,5 kA single level

UniGear ZS2 is built of well-proven components: current and voltage transformers, protection and control relays and IEC 61850 digital communication. Available up to 36 kV, 3150 A and 31,5 kA. Flexibility, increased process efficiency, lower cost of operation and maximized integration, reliability and safety are its key features.

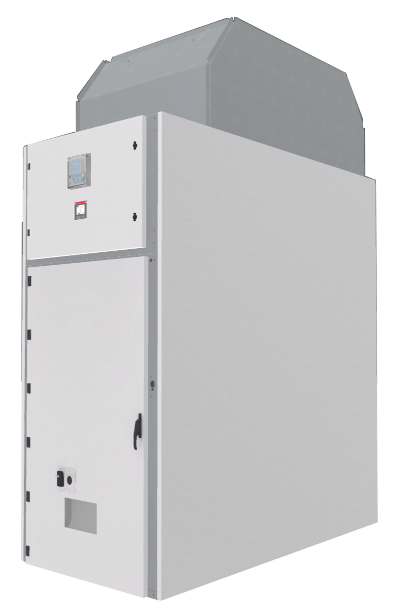

1114 placeholder

UniGear ZS3.2 40,5 kV 31,5 kA single level

UniGear ZS3.2 is MV switchgear with a metal enclosure suitable for indoor installations. Metal partitions segregate the compartments from each other, and the live parts are air-insulated. UniGear ZS3.2 is available up to 40,5 kV, 31,5 kA and 3150 A.

UniGear ZS1_24

UniGear ZS1 12/17,5 kV 31,5 kA single level
(with current and voltage sensor's technology)

UniGear ZS1 12/17,5 kV with LPITs implemented: built with well-proven components like current and voltage sensors, protection and control relays and IEC61850 digital communication. UniGear ZS1 Digital: simple, flexible, ready for the future. This UniGear ZS1 is available up to 1250 A and 31,5 kA in 650 mm wide panel

UniGear ZS1_12

UniGear ZS1 12/17,5 kV 40 kA single level
(with current and voltage sensor's technology)

UniGear ZS1 12/17,5 kV with LPITs implemented: built with well-proven components like current and voltage sensors, protection and control relays and IEC61850 digital communication. UniGear ZS1 Digital: simple, flexible, ready for the future. This UniGear ZS1 is available up to 1250 A and 40 kA in 650 mm wide panel

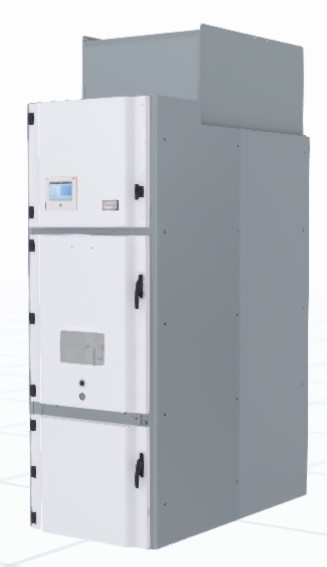

UniGear ZS1_24

UniGear ZS1 24 kV 31,5 kA single level
(with current and voltage sensor's technology)

UniGear ZS1 24 kV with LPITs implemented: built with well-proven components like current and voltage sensors, protection and control relays and IEC61850 digital communication. UniGear ZS1 Digital: simple, flexible, ready for the future. This UniGear ZS1 is available up to 3150 A and 31,5 kA in 800 mm wide panel

ZS2 digital

UniGear ZS2 36 kV, 31,5 kA
(with current and voltage sensor's technology)

Well-proven UniGear ZS2 switchgear with a new solution implemented: current and voltage sensors, protection and control relays and IEC 61850 digital communication. UniGear ZS2 Digital – simple, flexible, ready for the future. Available up to 36 kV, 2500 A and 31,5 kA



Secondary AIS
UniSec

Medium voltage switchgear for secondary distribution up to 24 kV, 1250 A based on flexible and modular concept.

unisecair_pr2
1301 placeholder

UniSec SDC unit 24 kV 630 A

Incoming and outgoing unit section mainly used for ring distribution network equipped with three position switch disconnector. Available with different sizes 375 mm, 500 mm and 750 mm

a white rectangular object with a blue screen

UniSec SBC unit 24 kV 630 A

Incoming and outgoing unit section equipped with three position switch disconnector  and vacuum circuit breaker

1305 placeholder

UniSec WBC unit 12 kV 1250 A

Incoming and outgoing unit section equipped with vacuum withdrawable circuit breaker

1307 placeholder

UniSec UMP unit 24 kV 630 A

Metering unit with instrument transformers available in more configurations to meet the requirement of different applications

a white machine with a black background

UniSec SBR unit 24 kV 630 A

Reversed incoming and outgoing unit equipped with three position switch disconnector and circuit breaker

UniGear_9IBA240801_720x540 (2)

UniSec SFC unit 24 kV

Transformer protection unit equipped with three position switch disconnector GSec combined with medium voltage fuses. Available with different sizes 375 mm, 500 mm and 750 mm

UniGear_9IBA240801_720x540 (2)

UniSec HBC unit 24 kV 630 A


Incoming and outgoing unit section equipped with HySec multifunction apparatus with integrated vacuum circuit-breaker and three position disconnector

UniGear_9IBA240801_720x540 (2)

UniSec WBC unit 24 kV 1250 A

Incoming and outgoing unit section equipped with vacuum withdrawable circuit breaker

UniGear_9IBA240801_720x540 (2)

UniSec SDM unit 24 kV 630 A

Coupling unit with switch disconnectors and instrument transformers

UniSec SBC-W unit 24 kV 630 A

Incoming and outgoing unit equipped with three position switch disconnector and withdrawable circuit breaker

Primary AIS
LeanGear

Medium voltage compact switchgear for primary distribution up to 12 kV, 2000 A for selected markets.

LeanGear ZS9a
UniGear_9IBA240801_720x540 (2)

LeanGear ZN1 12 kV

LeanGear ZN1 12 kV is MV switchgear with a metal enclosure, suitable for indoor installations. Metal partitions segregate the compartments from each other, and the live parts are air-insulated. Available up to 2000 A and 26,3 kA

UniGear_9IBA240801_720x540 (2)

LeanGear ZS9 12 kV

LeanGear ZS9 is an arc-proof Air Insulated Switchgear for the primary distribution market, targeted for the South East Asian market. It offers optimal safety with an internal arc rating of 25 kA for 1s and it’s tested for tropical conditions. Available up to 12 kV, 25 kA and 2000 A

Secondary AIS
UniSec Air

Medium voltage SF6-free switchgear for secondary distribution up to 24 kV with 1250 A with same footprint, operations and backward compatibility as the original UniSec.

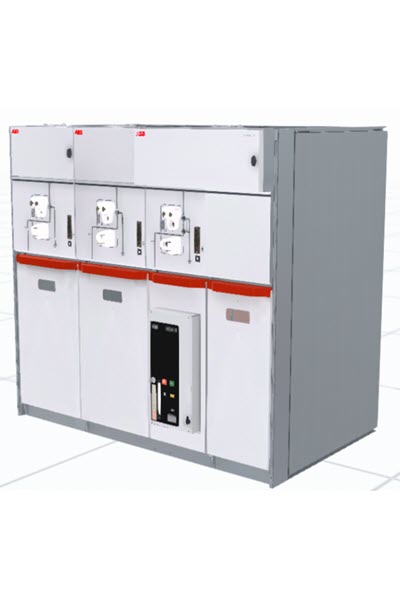

UniSec Air1
UniSec Air2

UniSec Air is a medium-voltage switchgear designed for secondary distribution up to 24 kV, 1250 A, 25 kA.

It contains GSec Air, a general purpose three-position switch disconnector or disconnector for frequent switching applications, with dry air as the insulation medium – that has a global warming potential (GWP) of zero and vacuum interrupter for breaking capacity.
The switchgear, when equipped with a disconnector, also contains a vacuum circuit breaker.
UniSec Air is fully compliant with IEC standards and the EU F-gas regulation (EU) 2024 / 573

Primary GIS
ZX2

Medium voltage switchgear for primary distribution up to 42 kV, 3150 A suitable for indoor installations

ZX2a



UniGear_9IBA240801_720x540 (2)

ZX2 Feeder 600 mm, outer cone, 1250 A with current and voltage sensors

600 mm wide feeder panel with nominal current of 1250 A (outer cone cable connection). Double bus bar configuration with 2500 A current capacity on each bus bar system. The panel is equipped with features for monitoring and diagnostics and sensor solutions for voltage and current measurement

UniGear_9IBA240801_720x540 (2)

ZX2 Feeder 840 mm, outer cone, 2500 A with current and voltage sensors

840 mm wide panel (outer cone cable connection, two cable bushings per phase) and double bus bar configuration with 2500 A current capacity on each bus bar system. The maximum nominal current of the feeder panel is also 2500 A. The panel is equipped with features for monitoring and diagnostics.

UniGear_9IBA240801_720x540 (2)

ZX2 Riser panel 840 mm

The combination of a riser panel and a sectionalizer panel are used to divide a bus bar system in segments that can be separated. The riser panel contains a three position disconnector and often a current transformer or sensor.

UniGear_9IBA240801_720x540 (2)

ZX2 Metering panel 600 mm

The metering panel with a width of 600 mm contains isolatable voltage transformers or voltage sensors. The switch for the activation of the isolation system can be found in the low voltage compartment.

ZX2 Feeder 600 mm, inner cone, 1250 A

600 mm wide feeder panel with nominal current of 1250 A (inner cone cable connection) and double bus bar configuration with 2500 A current capacity on each bus bar system. The panel is equipped with features for monitoring and diagnostics.

UniGear_9IBA240801_720x540 (2)

ZX2 Feeder panel, 3150 A with CTs and VTs

840 mm wide panel (inner cone cable connection) and double bus bar configuration with 3150 A current capacity on each bus bar system. The max. nominal current of the feeder panel is also 3150 A . The panel is equipped with features for monitoring and diagnostics.

UniGear_9IBA240801_720x540 (2)

ZX2 Coupler panel 840 mm

840 mm wide coupler panel that connects both bus bar systems. The current capacity of the bus bar systems and the panel is 2500 A. The panel is equipped with features for monitoring and diagnostics.

UniGear_9IBA240801_720x540 (2)

ZX2 Double Feeder Panel, 2x400 mm, 630 A with CTs

800 mm wide panel consisting of 2 x 630 A feeders (outer cone cable connection) and double bus bar configuration with 2500 A current capacity on each bus bar system. Both feeders share one common bus bas compartment per bus bar system. The panel is equipped with features for monitoring and diagnostics.







Secondary GIS
SafeRing/SafePlus

Medium voltage compact metal enclosed switchgear for secondary distribution up to 40,5 kV, 630 A

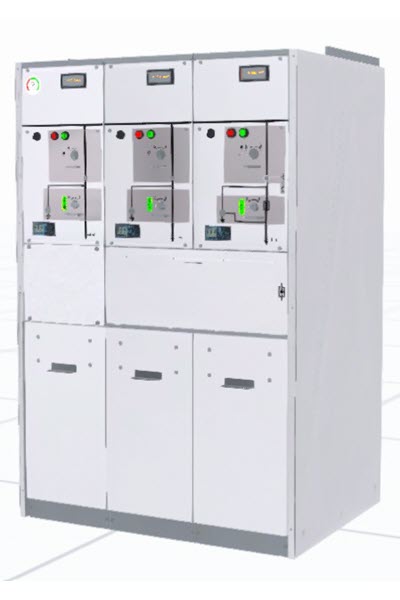

safeRing_safePlus_800x800
SafeRing CCF up to 24 kV 16 kA

SafeRing CCF up to 24 kV 16 kA

SafeRing is a ring main unit (RMU) for the Medium Voltage secondary distribution network. CCF configuration includes 3 unit functions

  • 2 Cable switch (C) units each equipped with one three position switch-disconnector and earthing switch
  • 1 Fuse switch (F) equipped with one three position switch-disconnector and earthing switch combined with Medium Voltage fuses
SafePlus CV – 36 kV 25 kA

SafePlus CV – 36 kV 25 kA

SafePlus is a metal enclosed compact switchgear system for distribution applications. CV configuration internal arc proof version (IAC A FLR) includes 2 unit functions:

  • 1 Cable switch (C) units each equipped with one three position switch-disconnector and earthing switch
  • 11 Vacuum circuit breaker (V) equipped with one vacuum circuit breaker, earthing switch and protection relay REF 601
SafePlus CCV – 24 kV 20 kA

SafePlus CCV – 24 kV 20 kA

SafePlus is a metal enclosed compact switchgear system for distribution applications. CCV configuration internal arc proof version (IAC A FLR) includes 3 unit functions:

  • 2 Cable switch (C) units each equipped with one three position switch-disconnector and earthing switch
  • 1 Vacuum circuit breaker (V) equipped with one vacuum circuit breaker, earthing switch and protection relay REF 615

SafePlus C-C-C-V-V, 24 kV 16 kA

SafePlus C-C-C-V-V, 24 kV 16 kA

SafePlus is a metal enclosed compact switchgear system for distribution applications. C-C-C-V-V configuration includes 5 independent modular unit functions connected with top external busbars:

  • 3 Cable switch (C) units each equipped with one three position switch-disconnector and earthing switch
  • 2 Vacuum circuit breaker (V) equipped with one vacuum circuit breaker, earthing switch and self-powered protection relay REJ 603



Primary GIS
PrimeGear ZX0

Medium voltage switchgear for primary distribution up to 24 kV, 2500 A suitable for indoor installations

PrimeGear ZX0a
PrimeGear ZX0 feeder 450 mm, 800 A

PrimeGear ZX0 feeder 450 mm, 800 A

450 mm wide feeder panel with nominal current of 800 A. The panel is equipped with features for monitoring and diagnostic and sensor solutions for current and voltage measurement

PrimeGear ZX0 coupler panel 600 mm, 1250 A

PrimeGear ZX0 coupler panel 600 mm, 1250 A

600 mm wide coupler panel with nominal current of 1250 A. The panel is equipped with features for monitoring and diagnostic and a current transformer as well as voltage sensors

PrimeGear ZX0 coupler panel 600 mm, 1250 A

PrimeGear ZX0 coupler panel 600 mm, 1250 A

600 mm wide coupler panel with nominal current of 1250 A. The panel is equipped with features for monitoring and diagnostic, current and voltage sensors

PrimeGear ZX0 feeder 600 mm, 1250 A

PrimeGear ZX0 feeder 600 mm, 1250 A

600 mm wide feeder panel with nominal current of 1250 A. The panel is equipped with features for monitoring and diagnostic and sensor solutions for current and voltage measurement

PrimeGear ZX0 bus riser panel 600 mm, 1250 A

PrimeGear ZX0 bus riser panel 600 mm, 1250 A

600 mm wide bus riser panel with nominal current of 1250 A. The panel is equipped with features for monitoring and diagnostic and voltage sensors

Secondary GIS
SafeRing/SafePlus Air

Medium voltage SF6-free compact switchgear for secondary distribution up to 24 kV with 630 A with same footprint, operations and backward compatibility as the original SafeRing/SafePlus Air

CCF-1582_Safering_safeplus
safeRing_sPlus

SafeRing/ SafePlus Air CCF up to 24 kV 630 A 20 kA

SF6-free Gas Insulated Switchgear, with dry air as the insulation medium and Global warming potential (GWP) = 0 . The CCF configuration  includes 3-unit functions:

  • 2 cable switch units each equipped with one three position switch disconnector and earthing switch
  • 1 fuse switch (F) equipped with one three position switch-disconnector and earthing switch combined with Medium voltage fuses

SafeRing/ SafePlus is fully compliant with IEC standards and the EU F-gas regulation (EU) 2024 / 573

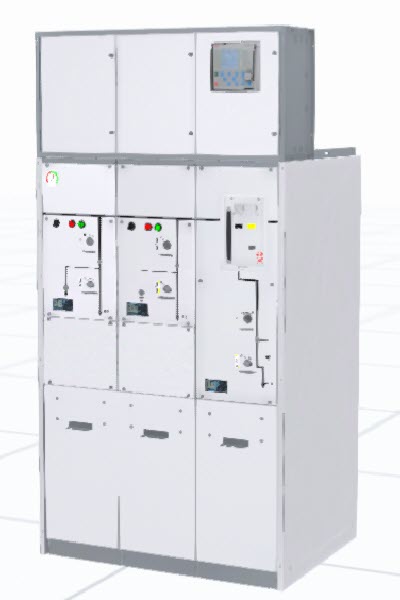

safeRing_sPlus_Air

SafeRing/ SafePlus Air CCV up to 24 kV 630 A 20 kA

SF6-free Gas Insulated Switchgear, with dry air as the insulation medium and Global warming potential (GWP) = 0 . The CCV configuration  includes 3-unit functions:

  • 2 cable switch units each equipped with one three position switch disconnector and earthing switch
  • 1 Vacuum circuit breaker (V) equipped with one vacuum circuit breaker earthing switch and protection relay.

SafeRing/ SafePlus is fully compliant with IEC standards and the EU F-gas regulation (EU) 2024 / 573
