0248/04-101 J-64

General Information

  • Extended Product Type:
    0248/04-101 J-64
  • Product ID:
    2CHK290404C4004
  • Catalog Description:

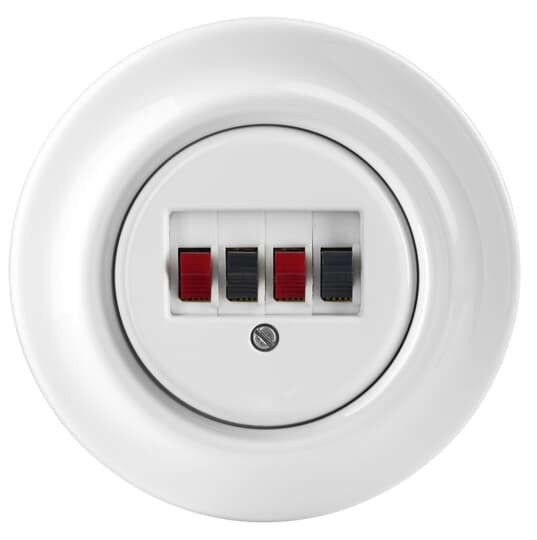

    Multimedia Devices Loudspeaker connection white - Decento
  • Long Description:
    Decento, White porcelain, Loudspeaker socket, complete

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Application:
    Loudspeaker connection
  • Design Range:
    Decento
  • Action Type of the Contact Element (acc. to IEC 60947-5-1):
    Basic element with complete housing
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Mounting with Claw
    Mounting with Screw
  • Type of Indicator:
    Without indication field
  • Outlet Orientation:
    Straight
  • Surface Finishing:
    Untreated
    Glossy
  • Color:
    white
  • Battery Weight:
    0 g
  • Number of Batteries:
    0
  • Application Function:
    Data Communication / Multimedia

Environmental

  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CHC663076X0201
  • REACH Declaration:
    2CHC663076X0201

Dimensions

  • Built-In Depth (t2):
    40 mm

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000018 - Insert/cover for communication technology
  • ETIM 9:
    EC000018 - Insert/cover for communication technology
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
