Detailed information for: 3BSC950165R30

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads

3BSC950165R30

General Information

  • Product ID:
    3BSC950165R30
  • ABB Type Designation:
    DSTK 222L3
  • Catalog Description:
    DSTK 222L3 Cable Assembly ,Ribbon Cable,
  • Long Description:
    DSTK 222L3 Cable Assembly, Ribbon Cable

Additional Information

  • Medium Description:
    DSTK 222L3 Cable Assembly, Ribbon Cable
  • Product Type:
    Prefabricated_Cable
  • Technical Information:

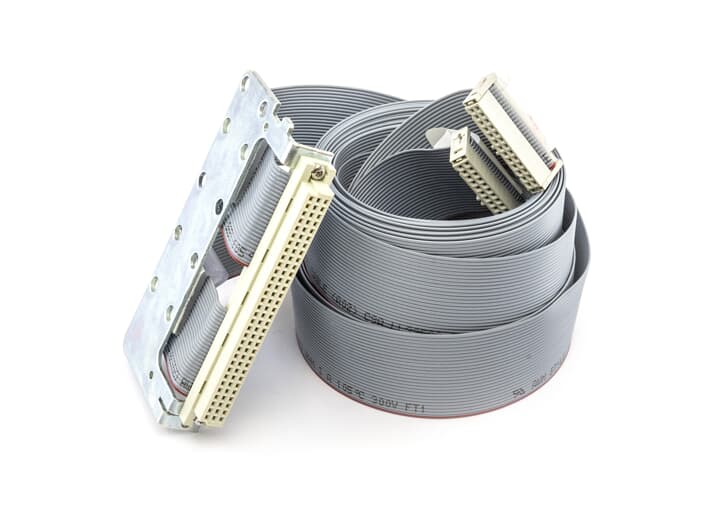

    DSTK 222L3 Cable Assembly Ribbon Cable,
    3 meter Ribbon Cable 26p,
    Connector 64p, Connector 26p

    Note! This part is exempted from the scope of 2011/65/EU (RoHS)
    as provided in Article 2(4)(c), (e), (f) and (j) therein
    (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
    - ABB Advant Master Process Control System)

Ordering

  • HS Code:
    854442-- Insulated (including enamelled or anodised) wire, cable (including co-axial cable) and other insulated electric conductors, whether or not fitted with connectors; optical fibre cables, made up of individually sheathed fibres, whether or not assembled with electric conductors or fitted with connectors.- Other electric conductors, for a voltage not exceeding 1,000 V :-- Fitted with connectors
  • Customs Tariff Number:
    85444290

Dimensions

  • Product Net Weight:
    0.34 kg

Environmental

  • WEEE Category:
    Product Not in WEEE Scope

Where Used (as part of "kit")

Identifier Description Type
3BSE019912R1
DSAI 133K07 Analog Input 32 ch 12 Bit Kit
3BSE019915R1
DSAI 133K08 Analog Input 32 ch 12 Bit, Kit
3BUR002092R1
DSAI 133AK01 Analog Input Kit Kit
3BUR002095R1
DSAI 133K02 Red AI Kit, 32ch, 12bit sing Kit
3BUR002124R1
DSDX 180AK01 DI/DO Kit, 32ch Kit
3BUR002125R1
DSDX 180AK02 Red DI/DO Kit, 32ch Kit
