Detailed information for: IRB 260

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

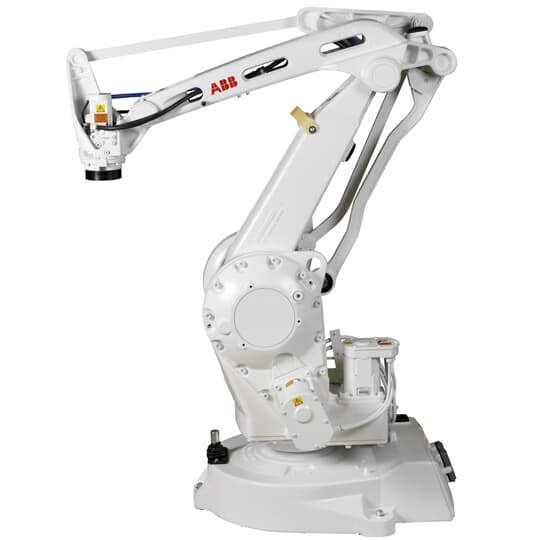

IRB 260

General Information

Global Commercial Alias:

IRB 260
Product ID:

3HAC020536-011
ABB Type Designation:

IRB 260
Catalog Description:

IRB 260
Long Description:

Articulated Robots model IRB 260

Parts & Services

Identifier	Description	Qty	Unit Of Measure
3HAC024001-001	Distance	1	piece
3HAC025729-003	Lower arm	1	piece
3HAC065018-001	DSQC 1050 BRB set	1	piece
11699198-301	Adhesive tape	1	piece
21212852-449	Hex socket counters,head	1	piece
21252052-198	Distance bolt	1	piece
21262851-107	Lock nut	1	piece
21522012-434	O-ring	1	piece
21542033-10	Spring washer	1	piece
21542033-9	Spring washer	1	piece
21662055-1	Cable straps, outdoors	1	piece
21662055-3	Cable straps, outdoors	1	piece
2179090-25	LIFTING EYE	1	piece
25222101-17	Protection hood	1	piece
25222101-8	Protective hood	1	piece
25291920-2	Plug	1	piece
29454489-16	Instruction plate	1	piece
3HAA1001-134	Washer	1	piece
3HAA2103-14	Taper roller bearing	1	piece
3HAA2103-15	Taper roller bearing	1	piece
3HAA2167-12	Spherical roller bearing	1	piece
3HAB3299-1	Cable guide bracket	1	piece
3HAB3333-20	Coupling	1	piece
3HAB3402-37	Hex socket head cap screw	1	piece
3HAB3409-25	Hex socket head cap screw	1	piece
3HAB3409-37	Hex socket head cap screw	1	piece
3HAB3409-50	Hex socket head cap screw M10 x 40	1	piece
3HAB3409-57	Hex socket head cap screw	1	piece
3HAB3409-71	Hex socket head cap screw M12 x 60	1	piece
3HAB3662-1	Spring	1	piece
3HAB3701-25	Sealing ring w. dust lip	1	piece
3HAB3701-33	Radial Seal 35x62x7	1	piece
3HAB3732-13	Sealing ring (V-ring)	1	piece
3HAB3772-16	O-ring	1	piece
3HAB3772-89	O-ring	1	piece
3HAB5512-1	Damper	1	piece
3HAB5522-1	cync. mark. ax.2	1	piece
3HAB5523-1	Locking washer	1	piece
3HAB5527-1	Shaft stub	1	piece
3HAB5921-1	Bracket	1	piece
3HAB5923-1	Bracket	1	piece
3HAB5924-1	Cable guide	1	piece
3HAB6254-1	Sealing ring	1	piece
3HAB6271-1	Lock nut	1	piece
3HAB6279-1	Support washer	1	piece
3HAB6432-1	Adjust. needel bearing	1	piece
3HAB6687-1	Mechanical stop unit ax 1	1	piece
3HAB7160-1	Gasket	1	piece
3HAB7298-1	Stop ax.1	1	piece
3HAB7328-1	Adaptor customer cabling	1	piece
3HAB8284-1	Damper axis 2	1	piece
3HAC020537-001	Washer	1	piece
3HAC022673-001	Ballplug	1	piece
3HAC024115-001	Cable unit axis 6 Packer 260	1	piece
3HAC024194-003	Connection box CS/CP/Air	1	piece
3HAC024253-001	Mechanical stop axis 3	1	piece
3HAC024307-001	Label, Calibration	1	piece
3HAC024592-001	Shaft end	1	piece
3HAC024867-001	Shaft	1	piece
3HAC025034-001	Shaft end	1	piece
3HAC025223-001	CP/CS Connection set	1	piece
3HAC025254-001	Signal lamp	1	piece
3HAC025469-001	Instruction plate	1	piece
3HAC025710-001	Foot white	1	piece
3HAC025711-001	Gear box axis 1-3	1	piece
3HAC025712-001	Motor unit ax 1-3	1	piece
3HAC025713-001	Motor unit axis 2	1	piece
3HAC025714-001	Parallel bar complete	1	piece
3HAC025725-001	CABLE UNIT AXIS 1-3	1	piece
3HAC025727-001	Parallell arm complete 260	1	piece
3HAC025729-001	Lower arm	1	piece
3HAC025729-002	Lower arm	1	piece
3HAC025733-001	Tilthouse, machining	1	piece
3HAC025734-002	Motor incl pinion	1	piece
3HAC025734-004	Motor incl pinion	1	piece
3HAC025735-001	Paralell rod	1	piece
3HAC025736-001	Paralell rod upper	1	piece
3HAC025737-001	Upper arm machining	1	piece
3HAC025740-001	Spacer axis 2	1	piece
3HAC025741-001	Spacer axis 2	1	piece
3HAC025749-001	Cover	1	piece
3HAC025783-001	Cable bracket tilt house	1	piece
3HAC029208-001	Gear axis 6	1	piece
3HAC029208-002	Gear axis 6	1	piece
3HAC032140-004	Lubricating oil TMO 150	1	piece
3HAC037925-001	Magnetic plug, G 1/4"	1	piece
3HAC042471-001	Lubricating oil	1	piece
3HAC042533-001	Profile	1	piece
3HAC042536-001	Bearing grease	1	piece
3HAC042581-001	Flange sealing	1	piece
3HAC044075-001	Battery Unit	1	piece
3HAC044168-001	RMU101	1	piece
3HAC0447-1	Friction washer	1	piece
3HAC0453-2	ABB-Logotype	1	piece
3HAC046277-001	Serial measurement unit	1	piece
3HAC046686-001	SMB Replacement Set	1	piece
3HAC050210-001	Cover Foundry	1	piece
3HAC10088-4	Bearing sealing	1	piece
3HAC10089-2	Bearing sealing	1	piece
3HAC12062-1	Position switch axis 1	1	piece
3HAC12062-2	Position switch axis 1	1	piece
3HAC12062-3	Position switch axis 1	1	piece
3HAC12165-2	VK-Cover	1	piece
3HAC12558-2	Conn.set R1.CP/CS, F.	1	piece
3HAC1589-1	Warning sign	1	piece
3HAC16831-1	Battery pack	1	piece
3HAC2180-1	Damper standard axis 2	1	piece
3HAC2205-1	Spring tension plate	1	piece
3HAC2744-1	Push button guard	1	piece
3HAC2809-1	Cable power adapter	1	piece
3HAC2814-2	Instruction plate	1	piece
3HAC2828-1	Bottomplate	1	piece
3HAC3197-1	Cover puchb.	1	piece
3HAC3200-1	Gasket	1	piece
3HAC3785-3	Parallel pin, hardend	1	piece
3HAC4113-1	SEALING	1	piece
3HAC4419-1	Gasket	1	piece
3HAC4554-1	Gasket	1	piece
3HAC5479-4	SEALING	1	piece
3HAC7181-1	Locking liquid, 5 ml cont	1	piece
3HAC7819-1	Cable SMB	1	piece
3HAC7877-2	Sealing ring	1	piece
3HAC9362-1	Cover Foundry	1	piece
3HEA800897-002	Dust cap, bayonet	1	piece
9ADA183-25	Hex socket head cap screw M6 x 20 ZP	1	piece
9ADA183-34	Hexagon Bolt, M8 x 12mm	1	piece
9ADA290-1	Hexagon nut with flange	1	piece
9ADA312-5	Plain washer, DIN 125	1	piece
9ADA312-6	Plain washer	1	piece
9ADA312-9	Plain washer, DIN 125	1	piece
9ADA618-23	Torx pan head screw	1	piece
9ADA618-32	Torx pan head screw	1	piece
9ADA618-53	Torx pan head screw M6 x 8 ZP	1	piece
9ADA618-57	Torx pan head screw M6 x 20 ZP	1	piece
9ADA624-56	Torx counters. head screw	1	piece
9ADA624-69	Torx counters. head screw M8 x 20 ZP	1	piece
9ADA629-43	Torx pan head roll. screw	1	piece
9ADA629-44	Torx pan head roll. screw	1	piece
9ADA629-56	Torx pan head roll. screw M6 x 16 ZP	1	piece
3HAC023881-001	Turning disc	1	piece

Ordering

Country of Origin:

Sweden (SE)
Invoice Description:

IRB 260
Minimum Order Quantity:

1 piece
Selling Unit of Measure:

piece
Quote Only:

No
Made To Order:

Yes

Classifications

Customs Tariff Number:

84795000
WEEE Category:

4. Large Equipment (Any External Dimension More Than 50 cm)

Dimensions

Product Net Weight:

440 kg
Gross Weight:

440 kg
Product Net Height:

1498 mm

Additional Information

Frame Size:

Undefined
Product Name:

-
ABB Type Designation:

IRB 260
Global Commercial Alias:

IRB 260
