Detailed information for: S2C-BP

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

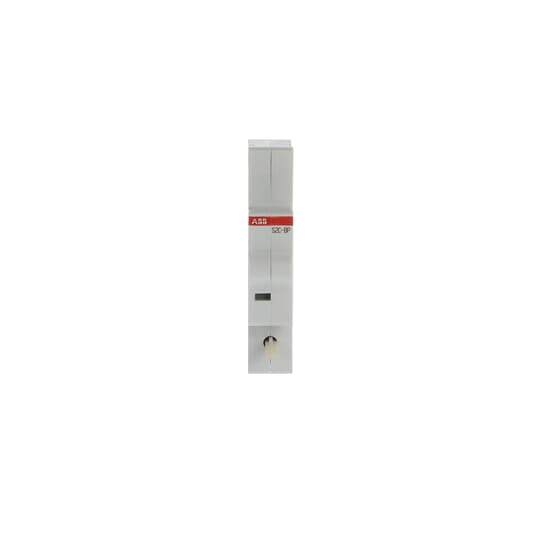

S2C-BP

General Information

  • Extended Product Type:
    S2C-BP
  • Product ID:
    2CSS200998R0001
  • EAN:
    8012542941309
  • Catalog Description:
    S2C-BP Mechanical tripping device
  • Long Description:
    It has the function to cause the automatic tripping of the MCB it is assembled to, when the panel or the door of the electric switchboard is opened or removed. It can be assembled to S200 range MCBs and to DS200 range RCBOs.

Technical

  • Suitable For:
    S200
    S300P
    DS200
  • Suitable for Product Class:
    Miniature Circuit Breakers MCBs
    Residual Current Breakers with Overload Protection RCBo
  • Accessory Type:
    Switching piece
  • Accessories Available:
    Yes

Environmental

Dimensions

  • Product Net Width:
    0.018 m
  • Product Net Height:
    0.085 m
  • Product Net Depth / Length:
    0.068 m
  • Product Net Weight:
    0.280 kg

Ordering

  • Package Level 1 Units:
    blister 1 piece
  • Package Level 1 Gross Weight:
    0.295 kg

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC002498 - Accessories/spare parts for low-voltage switch technology
  • ETIM 9:
    EC002498 - Accessories/spare parts for low-voltage switch technology
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85389099
  • eClass:
    V11.0 : 27371390
  • Object Classification Code:
    Q
