TS1-M3-K

General Information

  • Extended Product Type:
    TS1-M3-K
  • Product ID:
    1SAM301913R1001
  • EAN:
    4013614556616
  • Catalog Description:
    TS1-M3-K Terminal Spacer
  • Long Description:
    MS132-K Manual Motor Starters with Push-in Spring terminals are approved as Self-Protected Combination Motor Controllers (Type E) acc. to UL60947-4-1. For this air clearance and creepage distances on the line side of MS132 must be increased, which can be achieved by mounting TS1-K terminal spacers.

Categories

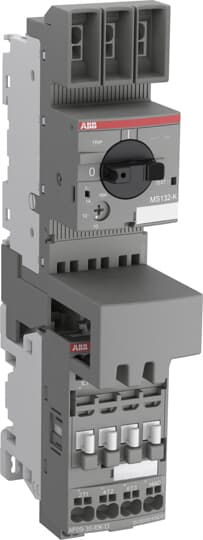

  • TS1-M3-K - image 0
  • TS1-M3-K - image 1
  • TS1-M3-K - image 2

Ordering

  • Minimum Order Quantity:
    2 piece
  • Customs Tariff Number:
    85389099

Popular Downloads

Dimensions

  • Product Net Width:
    44 mm
  • Product Net Height:
    46 mm
  • Product Net Depth / Length:
    30 mm
  • Product Net Weight:
    0.012 kg

Technical

  • Product Name:
    Terminal Spacer
  • Suitable For:
    MS132-K
  • Suitable for Product Class:
    Manual Motor Starter
  • Accessory Group:
    Mechanical
  • Accessory Type:
    Terminal Spacer

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Width:
    55 mm
  • Package Level 1 Depth / Length:
    70 mm
  • Package Level 1 Height:
    35 mm
  • Package Level 1 Gross Weight:
    0.03 kg
  • Package Level 1 EAN:
    4013614556623
  • Package Level 1 Units:
    box 2 piece

Classifications

  • Object Classification Code:
    U
  • ETIM 5:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 6:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 7:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 8:
    EC002498 - Accessories/spare parts for low-voltage switch technology
  • eClass:
    V11.0 : 27371392
  • UNSPSC:
    39121521
