Detailed information for: TF96-68

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online
Related Links

TF96-68

General Information

  • Extended Product Type:
    TF96-68
  • Product ID:
    1SAZ911201R1003
  • EAN:
    4013614483004
  • Catalog Description:
    TF96-68 Thermal Overload Relay 57 ... 68 A
  • Long Description:
    The TF96-68 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.

Categories

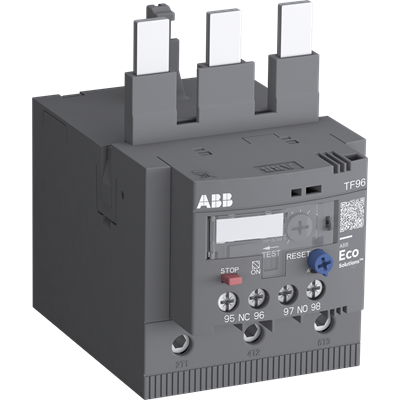

  • TF96-68 - image 0
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
1SAZ901901R1001
 DB96 Single Mounting Kit DB96 1 piece
1SAX101911R1001
 DRS-F-01 Remote Reset Coil DRS-F-01 1 piece
1SAX101911R1002
 DRS-F-02 Remote Reset Coil DRS-F-02 1 piece
1SAX101911R1003
 DRS-F-03 Remote Reset Coil DRS-F-03 1 piece
1SAX101911R1004
 DRS-F-04 Remote Reset Coil DRS-F-04 1 piece
1SAZ701904R1001
 DRS-F-TF-01 Remote Coil DRS-F-TF-01 1 piece
1SAZ701904R1002
 DRS-F-TF-02 Remote Coil DRS-F-TF-02 1 piece
1SAZ701904R1003
 DRS-F-TF-03 Remote Coil DRS-F-TF-03 1 piece
1SAZ701904R1004
 DRS-F-TF-04 Remote Coil DRS-F-TF-04 1 piece
1SAZ701903R1001
 WRH-F Holder WRH-F 1 piece
1SAZ701903R1011
 WRB-400 Bowden Wire WRB-400 1 piece
1SAZ701903R1012
 WRB-600 Bowden Wire WRB-600 1 piece
1SAZ701903R1013
 WRB-1000 Bowden Wire WRB-1000 1 piece
1SAZ701903R1030
 WRBG Gasket WRBG 1 piece
1SFA616162R1014
 KPR3-101L Reset push button KPR-101L 1 piece

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85364900

Popular Downloads

Dimensions

  • Product Net Width:
    69.9 mm
  • Product Net Height:
    106.9 mm
  • Product Net Depth / Length:
    106.3 mm
  • Product Net Weight:
    0.52 kg

Technical

  • Setting Range:
    57 ... 68 A
  • Rated Operational Voltage:
    Auxiliary Circuit 600 V AC/DC
    Main Circuit 690 V AC
    Main Circuit 440 V DC
  • Rated Operational Current (Ie):
    68 A
  • Rated Frequency (f):
    Auxiliary Circuit 50 Hz
    Auxiliary Circuit 60 Hz
    Auxiliary Circuit DC
    Main Circuit 50 Hz
    Main Circuit 60 Hz
  • Rated Impulse Withstand Voltage (Uimp):
    Auxiliary Circuit 6 kV
    Main Circuit 8 kV
  • Rated Insulation Voltage (Ui):
    690 V
  • Number of Poles:
    3
  • Number of Auxiliary Contacts NC:
    1
  • Number of Auxiliary Contacts NO:
    1
  • Number of Protected Poles:
    3
  • Conventional Free-air Thermal Current (Ith):
    Auxiliary Circuit NC 6 A
    Auxiliary Circuit NO 4 A
  • Rated Operational Current AC-15 (Ie):
    (120 V) NC 3 A
    (120 V) NO 0.5 A
    (240 V) NC 3 A
    (240 V) NO 0.5 A
    (400 V) NC 0.75 A
    (400 V) NO 0.5 A
    (500 V) NC 0.75 A
    (500 V) NO 0.5 A
  • Rated Operational Current DC-13 (Ie):
    (125 V) NC 0.55 A
    (125 V) NO 0.55 A
    (24 V) NC 1.25 A
    (24 V) NO 1.25 A
    (250 V) NC 0.27 A
    (250 V) NO 0.27 A
    (500 V) NC 0.15 A
    (500 V) NO 0.15 A
    (60 V) NC 0.55 A
    (60 V) NO 0.55 A
  • Degree of Protection:
    Housing IP20
    Main Circuit Terminals IP10
  • Pollution Degree:
    3
  • Connecting Capacity Auxiliary Circuit:
    Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
    Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
    Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
    Flexible 1/2x 0.75 ... 1 mm²
    Flexible 1/2x 1 ... 2.5 mm²
    Rigid 1/2x 0.75 ... 4 mm²
  • Connecting Capacity Main Circuit:
    Flexible with Ferrule 1/2x 6 ... 35 mm²
    Flexible with Ferrule 1x 6 ... 50 mm²
    Flexible with Insulated Ferrule 1/2x 6 ... 16 mm²
    Flexible with Insulated Ferrule 1x 6 ... 50 mm²
    Flexible 1/2x 6 ... 35 mm²
    Flexible 1x 6 ... 50 mm²
    Rigid 1/2x 6 ... 35 mm²
    Rigid 1x 6 ... 50 mm²
  • Tightening Torque:
    Auxiliary Circuit 1 ... 1.2 N·m
    Main Circuit 6.0 ... 9.0 N·m
  • Wire Stripping Length:
    Auxiliary Circuit 9 mm
    Main Circuit 20 mm
  • Recommended Screw Driver:
    Auxiliary Circuit Pozidriv 2
    Main Circuit Hexagon 4
  • Mounting Position:
    1 ... 6
  • Power Loss:
    at Rated Operating Conditions per Pole 3.2 ... 4.6 W
  • Suitable For:
    AF80
    AF96
  • Standards:
    IEC/EN 60947-1
    IEC/EN 60947-4-1
    IEC/EN 60947-5-1
    UL 60947-1
    UL 60947-4-1

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA:
    Main Circuit 600 V AC
  • Contact Rating UL/CSA:
    (NC:) B600
    (NC:) Q600
    (NO:) Q600
    (NO:) D300
  • Connecting Capacity Main Circuit UL/CSA:
    Flexible 1x 8-1 AWG
    Flexible 2x 8-3 AWG
    Stranded 1x 8-1 AWG
    Stranded 2x 8-3 AWG
  • Connecting Capacity Auxiliary Circuit UL/CSA:
    Flexible 1/2x 18-12 AWG
    Stranded 1/2x 18-12 AWG
  • Tightening Torque UL/CSA:
    Auxiliary Circuit 9 ... 11 in·lb
    Main Circuit 53 ... 80 in·lb

Environmental

  • Ambient Air Temperature:
    Operation -40 ... +70 °C
    Operation Compensated -40 ... +70 °C
    Storage -50 ... +80 °C
  • Ambient Air Temperature Compensation:
    Yes
  • Maximum Operating Altitude Permissible:
    2000 m
  • Resistance to Shock acc. to IEC 60068-2-27:
    11 ms Pulse 25g
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    5g / 3 ... 150 Hz
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    97 mm
  • Package Level 1 Height:
    121 mm
  • Package Level 1 Depth / Length:
    97 mm
  • Package Level 1 Gross Weight:
    0.62 kg
  • Package Level 1 EAN:
    4013614483004
  • Package Level 2 Units:
    12 piece
  • Package Level 2 Width:
    280 mm
  • Package Level 2 Height:
    210 mm
  • Package Level 2 Depth / Length:
    395 mm
  • Package Level 2 Gross Weight:
    7.826 kg
  • Package Level 2 EAN:
    4013614485442

Classifications

  • Object Classification Code:
    F
  • ETIM 4:
    EC000106 - Thermal overload relay
  • ETIM 5:
    EC000106 - Thermal overload relay
  • ETIM 6:
    EC000106 - Thermal overload relay
  • ETIM 7:
    EC000106 - Thermal overload relay
  • ETIM 8:
    EC000106 - Thermal overload relay
  • eClass:
    V11.0 : 27371501
  • UNSPSC:
    39122330
  • IDEA Granular Category Code (IGCC):
    5366 >> Thermal overload relay
  • E-Number (Finland):
    3706592
  • E-Number (Sweden):
    3210272
