Detailed information for: S401M-UCC0.5

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online
Related Links

S401M-UCC0.5

General Information

  • Extended Product Type:
    S401M-UCC0.5
  • Product ID:
    2CCS561001R1984
  • EAN:
    7612270109746
  • Catalog Description:
    S401M-UCC0.5 Miniature Circuit Breaker
  • Long Description:
    The miniature circuit breaker S400M UC extends the established
    SMISSLINE TP product range with an MCB for DC and AC applications. The S400M UC impresses with its performance range. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application. MCBs of the product range S400M UC are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications. It is also the perfect fit for any application where costly downtime must be avoided.

Categories

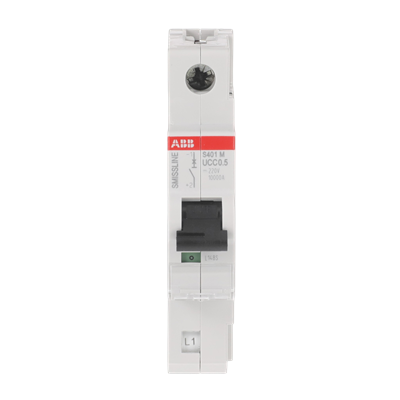

  • S401M-UCC0.5 - image 0
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
2CCS500900R0081
 HK40011-L Auxiliary swtich HK40011-L 1 piece
2CCS500900R0214
 HK40011-R Auxiliary swtich HK40011-R 1 piece
2CCF201112R0001
 HK40020-L Auxiliary swtich HK40020-L 1 piece
2CCF201114R0001
 HK40002-L Auxiliary swtich HK40002-L 1 piece
2CCF201113R0001
 HK40020-R Auxiliary swtich HK40020-R 1 piece
2CCF201115R0001
 HK40002-R Auxiliary swtich HK40002-R 1 piece
2CCS500900R0101
 SK40011-L Signal contact SK40011-L 1 piece
2CCS500900R0215
 SK40011-R Signal contact SK40011-R 1 piece
2CCF201162R0001
 SK40020-L Signal contact SK40020-L 1 piece
2CCF201164R0001
 SK40002-L Signal contact SK40002-L 1 piece
2CCF201163R0001
 SK40020-R Signal contact SK40020-R 1 piece
2CCF201165R0001
 SK40002-R Signal contact SK40002-R 1 piece
2CCS500900R0141
 SK40010-LSA Signal contact SK40010-LSA 1 piece
2CCF201212R0001
 HK400 10-L SA Auxiliary swtich HK40010-LSA 1 piece
2CCS500900R0216
 SK40010-RSA Signal contact SK40010-RSA 1 piece
2CCF201213R0001
 HK400 10-R SA Auxiliary swtich HK40010-RSA 1 piece
2CCS500900R0161
 ZLS931 Spare parts ZLS931 1 piece
2CCA880212R0001
 CMS-122PS Sensor CMS-122PS 1 piece
2CCA880102R0001
 CMS-102PS Sensor CMS-102PS 1 piece

Technical

  • Standards:
    IEC/EN 60947-2
  • Tripping Characteristic:
    UC-C
  • Rated Operational Voltage:
    acc. to IEC 60898-1 230 V
  • Rated Insulation Voltage (Ui):
    acc. to IEC/EN 60664-1 440 V
  • Rated Impulse Withstand Voltage (Uimp):
    4 kV
  • Input Voltage Type:
    AC/DC
  • Rated Current (In):
    0.5 A
  • Rated Operational Current (Ie):
    0.5 A
  • Rated Short-Circuit Capacity:
    (230 V) 10 kA
    (400 V) 10 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (230 V) 25 kA
    (400 V) 25 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (220 V DC) 10 kA
    (110 V DC) 10 kA
  • Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
    50 %
  • Frequency (f):
    50 ... 60 Hz
  • Rated Frequency (f):
    50 ... 60 Hz
  • Power Loss:
    2 W
  • Power Supply Connection:
    Arbitrary
  • Contact Position Indication:
    Red ON / Green OFF
  • Energy Limiting Class:
    3
  • Electrical Endurance:
    10000 cycle
  • Mechanical Endurance:
    10000 cycle
  • Number of Protected Poles:
    1
  • Number of Poles:
    1
  • Overvoltage Category:
    III
  • Tightening Torque:
    2.8 N·m
  • Trip Class:
    UC-C
  • Release Type:
    C
  • Screw Terminal Type:
    Failsafe Bi-directional Cylinder-lift Terminal
  • Actuator Marking:
    I / O
  • Mounting Position:
    Any
  • Recommended Screw Driver:
    Pozidriv 2
  • Accessories Available:
    Yes
  • Connecting Capacity:
    Flexible 0.75 … 25 mm²
    Rigid 0.75 … 35 mm²
  • Terminal Type:
    Screw Terminals

Environmental

  • Ambient Air Temperature:
    Operation -25 … 60 °C
  • Reference Ambient Air Temperature:
    30 °C
  • Degree of Protection:
    IP20
  • Pollution Degree:
    2
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2…13.2 Hz/1 mm
    13.2…100Hz/0.7 g, 5 cycles
    5…150 … 5 Hz/1 g, 4 waves
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information:
    9AKK107991A9644
  • Environmental Information:
    9AKK108467A9561
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Width in Number of Modular Spacings:
    1
  • Product Net Width:
    18 mm
  • Product Net Height:
    91 mm
  • Product Net Depth / Length:
    75 mm
  • Product Net Weight:
    145 g
  • Size:
    1 module
  • Built-In Depth (t2):
    91 mm
  • Dimension Diagram:
    9AKK107492A6192

Ordering

  • Package Level 1 Units:
    carton 10 piece
  • Package Level 1 Gross Weight:
    1514 g
  • E-Number (Switzerland):
    809507107

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 9:
    EC000042 - Miniature circuit breaker (MCB)
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    85363020
  • eClass:
    V11.0 : 27141901
  • Object Classification Code:
    FC
