JA/S4.SMI.1M

General Information

  • Extended Product Type:
    JA/S4.SMI.1M
  • Product ID:
    2CDG110028R0011
  • EAN:
    4016779654234
  • Catalog Description:

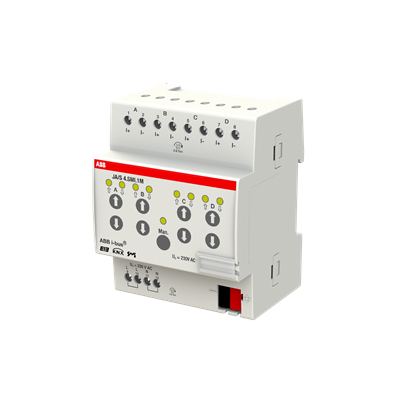

    JA/S4.SMI.1M SMI Shutter Actuator, 4-fold, Manual Operation, MDRC
  • Long Description:
    It controls four independent groups (broadcast) with up to four SMI (Standard Motor Interface) drives (230 V) for positioning blinds, roller shutters, awnings and other shading products. Status signals (motor fault, direction of movement) can also be sent from the SMI drive on thebus. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.

Categories

  • JA/S4.SMI.1M - image 0
  • JA/S4.SMI.1M - image 1
  • JA/S4.SMI.1M - image 2

Installation

Technical

  • Data Sheet, Technical Information:
    2CDC506035D0201
    2CDC506037D0201
  • Current Type:
    AC
  • Auxiliary Voltage AC/DC:
    230 V AC
  • Power Loss:
    2 W
  • Number of Outputs:
    4
  • Number of LEDs:
    1
  • Number of Input Channels:
    0
  • Compatible Bus Systems:
    KNX (TP)
    SMI
  • Product Range:
    KNX
  • Mounting Type:
    DIN-Rail
  • Manual Operation:
    Yes
  • Color:
    light grey
  • Number of Batteries:
    0
  • Application Function:
    Blind / Shutter / Shading Control

Environmental

Dimensions

  • Width in Number of Modular Spacings:
    4
  • Product Net Width:
    72 mm
  • Product Net Height:
    90 mm
  • Product Net Depth / Length:
    64.5 mm
  • Product Net Weight:
    0.218 kg
  • Built-In Depth (t2):
    64.5 mm
  • Dimension Diagram:
    2CDC072033F0015

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001330 - Shutting actuator for bus system
  • ETIM 9:
    EC001330 - Shutting actuator for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8537 10 91
  • eClass:
    V11.0 : 27143128
  • Object Classification Code:
    A
