Detailed information for: SV/S 30.160.1.1

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

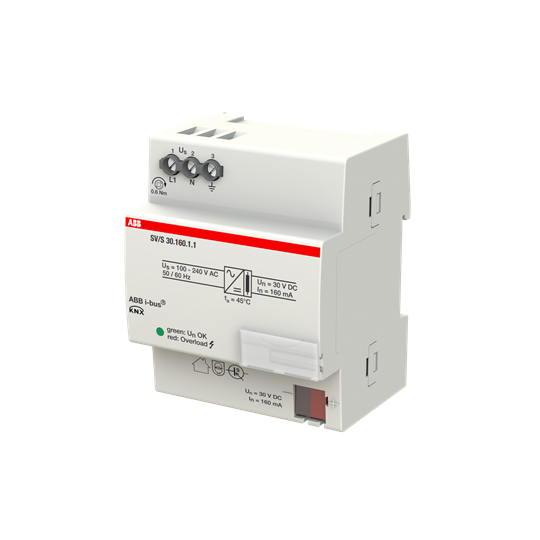

SV/S 30.160.1.1

General Information

  • Extended Product Type:
    SV/S 30.160.1.1
  • Product ID:
    2CDG110144R0011
  • EAN:
    4016779866668
  • Catalog Description:
    SV/S30.160.1.1 Power Supply, 160 mA, MDRC
  • Long Description:
    KNX power supplies 160 mA generate and monitor the KNX system voltage (SELV). The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuit and overload protected. The two-color LED indicates device output status. With two-coloured status indicator and wide range input from 85…265 V AC, 50/60 Hz.

Ordering

  • EAN:
    4016779866668
  • Customs Tariff Number:
    85044090
  • Minimum Order Quantity:
    1 piece
  • E-Number (Switzerland):
    405800415
  • E-Number (Finland):
    2815461
  • E-Number (Sweden):
    1738576

Dimensions

  • Product Net Depth / Length:
    64.5 mm
  • Product Net Height:
    90 mm
  • Product Net Width:
    72 mm
  • Product Net Weight:
    0.26 kg

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 EAN:
    4016779866668
  • Package Level 1 Depth / Length:
    77 mm
  • Package Level 1 Height:
    65 mm
  • Package Level 1 Width:
    93 mm
  • Package Level 1 Gross Weight:
    0.3 kg

Technical

  • Compatible Bus Systems:
    KNX (TP)
  • Degree of Protection:
    IP20
  • Mounting Type:
    DIN-Rail
  • Width in Number of Modular Spacings:
    4

Certificates and Declarations (Document Number)

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU

Classifications

  • ETIM 7:
    EC000675 - Power supply for bus system
  • ETIM 8:
    EC000675 - Power supply for bus system
  • eClass:
    V11.0 : 27143114
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • UNSPSC:
    39121004
  • IDEA Granular Category Code (IGCC):
    4127 >> Power supply units
