SAH/S8.16.7.1

General Information

  • Extended Product Type:
    SAH/S8.16.7.1
  • Product ID:
    2CDG110250R0011
  • EAN:
    4016779066846
  • Catalog Description:

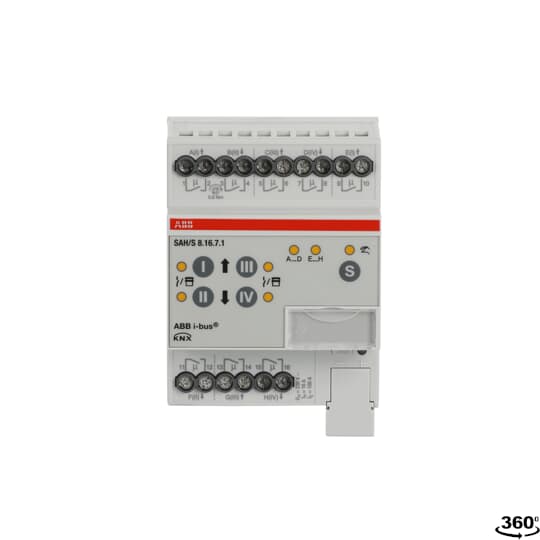

    SAH/S8.16.7.1 Switch/Shutter Actuator, 8-fold, 16 A, MDRC
  • Long Description:
    The compact 16 A combi switch actuator has 8 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.

Ordering

  • EAN:
    4016779066846
  • Customs Tariff Number:
    85371091
  • Minimum Order Quantity:
    1 piece
  • E-Number (Switzerland):
    405 865 085
  • E-Number (Finland):
    2814685
  • E-Number (Sweden):
    1739888

Dimensions

  • Product Net Depth / Length:
    63.5 mm
  • Product Net Height:
    90 mm
  • Product Net Width:
    70 mm
  • Product Net Weight:
    0.272 kg

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 EAN:
    4016779066846
  • Package Level 1 Depth / Length:
    126 mm
  • Package Level 1 Height:
    96 mm
  • Package Level 1 Width:
    120 mm
  • Package Level 1 Gross Weight:
    0.349 kg

Technical

  • Compatible Bus Systems:
    KNX (TP)
  • Degree of Protection:
    IP20
  • Mounting Type:
    DIN-rail
  • Width in Number of Modular Spacings:
    4

Certificates and Declarations (Document Number)

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU

Classifications

  • ETIM 7:
    EC001097 - Switch actuator for bus system
  • ETIM 8:
    EC001097 - Switch actuator for bus system
  • eClass:
    V11.0 : 27143125
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • UNSPSC:
    31251516
  • IDEA Granular Category Code (IGCC):
    3268 >> Switch actuator
