Detailed information for: HS/S 4.2.1

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

HS/S 4.2.1

General Information

  • Extended Product Type:
    HS/S 4.2.1
  • Product ID:
    2CDG120044R0011
  • EAN:
    4016779906722
  • Catalog Description:

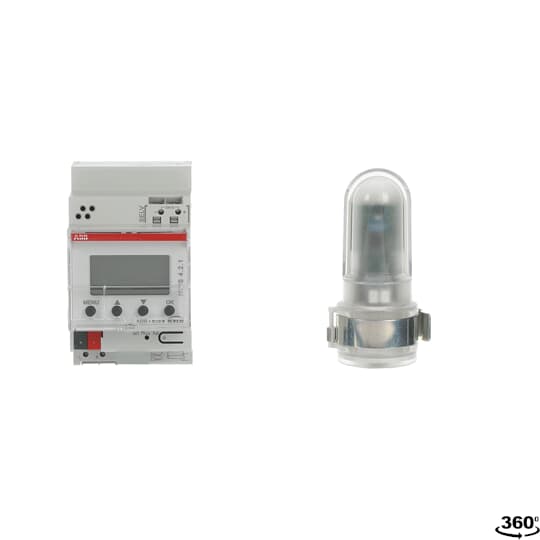

    HS/S4.2.1 Outside Light Sensor Interface, MDRC
  • Long Description:
    The device can be used as a twilight switch (1 ... 100 lux) or as a light value switch (100 ... 20.000 lux). One Outside Light Sensor LFO/A 1.1 is supplied with the device.

Categories

  • HS/S 4.2.1 - image 0
  • HS/S 4.2.1 - image 1
  • HS/S 4.2.1 - image 2
  • HS/S 4.2.1 - image 3

Installation

Technical

  • Data Sheet, Technical Information:
    2CDC507131D0202
  • Auxiliary Voltage AC/DC:
    KNX
  • Power Loss:
    1 W
  • Number of LEDs:
    0
  • Number of Channels:
    10
  • Compatible Bus Systems:
    KNX (TP)
  • Product Range:
    KNX
  • Mounting Type:
    DIN-Rail
  • Manual Operation:
    Yes
  • Illuminance:
    1 ... 100000 lx
  • Color:
    light grey
  • Number of Batteries:
    0
  • Screen Size:
    2 in
  • Application Function:
    Electrical Load and Light Control

Environmental

Dimensions

  • Width in Number of Modular Spacings:
    3
  • Product Net Width:
    53 mm
  • Product Net Height:
    90 mm
  • Product Net Depth / Length:
    70 mm
  • Product Net Weight:
    0.187 kg
  • Dimension Diagram:
    2CDC072023F0019

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000927 - Brightness sensor for bus system
  • ETIM 9:
    EC000927 - Brightness sensor for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8538 90 91
  • eClass:
    V11.0 : 27143111
  • Object Classification Code:
    A
