Detailed information for: MG/S11.100.1.1

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

MG/S11.100.1.1

General Information

  • Extended Product Type:
    MG/S11.100.1.1
  • Product ID:
    2CDG120089R0011
  • EAN:
    4013614571084
  • Catalog Description:
    MG/S11.100.1.1 Modbus RTU-KNX TP Gateway, 100 Points, MDRC
  • Long Description:
    The Modbus KNX Gateway integrates Modbus RTU servers devices with KNX installations at field level. The devices support standard KNX data points (DPT) and up to 100 Modbus data points. The device is put into operation with the ETS. An optional, free-of-charge ETS-App (DCA) is available to facilitate the configuration, allowing to export, and import Modbus-KNX mapping in the form of templates. Modbus templates are available for download from a database. Auxiliary voltage is not required.

Categories

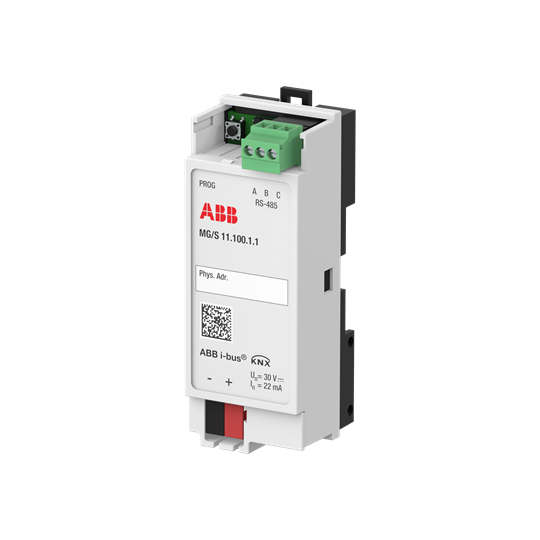

  • MG/S11.100.1.1 - image 0

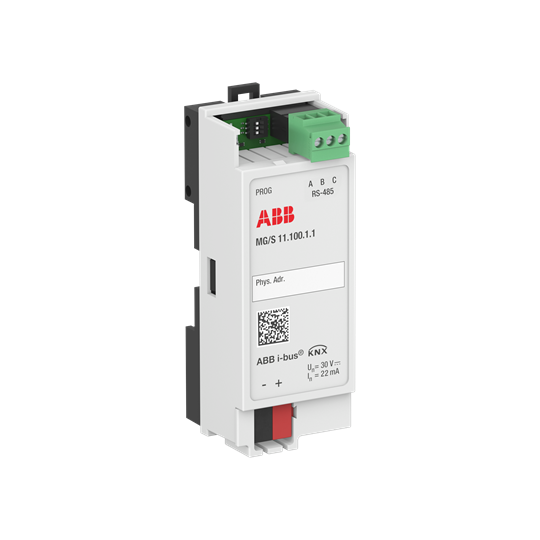

  • MG/S11.100.1.1 - image 1
  • MG/S11.100.1.1 - image 2

Installation

Technical

  • Data Sheet, Technical Information:
    9AKK108467A8179
  • Power Loss:
    3 W
  • Number of LEDs:
    2
  • Number of Digital Inputs:
    0
  • Compatible Bus Systems:
    Modbus
    KNX (TP)
  • Product Range:
    KNX
  • Mounting Type:
    DIN-Rail
  • Software Updateable:
    Yes
  • Integrated Webserver:
    No
  • Manual Operation:
    No
  • Mounting Position:
    any
  • Color:
    light grey
  • Number of Batteries:
    0
  • Application Function:
    Building Management

Environmental

Dimensions

  • Width in Number of Modular Spacings:
    2
  • Product Net Width:
    92 mm
  • Product Net Height:
    32 mm
  • Product Net Depth / Length:
    36 mm
  • Product Net Weight:
    0.048 kg

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001099 - System interface/media gateway for bus system
  • ETIM 9:
    EC001099 - System interface/media gateway for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8517 62 00
  • UNSPSC:
    43222605
  • eClass:
    V11.0 : 27143136
  • IDEA Granular Category Code (IGCC):
    6809 >> System interface/media gateway for bus system
