BA-M-0.4.1

General Information

  • Extended Product Type:
    BA-M-0.4.1
  • Product ID:
    2CDG510011R0011
  • EAN:
    4016779941785
  • Catalog Description:

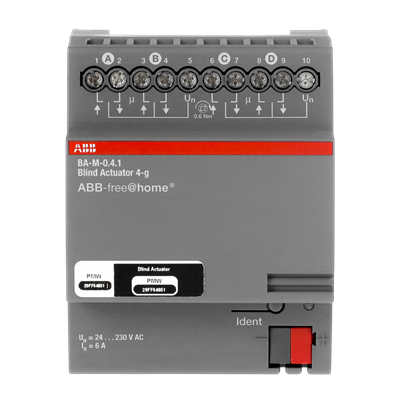

    BA-M-0.4.1 Blind Actuator, 4-fold, 230 V, MDRC
  • Long Description:
    For controlling 4 independent blind or roller shutter drives. The outputs are inversely blocked. The bus can be connected via enclosed terminal block.

Ordering

  • EAN:
    4016779941785
  • Customs Tariff Number:
    85371091
  • Minimum Order Quantity:
    1 piece
  • E-Number (Finland):
    2815523
  • E-Number (Sweden):
    1701113

Dimensions

  • Product Net Depth / Length:
    95 mm
  • Product Net Height:
    70 mm
  • Product Net Width:
    80 mm
  • Product Net Weight:
    0.22 kg

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 EAN:
    4016779941785
  • Package Level 1 Depth / Length:
    77 mm
  • Package Level 1 Height:
    65.5 mm
  • Package Level 1 Width:
    92 mm
  • Package Level 1 Gross Weight:
    0.25 kg

Technical

  • Compatible Bus Systems:
    free@home
  • Degree of Protection:
    IP20
  • Mounting Type:
    DIN-rail
  • Width in Number of Modular Spacings:
    4

Certificates and Declarations (Document Number)

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU

Classifications

  • ETIM 7:
    EC001330 - Shutting actuator for bus system
  • ETIM 8:
    EC001330 - Shutting actuator for bus system
  • eClass:
    V11.0 : 27143128
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
