Detailed information for: 5522H-C03457 01W

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

5522H-C03457 01W

General Information

  • Extended Product Type:
    5522H-C03457 01W
  • Product ID:
    2CHH223457C6001
  • Catalog Description:

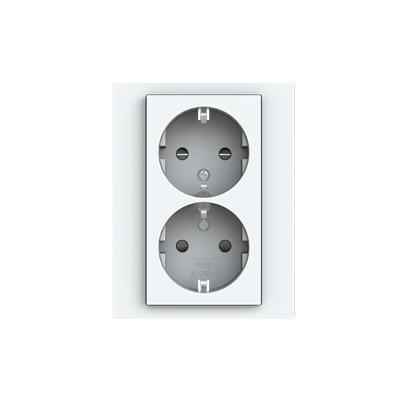

    5522H-C03457 01W Double schuko socket, shuttered
  • Long Description:
    Double schuko socket, shuttered

Ordering

  • Customs Tariff Number:
    85366990
  • Minimum Order Quantity:
    1 piece

Dimensions

  • Product Net Depth / Length:
    52 mm
  • Product Net Height:
    106 mm
  • Product Net Width:
    82 mm
  • Product Net Weight:
    0.1413 kg

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 EAN:
    8592624112174
  • Package Level 1 Depth / Length:
    195 mm
  • Package Level 1 Height:
    393 mm
  • Package Level 1 Width:
    195 mm
  • Package Level 1 Gross Weight:
    0.1584 kg

Technical

  • Degree of Protection:
    IP40
  • Mounting Type:
    Flush mounted (plaster)

Certificates and Declarations (Document Number)

Classifications

  • ETIM 7:
    EC000125 - Socket outlet
  • ETIM 8:
    EC000125 - Socket outlet
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
