Detailed information for: 2513-93-507

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

2513-93-507

General Information

  • Extended Product Type:
    2513-93-507
  • Product ID:
    2CKA001725A1503
  • EAN:
    4011395160350
  • Catalog Description:

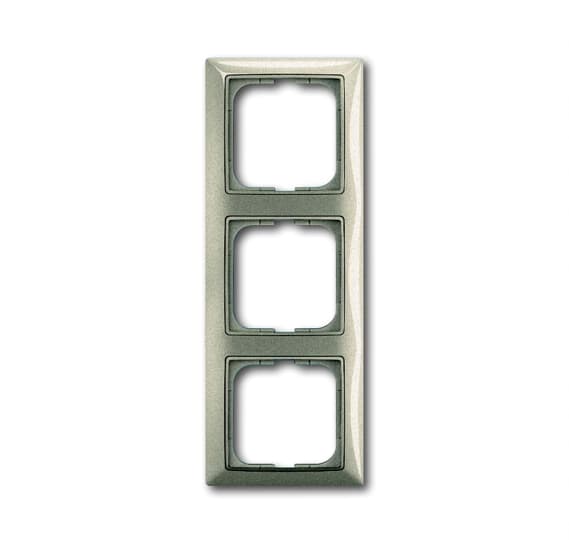

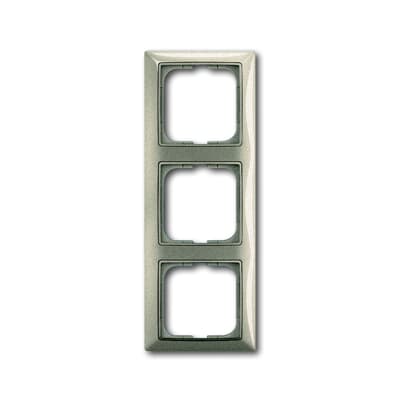

    Cover Frame 3gang champagne - Basic55
  • Long Description:
    For vertical or horizontal installation.

Accessories

Identifier Description Type Qty Unit Of Measure
2CKA001726A0229
Data / Telecommunication / Antenna Telecommunication inserts 0 gang champagne - Basic55 1746-93-507 1 piece
2CKA001753A0202
Light & Signalization champagne - Basic55 1756-93-507 1 piece
2CKA001710A3929
Mechanical Controls Card for Switch/push button, Hotel card Hotel card champagne - Basic55 1792-93-507 1 piece
2CKA001710A3930
Electronic Controls Turn button champagne - Basic55 1794-93-507 1 piece
2CKA001710A3931
Electronic Controls for Thermostat Turn button other - Basic55 1795-93-507 1 piece
2CKA001710A3941
Data / Telecommunication / Antenna Modular Jack 2 gang champagne - Basic55 1800-93-507 1 piece
2CKA001753A0203
Data / Telecommunication / Antenna UAE/IAE (ISDN) 2 gang champagne - Basic55 1803-02-93-507 1 piece
2CKA001753A0204
Data / Telecommunication / Antenna UAE/IAE (ISDN) 1 gang champagne - Basic55 1803-93-507 1 piece
2CKA002011A6140
Socket Outlets champagne - Basic55 20 EUC-93-507 1 piece
2CKA002013A5337
Socket Outlets champagne - Basic55 20 EUCKS-93-507 1 piece
2CKA002018A1498
Socket Outlets with Hinged Lid champagne - Basic55 20 EUK-93-507 1 piece
2CKA002111A0653
Socket Outlets with Hinged Lid champagne - Basic55 20 EUKB-93-507 1 piece
2CKA002017A0867
Socket Outlets French norm NF champagne - Basic55 20 MUC-93-507 1 piece
2CKA006599A2990
Electronic Controls for Dimmer Turn button champagne - Basic55 2115-93-507 1 piece
2CKA002099A0259
Socket Outlets champagne - Basic55 2399 UCKS-93-507 1 piece
2CKA001710A3932
Cable Outlet / Blank Plate / Adapter Ring Cable outlet 0 gang champagne - Basic55 2527-93-507 1 piece
2CKA001715A0314
Cable Outlet / Blank Plate / Adapter Ring Blind cap 0 gang champagne - Basic55 2538-93-507 1 piece
2CKA001724A4312
Data / Telecommunication / Antenna TAE 0 gang champagne - Basic55 2539-93-507 1 piece
2CKA001753A0212
Data / Telecommunication / Antenna Modular Jack 2 gang champagne - Basic55 2561-93-507 1 piece
2CKA006430A0392
Electronic Controls for Time switch champagne - Basic55 6435-93-507 1 piece
2CKA006599A2993
Electronic Controls for Switch/dimmer Single push button champagne - Basic55 6543-93-507 1 piece
2CKA008200A0158
Multimedia Devices Loudspeaker champagne - Basic55 8253-93-507 1 piece
2CKA001726A0222
Decorative Styling Frame attica / pigeon blue - Basic55 2516-901-507 1 piece
2CKA001726A0223
Decorative Styling Frame silver metallic - Basic55 2516-902-507 1 piece
2CKA001726A0224
Decorative Styling Frame light green - Basic55 2516-903-507 1 piece
2CKA001726A0225
Decorative Styling Frame orange - Basic55 2516-904-507 1 piece
2CKA001726A0226
Decorative Styling Frame yellow - Basic55 2516-905-507 1 piece
2CKA001726A0227
Decorative Styling Frame apricot - Basic55 2516-906-507 1 piece
2CKA001726A0228
Decorative Styling Frame luminous - Basic55 2516-907-507 1 piece
2CKA001726A0220
Decorative Styling Frame white - Basic55 2516-92-507 1 piece
2CKA001726A0230
Decorative Styling Frame champagne - Basic55 2516-93-507 1 piece
2CKA001726A0218
Decorative Styling Frame alpine white - Basic55 2516-94-507 1 piece
2CKA001726A0232
Decorative Styling Frame château-black - Basic55 2516-95-507 1 piece
2CKA001726A0234
Decorative Styling Frame chalet white - Basic55 2516-96-507 1 piece

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Number of Gangs:
    3
  • Design Range:
    Basic55
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Clamp
  • Mounting Orientation:
    Horizontal
    Vertical
  • Surface Finishing:
    Glossy
    Lacquered
  • Material:
    Thermoplastic
  • Label Space Provided:
    No
  • Color:
    champagne
  • Battery Weight:
    0 g

Environmental

  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E1468
  • REACH Declaration:
    2CKA309999E9999
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    84 mm
  • Product Net Height:
    225 mm
  • Product Net Depth / Length:
    12 mm
  • Product Net Weight:
    51 g

Ordering

  • Replaced Product ID (OLD):
    1725-0-1503

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000007 - Cover frame for domestic switching devices
  • ETIM 9:
    EC000007 - Cover frame for domestic switching devices
  • WEEE Category:
    Product Not in WEEE Scope
  • CN8:
    8538 90 99
  • eClass:
    V11.0 : 27144001
