Detailed information for: 1803-02-215

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

1803-02-215

General Information

Extended Product Type:

1803-02-215
Product ID:

2CKA001753A9111
EAN:

4011395791905
Catalog Description:

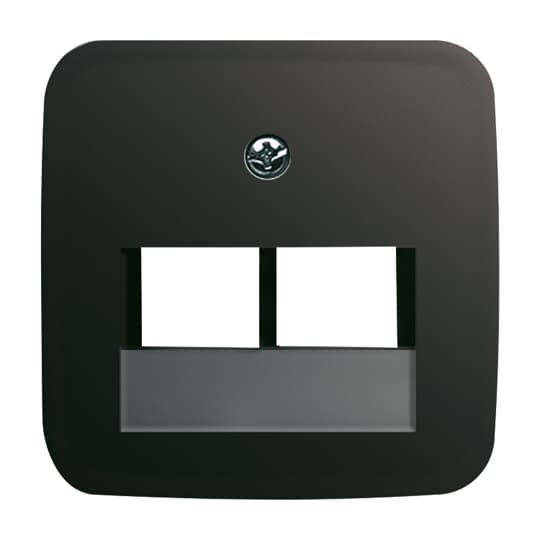

Cover Plate UAE/IAE (ISDN) 2 gang black - Busch-Triton
Long Description:

As cover for universal data connection boxes. Art. No. 0214, 0215 (Cat 3), 0220/12-507, 0221/12-507, 0218, 0217 (Cat 5e/6 data technology) and comparable types of the company Rutenbeck. Brand-Rex (WAEGV 8/8 EKR/EK). AMP (NETCONNECT 5E). BTR (E-DAT C6, E-DAT design, Universal data connecting unit design and IAE design). cti (cti-wire 2.8 Cat.6). Telegärtner (AMJ 45, UMJ 45). With down-leading outlet.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA000230A0243	Data connecting insert UAE 8P Cat 3 RJ45 8(8) 2gang white	0215	1	piece
2CKA000230A0467	Flush Mounted Inserts	0217-102	1	piece
2CKA000230A0411	Data connecting insert UAE Cat 6a RJ45 8(8) 2gang grey	0218/12-101	1	piece
2CKA000230A0412	Flush Mounted Inserts Cat 6a RJ45 8(8) 2gang metal clad	0218/12-101-507	1	piece
2CKA001710A3409	Cover Plate with Slider 1 gang studio white - Busch-Triton	1746 ZRKT-24G	1	piece
2CKA001710A3680	Cover Plate with Slider 1 gang aluminium silver - Busch-Triton	1746 ZRKT-83	1	piece
2CKA001710A3516	Cover Plate with Slider 1 gang palladium - Busch-Triton	1746 ZRKT-260	1	piece
2CKA001710A3406	Cover Plate with Slider 1 gang platinum - Busch-Triton	1746 ZRKT-20	1	piece
2CKA001710A3418	Cover Plate with Slider 1 gang champagne metallic - Busch-Triton	1746 ZRKT-79	1	piece
2CKA001754A4496	Cover Frame 1gang alpine white - Reflex SI	1721 NS-214-500	1	piece
2CKA001754A4497	Cover Frame 1gang alpine white - Reflex SI Linear	1721 NSKA-214-500	1	piece
2CKA001754A2163	Cover Frame 2gang alpine white - Reflex SI	1722 NS-214	1	piece
2CKA001754A4059	Cover Frame 2gang alpine white - Reflex SI Linear	1722 NSKA-214	1	piece
2CKA001754A3724	Cover Frame 3gang alpine white - Reflex SI	1723 NS-214	1	piece
2CKA001754A4061	Cover Frame 3gang alpine white - Reflex SI Linear	1723 NSKA-214	1	piece
2CKA001754A4183	Cover Frame 4gang alpine white - Reflex SI/SI Linear	1724 NS-214 MU	1	piece
2CKA001754A4063	Cover Frame 4gang alpine white - Reflex SI Linear	1724 NSKA-214	1	piece
2CKA001754A2171	Cover Frame 2gang alpine white - Reflex SI	1732 NS-214	1	piece
2CKA001754A4060	Cover Frame 2gang alpine white - Reflex SI Linear	1732 NSKA-214	1	piece
2CKA001754A3732	Cover Frame 3gang alpine white - Reflex SI	1733 NS-214	1	piece
2CKA001754A4062	Cover Frame 3gang alpine white - Reflex SI Linear	1733 NSKA-214	1	piece
2CKA001754A4101	Cover Frame 4gang alpine white - Reflex SI/SI Linear	1734 NS-214 MU	1	piece
2CKA001754A4064	Cover Frame 4gang alpine white - Reflex SI Linear	1734 NSKA-214	1	piece
2CKA001725A1009	Cover Frame 1gang alpine white - Reflex SI	2511 JH-214	1	piece
2CKA001725A1536	Cover Frame 1gang alpine white - Reflex SI	2511-214-500	1	piece
2CKA001725A1464	Cover Frame 1gang alpine white - Reflex SI	2511-214-507	1	piece
2CKA001725A1539	Cover Frame 1gang alpine white - Reflex SI Linear	2511-214K-102-500	1	piece
2CKA001725A1537	Cover Frame 2gang alpine white - Reflex SI	2512-214-500	1	piece
2CKA001725A1466	Cover Frame 2gang alpine white - Reflex SI	2512-214-507	1	piece
2CKA001725A1540	Cover Frame 2gang alpine white - Reflex SI Linear	2512-214K-102-500	1	piece
2CKA001725A1538	Cover Frame 3gang alpine white - Reflex SI	2513-214-500	1	piece
2CKA001725A1541	Cover Frame 3gang alpine white - Reflex SI Linear	2513-214K-102-500	1	piece
2CKA001725A1543	Cover Frame 4gang alpine white - Reflex SI	2514-214-500	1	piece
2CKA001725A1497	Cover Frame 4gang alpine white - Reflex SI Linear	2514-214K-102	1	piece
2CKA001725A0969	Cover Frame 5gang alpine white - Reflex SI	2515-214	1	piece
2CKA001725A1498	Cover Frame 5gang alpine white - Reflex SI Linear	2515-214K-102	1	piece
2CKA001719A0061	Cover Frame 1gang alpine white - Reflex SI	2518-214	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Application:

UAE/IAE (ISDN)
Design Range:

Busch-Triton
Mounting Type:

Flush Mounted
Type of Fastening:

Mounting with Screw
Type of Indicator:

Without indication field
Outlet Orientation:

Inclined
Surface Finishing:

Surface protection: Untreated
Surface finishing: Glossy
Material:

Thermoplastic
RAL Number:

RAL 9005 - Jet Black
Color:

black
Application Function:

Data Communication / Multimedia

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E2452
REACH Declaration:

2CKA309999E9999
Conflict Minerals Reporting Template (CMRT):

9AKK108468A3363

Dimensions

Product Net Width:

54 mm
Product Net Height:

54 mm
Product Net Depth / Length:

15 mm
Product Net Weight:

8.5 g
Built-In Depth (t₂):

32 mm
Dimension Diagram:

2CKA000097E0438

Ordering

Replaced Product ID (OLD):

1753-0-9111

Certificates and Declarations

Declaration of Conformity - CE:

2CKA200000E2452

Classifications

ETIM 8:

EC000018 - Insert/cover for communication technology
ETIM 9:

EC000018 - Insert/cover for communication technology
WEEE Category:

Product Not in WEEE Scope
CN8:

8538 90 99
eClass:

V11.0 : 27144049
