6179/01-204-500

General Information

  • Extended Product Type:
    6179/01-204-500
  • Product ID:
    2CKA006132A0313
  • EAN:
    4011395168547
  • Catalog Description:

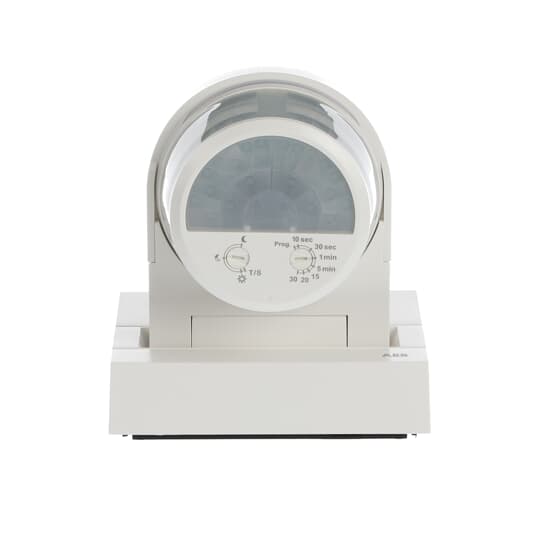

    6179/01-204-500 Busch-Watchdog 220° KNX
  • Long Description:
    With 2 movement channels. With 1 twilight channel with 3 switching thresholds. No remote control possible via IR remote control KNX. With integrated KNX bus coupler. No additional power supply necessary. Surveillance density: 92 sectors with 368 switching segments. Twilight sensor: approx. 1 - 1000 lux Switch-off delay: approx. 10 sec to 1092 min Sensor angle: 220° Range: approx. 16 m

Categories

  • 6179/01-204-500 - image 0
  • 6179/01-204-500 - image 1
  • 6179/01-204-500 - image 2
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
2CKA006800A2562
 Adapter MasterLINE white 6868-204-500 1 piece

Installation

Technical

  • Data Sheet, Technical Information:
    2CKA001373B8035
  • Number of Channels:
    2
  • Compatible Bus Systems:
    KNX (TP)
  • Product Range:
    KNX
  • Minimum Switching Time:
    Switch-On 10 second [unit of time]
  • Mounting Type:
    Surface Mounted
  • Surface Finishing:
    Surface protection: Untreated
    Surface finishing: Matt
  • Material:
    Thermoplastic
  • Model Number:
    Movement sensor
  • RAL Number:
    RAL 9016 - Traffic White
  • Color:
    alpine white
  • Number of Batteries:
    0
  • Application Function:
    Electrical Load and Light Control

Environmental

  • Ambient Air Temperature:
    Operation -25 ... +55 °C
  • Degree of Protection:
    IP55
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E4495
  • REACH Declaration:
    2CKA309999E9999
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    125 mm
  • Product Net Height:
    115 mm
  • Product Net Depth / Length:
    141 mm
  • Product Net Weight:
    0.5 kg
  • Built-In Depth (t2):
    0 mm

Ordering

  • Replaced Product ID (OLD):
    6132-0-0313

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001582 - Movement sensor for bus system
  • ETIM 9:
    EC001582 - Movement sensor for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8536 50 80
  • eClass:
    V11.0 : 27143144
