Detailed information for: 6190/44

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

6190/44

General Information

  • Extended Product Type:
    6190/44
  • Product ID:
    2CKA006190A0034
  • EAN:
    4011395988503
  • Catalog Description:

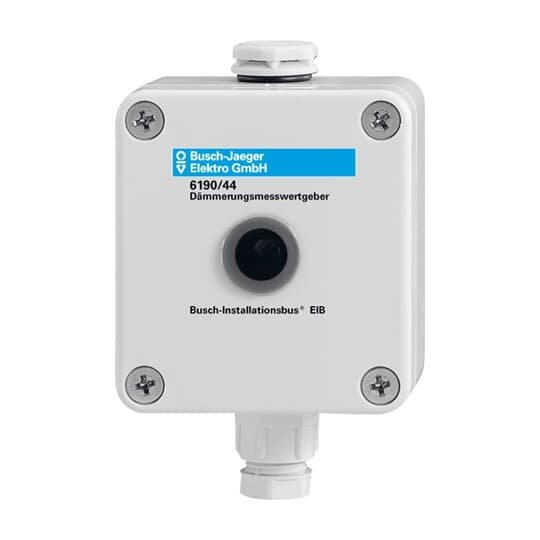

    6190/44 Twilight value sensor linear
  • Long Description:
    For Weather Station 6190/40-101. Serves for converting the measured light value (0-255 lux) into electrical signals (0-10 V). Surface mounting box IP 65 Recommended supply lead 3 x 0.25 mm² (max. 100 m)

Ordering

  • EAN:
    4011395988503
  • Customs Tariff Number:
    85176200
  • Minimum Order Quantity:
    1 piece
  • E-Number (Finland):
    3575268

Dimensions

  • Product Net Depth / Length:
    3.5 cm
  • Product Net Height:
    5.8 cm
  • Product Net Width:
    8.3 cm
  • Product Net Weight:
    0.1 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 EAN:
    4011395988503
  • Package Level 1 Depth / Length:
    0.09 m
  • Package Level 1 Height:
    0.04 m
  • Package Level 1 Width:
    0.06 m
  • Package Level 1 Gross Weight:
    100 g

Technical

  • Ambient Air Temperature:
    Operation -30...70 °C
  • Compatible Bus Systems:
    KNX
  • Degree of Protection:
    IP65
  • Mounting Type:
    Surface Mounted

Certificates and Declarations (Document Number)

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Classifications

  • ETIM 7:
    EC000533 - Lighting control system component
  • ETIM 8:
    EC000533 - Lighting control system component
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
