Detailed information for: 6190/49-101

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

6190/49-101

General Information

  • Extended Product Type:
    6190/49-101
  • Product ID:
    2CKA006190A0040
  • EAN:
    4011395070543
  • Catalog Description:

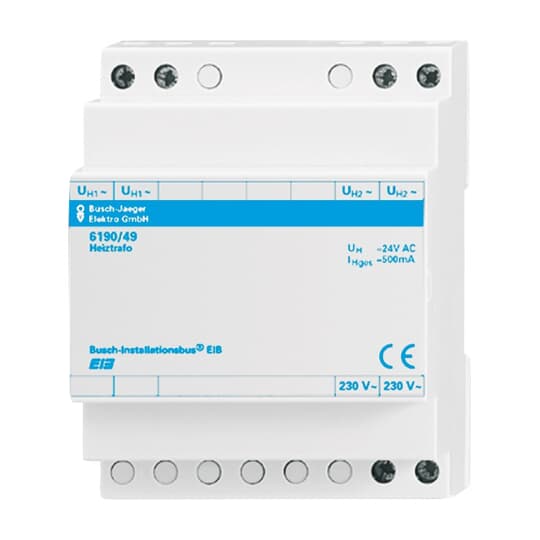

    6190/49-101 Filament transformer 2gang
  • Long Description:
    For wind and/or rain sensor 6190/41and 6190/43. Output: 24 V~, max. 1A SELV Also suitable for supplying up to 5 thermoelectric valve drives 24 V, TSA/K 24.1. For power supply to weather station WS/S 4.1.

Ordering

  • EAN:
    4011395070543
  • Customs Tariff Number:
    85043180
  • Minimum Order Quantity:
    1 piece
  • E-Number (Finland):
    3575409

Dimensions

  • Product Net Depth / Length:
    5.8 cm
  • Product Net Height:
    9 cm
  • Product Net Width:
    7 cm
  • Product Net Weight:
    0.585 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 EAN:
    4011395070543
  • Package Level 1 Depth / Length:
    0.073 m
  • Package Level 1 Height:
    0.075 m
  • Package Level 1 Width:
    0.095 m
  • Package Level 1 Gross Weight:
    585 g

Technical

  • Ambient Air Temperature:
    Operation -5...40 °C
  • Compatible Bus Systems:
    KNX
  • Degree of Protection:
    IP20
  • Mounting Type:
    Mounted Din Rail Component
  • Width in Number of Modular Spacings:
    4

Certificates and Declarations (Document Number)

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Classifications

  • ETIM 7:
    EC001583 - Accessories for bus system
  • ETIM 8:
    EC001583 - Accessories/spare parts for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
