Detailed information for: 6475 U-500

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

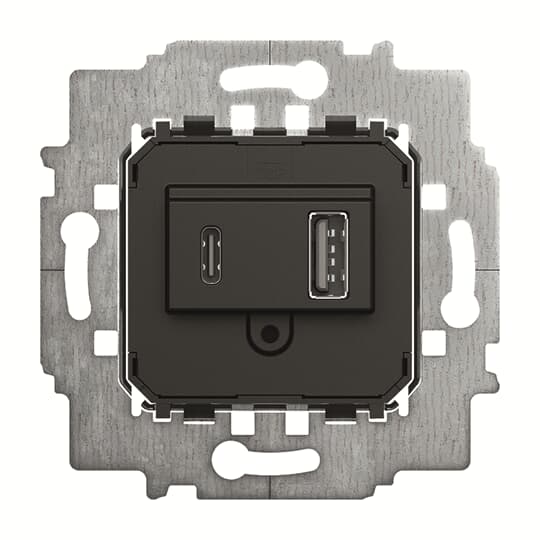

6475 U-500

General Information

Extended Product Type:

6475 U-500
Product ID:

2CKA006400A0399
EAN:

4011395303566
Catalog Description:

Flush Mounted Inserts with USB AC
Long Description:

For supply and support of mobile devices via USB-cable.
With USB type A and USB type C female connector.
To support two devices at the same time.
Supports automatic negotiating of optimum charging parameters for the shortest charging times.
Support of loading protocol on the USB-A connection: Apple MFI with 2.4 A and BC 1.2 with 1.5 A.
Support of the additional quick-charge protocols: USB-PD and quick-charge 3.0 & 4.0.
With electronic short-circuit protection.
With electronic overload protection.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA001753A2629	Cover Plate TAE 1 gang platinum - alpha	1766-20	1	piece
2CKA001753A2637	Cover Plate TAE 1 gang bronze - alpha	1766-21	1	piece
2CKA001710A2496	Cover Plate TAE 1 gang ivory - alpha	1766-22G	1	piece
2CKA001753A7743	Cover Plate TAE 1 gang studio white - alpha	1766-24G	1	piece
2CKA001710A3310	Cover Plate TAE 1 gang palladium - alpha	1766-260	1	piece
2CKA001710A3336	Cover Plate TAE 1 gang titanium - alpha	1766-266	1	piece
2CKA001753A0055	Cover Plate TAE 1 gang ivory - impuls	1766-72	1	piece
2CKA001753A4989	Cover Plate TAE 1 gang alpine white - impuls	1766-74	1	piece
2CKA001753A5465	Cover Plate TAE 1 gang champagne metallic - impuls	1766-79	1	piece
2CKA001753A0176	Cover Plate TAE 1 gang studio white matt - impuls	1766-774	1	piece
2CKA001753A0148	Cover Plate TAE 1 gang black matt - impuls	1766-775	1	piece
2CKA001710A3613	Cover Plate TAE 1 gang anthracite - 63x63	1766-81	1	piece
2CKA001710A3144	Cover Plate TAE 1 gang ivory white - 63x63	1766-82	1	piece
2CKA001710A3659	Cover Plate TAE 1 gang aluminium silver - 63x63	1766-83	1	piece
2CKA001710A3854	Cover Plate TAE 1 gang grey metallic - 63x63	1766-803	1	piece
2CKA001710A3926	Cover Plate TAE 1 gang studio white matt - 63x63	1766-884	1	piece
2CKA001710A3903	Cover Plate TAE 1 gang black matt - 63x63	1766-885	1	piece
2CKA001710A4084	Cover Plate TAE 0 gang brass - 63x63	1766-840-500	1	piece
2CKA001710A3765	Cover Plate TAE 1 gang stainless steel - Pure Stainless Steel	1766-866	1	piece

Installation

Instructions and Manuals:

2CKA000073B5150
Instructions and Manuals (Part 2):

2CKA000073B5151

Technical

Data Sheet, Technical Information:

No document needed
Function:

USB
Suitable For:

2CKA001724A0434
2CKA001724A0913
2CKA001753A2629
2CKA001753A2637
2CKA001710A2496
2CKA001753A7743
2CKA001710A3310
2CKA001710A3336
2CKA001753A0055
2CKA001753A4989
2CKA001753A5465
2CKA001753A0176
2CKA001753A0148
2CKA001710A3613
2CKA001710A3144
2CKA001710A3659
2CKA001710A3162
2CKA001710A3854
2CKA001710A3926
2CKA001710A3903
2CKA001710A4084
2CKA001710A3765
Rated Voltage (U_r):

220 ... 230 V AC
Input Voltage (U_in):

230 V
Output Voltage Type:

DC
Rated Current (I_n):

3 A
Rated Frequency (f):

50 ... 60 Hz
Power Loss:

0.075 W
Number of Outputs:

2
Design Range:

63x63
Busch-balance SI
Busch-art linear
future linear
Busch-axcent
Busch-axcent pur
solo
carat
future
Busch-Dynasty
Pure Stainless Steel
Reflex SI
Reflex SI Linear
Reflex SI/SI Linear
Busch-Duro 2000
Busch-Duro 2000 SI Linear
alpha
alpha exclusive
alpha nea
impuls
Connection Type:

USB
Load Type:

Only USB-A bus occupied:
Mounting Type:

Flush Mounted
Application Function:

Mobile Device Charging
Hospitality

Environmental

Ambient Air Temperature:

0...35 °C
Operation 0 ... +35 °C
Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E7228
REACH Declaration:

2CKA309999E9999
SCIP:

69906bda-b1d6-44a7-8f05-db0ffb3ae4e8 Germany (DE)
Conflict Minerals Reporting Template (CMRT):

9AKK108468A3363

Dimensions

Product Net Width:

92 mm
Product Net Height:

58 mm
Product Net Depth / Length:

78 mm
Product Net Weight:

80 g
Built-In Depth (t₂):

32 mm

Certificates and Declarations

Declaration of Conformity - CE:

2CKA200000E7228

Classifications

ETIM 8:

EC002949 - USB power supply
ETIM 9:

EC002949 - USB power supply
WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
CN8:

8504 31 80
