6701-101-500

General Information

  • Extended Product Type:
    6701-101-500
  • Product ID:
    2CKA006700A0040
  • EAN:
    4011395182642
  • Catalog Description:
    Flush Mounted Inserts 1 gang(s) 230 V
  • Long Description:
    For wireless switching of electrical loads. Functions via radio control: ON/OFF, timer and light scene control. Functions via the extension unit: ON/OFF, timer and sending a radio control telegram. Operation via conventional push button (2020 US/2021/6 UK) possible. Actuation of the extension unit (via conventional push-button) causes the output to switch and a radio control telegram to be sent. Actuation of extension unit in ON/OFF function: Alternate sending of an ON/OFF telegram. Actuation of extension unit in timer function: Sending of an ON telegram. For Busch-Watchdog WaveLINE. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. Switch-off delay: Adjustable to 5 seconds, 1-5-15 minutes. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.

Categories

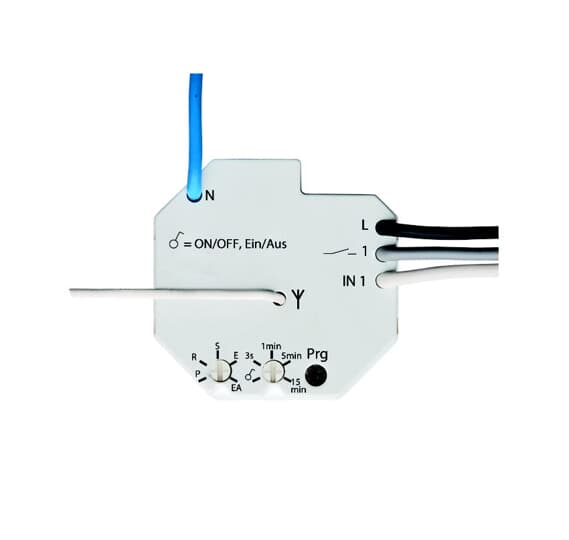

  • 6701-101-500 - image 0
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
2CKA006700A0023
 WaveLine Flush Mounted Inserts 1 gang(s) 230 V 6702-500 1 piece
2CKA006700A0025
 RF-Dimmer Actuator 1 gang(s) 230 V 6704-500 1 piece
2CKA006780A0001
 Accessories 3 V black 6780-500 1 piece
2CKA006730A0028
 WaveLine Electronic Controls 1 channel Radio Control white - Busch-Duro 2000 6731-212-500 1 piece
2CKA006730A0031
 WaveLine Electronic Controls 2 channel Radio Control alpine white - Reflex SI/SI Linear 6732-214-500 1 piece
2CKA006730A0032
 Electronic Controls 1 channel Radio Control ivory white - 63x63 6731-82-500 1 piece
2CKA006730A0041
 WaveLine Electronic Controls 1 channel Radio Control stainless steel - Pure Stainless Steel 6731-866-500 1 piece
2CKA006730A0038
 Electronic Controls 1 channel Radio Control studio white - 63x63 6731-84-500 1 piece
2CKA006730A0035
 Electronic Controls 1 channel Radio Control aluminium silver - 63x63 6731-83-500 1 piece
2CKA006730A0033
 Electronic Controls 2 channel Radio Control ivory white - 63x63 6732-82-500 1 piece
2CKA006730A0036
 Electronic Controls 2 channel Radio Control aluminium silver - 63x63 6732-83-500 1 piece
2CKA006730A0039
 Electronic Controls 2 channel Radio Control studio white - 63x63 6732-84-500 1 piece
2CKA006730A0042
 Wall sensor 2 channel Radio Control stainless steel - Pure Stainless Steel 6732-866-500 1 piece
2CKA006730A0034
 Electronic Controls 4 channel Radio Control ivory white - 63x63 6733-82-500 1 piece
2CKA006730A0037
 Electronic Controls 4 channel Radio Control aluminium silver - 63x63 6733-83-500 1 piece
2CKA006730A0040
 6733-84-500 RF-Switch Sensor 4-fold 6733-84-500 1 piece
2CKA006730A0043
 Electronic Controls 4 channel Radio Control stainless steel - Pure Stainless Steel 6733-866-500 1 piece
2CKA006720A0001
 Accessories studio white matt 6720-64 1 piece
2CKA006720A0002
 Accessories basalt black 6720-65 1 piece
2CKA006720A0003
 Accessories stainless steel 6720-66 1 piece
2CKA006720A0004
 Accessories studio white matt 6721-64 1 piece
2CKA006720A0005
 Accessories basalt black 6721-65 1 piece
2CKA006730A0001
 Electronic Controls for Control of electrical users white 6730-212 1 piece
2CKA006730A0002
 Electronic Controls for Control of electrical users alpine white 6730-214 1 piece
2CKA006730A0007
 Electronic Controls for Control of electrical users platinum 6730-20 1 piece
2CKA006730A0008
 Electronic Controls for Control of electrical users bronze 6730-21 1 piece
2CKA006730A0009
 Electronic Controls for Control of electrical users ivory 6730-22G 1 piece
2CKA006730A0011
 Electronic Controls for Control of electrical users studio white 6730-24G 1 piece

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Current Type:
    AC
  • Rated Voltage (Ur):
    230 V
  • Auxiliary Voltage AC/DC:
    230 V AC/DC
  • Rated Current (In):
    10 A
  • Frequency (f):
    868000000 Hz
  • Rated Frequency (f):
    50 Hz
  • Number of Outputs:
    1
  • Number of Relays:
    1
  • Number of Commands:
    3
  • Product Range:
    WaveLINE
  • Load Type:
    Resistive load
  • Mounting Type:
    Flush Mounted
  • Surface Finishing:
    Surface protection: Untreated
    Surface finishing: Matt
  • Material:
    Thermoplastic
  • RAL Number:
    RAL 9016 - Traffic White
  • Color:
    studio white
  • Cable Length:
    0.11 m
  • Application Function:
    Electrical Load and Light Control

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +45 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E6197
  • REACH Declaration:
    2CKA309999E9999
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    50 mm
  • Product Net Height:
    50 mm
  • Product Net Depth / Length:
    23 mm
  • Product Net Weight:
    66 g
  • Built-In Depth (t2):
    25 mm

Ordering

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000436 - Radio receiver
  • ETIM 9:
    EC000436 - Radio receiver
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8538 90 91
  • eClass:
    V11.0 : 27144202
