6705-101-500

General Information

  • Extended Product Type:
    6705-101-500
  • Product ID:
    2CKA006700A0042
  • EAN:
    4011395182666
  • Catalog Description:
    6705-101-500 Flush Mounted Inserts 2 gang(s)
  • Long Description:
    For wireless switching of electrical loads. For driving and adjusting blinds/shutters and awnings over radio. Functions via radio control: 2gang switch, blind switch and light scene control. Functions via extension unit: 2gang switch, blind switch and send radio control telegram. Operation via conventional push button (2020 US/2021/6 UK) possible. Actuation of the extension unit (via conventional push-button) causes the output to switch and a radio control telegram to be sent. Actuation of the extension unit in 2gang switch function: An ON/OFF telegram is sent alternately. Actuation of the extension unit in blind switch function: Extension unit 1 sends an UP and extension unit 2 sends a DOWN telegram. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. With blind switch function: 3 minutes run time. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.

Categories

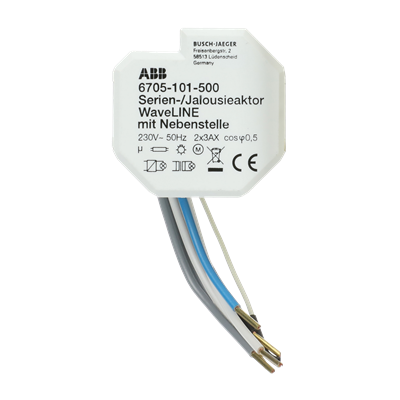

  • 6705-101-500 - image 0
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
2CKA006700A0023
 6702-500 WaveLine Flush Mounted Inserts 1 gang(s) 6702-500 1 piece
2CKA006700A0025
 6704-500 RF-Dimmer Actuator 1 gang(s) 6704-500 1 piece
2CKA006780A0001
 6780-500 Accessories 3 V black 6780-500 1 piece
2CKA006730A0028
 6731-212-500 WaveLine Cover Plates (partly incl. Insert) 1 channel whiteRadio Control 6731-212-500 1 piece
2CKA006730A0030
 6731-214-500 WaveLine Cover Plates (partly incl. Insert) 1 channel alpine whiteRadio Control 6731-214-500 1 piece
2CKA006730A0029
 6732-212-500 WaveLine Cover Plates (partly incl. Insert) 2 channel whiteRadio Control 6732-212-500 1 piece
2CKA006730A0031
 6732-214-500 WaveLine Cover Plates (partly incl. Insert) 2 channel alpine whiteRadio Control 6732-214-500 1 piece
2CKA006730A0038
 6731-84-500 Cover Plates (partly incl. Insert) 1 channel studio white - 63x63Radio Control 6731-84-500 1 piece
2CKA006730A0032
 6731-82-500 Cover Plates (partly incl. Insert) 1 channel ivory white - 63x63Radio Control 6731-82-500 1 piece
2CKA006730A0041
 6731-866-500 WaveLine Cover Plates (partly incl. Insert) 1 channel stainless steel - Pure Stainless SteelRadio Control 6731-866-500 1 piece
2CKA006730A0035
 6731-83-500 Cover Plates (partly incl. Insert) 1 channel aluminium silver - 63x63Radio Control 6731-83-500 1 piece
2CKA006730A0033
 6732-82-500 Cover Plates (partly incl. Insert) 2 channel ivory white - 63x63Radio Control 6732-82-500 1 piece
2CKA006730A0036
 6732-83-500 Cover Plates (partly incl. Insert) 2 channel aluminium silver - 63x63Radio Control 6732-83-500 1 piece
2CKA006730A0039
 6732-84-500 Cover Plates (partly incl. Insert) 2 channel studio white - 63x63Radio Control 6732-84-500 1 piece
2CKA006730A0042
 6732-866-500 Wall sensor 2 channel stainless steel - Pure Stainless SteelRadio Control 6732-866-500 1 piece
2CKA006730A0034
 6733-82-500 Cover Plates (partly incl. Insert) 4 channel ivory white - 63x63Radio Control 6733-82-500 1 piece
2CKA006730A0037
 6733-83-500 Cover Plates (partly incl. Insert) 4 channel aluminium silver - 63x63Radio Control 6733-83-500 1 piece
2CKA006730A0040
 6733-84-500 Wall sensor 4 channel studio white - 63x63Radio Control 6733-84-500 1 piece
2CKA006730A0043
 6733-866-500 Cover Plates (partly incl. Insert) 4 channel stainless steel - Pure Stainless SteelRadio Control 6733-866-500 1 piece
2CKA006770A0002
 6770-500 Flush Mounted Inserts 6770-500 1 piece
2CKA006700A0038
 6747 AGM-201-500 Movement Detector Passive infrared brown 220 ° 6747 AGM-201-500 1 piece
2CKA006700A0035
 6747 AGM-204-500 Movement Detector Passive infrared alpine white 220 ° 6747 AGM-204-500 1 piece
2CKA006700A0036
 6747 AGM-208-500 Movement Detector Passive infrared silver metallic 220 ° 6747 AGM-208-500 1 piece
2CKA006700A0037
 6747 AGM-35-500 Movement Detector Passive infrared anthracite 220 ° 6747 AGM-35-500 1 piece
2CKA006720A0002
 6720-65 Accessories basalt black 6720-65 1 piece
2CKA006720A0003
 6720-66 Accessories stainless steel 6720-66 1 piece
2CKA006720A0004
 6721-64 Accessories studio white matt 6721-64 1 piece
2CKA006720A0005
 6721-65 Accessories basalt black 6721-65 1 piece
2CKA006720A0001
 6720-64 Accessories studio white matt 6720-64 1 piece

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Current Type:
    AC
  • Rated Voltage (Ur):
    230 V
  • Auxiliary Voltage AC/DC:
    230 V AC/DC
  • Rated Current (In):
    3 A
  • Frequency (f):
    868000000 Hz
  • Rated Frequency (f):
    50 Hz
  • Number of Outputs:
    2
  • Number of Relays:
    2
  • Product Range:
    WaveLINE
  • Load Type:
    Electrical drives.
  • Mounting Type:
    Flush Mounted
  • Surface Finishing:
    Surface protection: Untreated
    Surface finishing: Matt
  • Material:
    Thermoplastic
  • RAL Number:
    RAL 9016 - Traffic White
  • Color:
    studio white
  • Cable Length:
    0.11 m
  • Application Function:
    Blind / Shutter / Shading Control

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +45 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E6199
  • REACH Declaration:
    2CKA309999E9999

Dimensions

  • Product Net Width:
    71 mm
  • Product Net Height:
    71 mm
  • Product Net Depth / Length:
    44 mm
  • Product Net Weight:
    43.5 g
  • Built-In Depth (t2):
    29 mm

Ordering

  • Minimum Order Quantity:
    1 piece
  • Package Level 1 Units:
    carton 1 piece
  • Package Level 1 Gross Weight:
    0.07 kg
  • Customs Tariff Number:
    85389091
  • E-Number (Sweden):
    1701037
  • Country of Origin:
    Spain (ES)

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000436 - Radio receiver
  • ETIM 9:
    EC000436 - Radio receiver
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8538 90 91
  • eClass:
    V11.0 : 27144202
