Detailed information for: 2017.2

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

2017.2

General Information

  • Extended Product Type:
    2017.2
  • Product ID:
    2CLA201720A1001
  • EAN:
    8427238053653
  • Catalog Description:

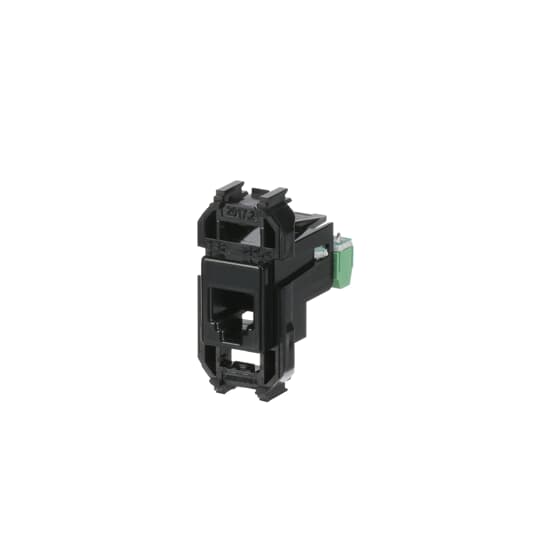

    Telephone outlet For data connection housing 1 gang - Zenit
  • Long Description:
    RJ12 type connector
    6 contacts
    Suitable for 2 (6P2C), 4 (6P4C) or 6 (6P6C) RJ11 and RJ12 jacks
    Screw terminals
    Cover plate code: 8518.1, 8518.2, 8618.1, 8618.2, N2118.1, N2218.1, N2218.2, 8418.1, 8418.2, 8218.1, 8218.2, 5518.1 & 5518.2

Installation

Technical

  • Data Sheet, Technical Information:
    9AKK10103A5108
  • Application:
    For data connection housing
  • Design Range:
    Zenit
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Engage (Snap)
  • Outlet Orientation:
    Straight
  • Application Function:
    Data Communication / Multimedia

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    22 mm
  • Product Net Height:
    44 mm
  • Product Net Weight:
    0.016 kg

Ordering

  • Replaced Product ID (OLD):
    2CLA201720A1002
    2CLA201720A1003

Certificates and Declarations

Classifications

  • ETIM 8:
    EC000018 - Insert/cover for communication technology
  • ETIM 9:
    EC000018 - Insert/cover for communication technology
  • WEEE Category:
    Product Not in WEEE Scope
  • CN8:
    85369010
  • UNSPSC:
    39121406
