Detailed information for: 8114

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

8114

General Information

  • Extended Product Type:
    8114
  • Product ID:
    2CLA811400A1001
  • EAN:
    8427238016504
  • Catalog Description:

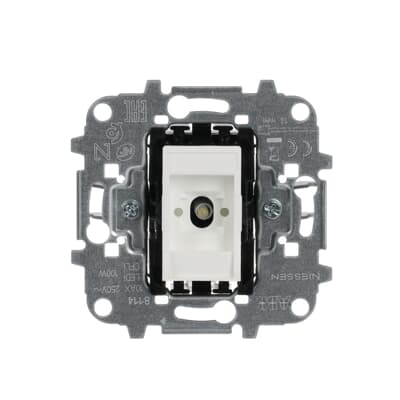

    Card switch 1-gang, 1-way, double pole Hotel card with LED exchangeable 250 V (2-pole switch)
  • Long Description:
    Rated voltage: 110 - 250 Vac
    Rated current: 10AX
    For 54mm width cards
    Included: fixing claws
    Included: locator LED lamp 6192 BL (230 Vac)
    Cover plate code: 8514, 8414, 8214 & 5514

Installation

Technical

  • Data Sheet, Technical Information:
    9AKK107046A0356
  • Function:
    Function lighting: Illuminated (on)
  • Rated Voltage (Ur):
    250 V
  • Rated Current (In):
    10 A
  • Maximum Switching Current:
    Fluorescent Lamps 10
  • Design Range:
    Sky Niessen
  • Wiring Configuration:
    2-pole switch
  • Actuator Type:
    Hotel card
  • Connection Type:
    Plug Clamp
  • Lamp Type:
    LED exchangeable
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Screw
  • Label Space Provided:
    No
  • Illumination:
    Illuminated
  • Number of Batteries:
    0
  • Application Function:
    Hospitality

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C
  • Degree of Protection:
    IP20
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    0.149 m
  • Product Net Height:
    0.078 m
  • Product Net Depth / Length:
    0.225 m
  • Product Net Weight:
    0.065 kg

Ordering

  • Replaced Product ID (OLD):
    2CL0811400

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001590 - Installation switch
  • ETIM 9:
    EC001590 - Installation switch
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85365080
  • UNSPSC:
    39122200
