8151.3

General Information

  • Extended Product Type:
    8151.3
  • Product ID:
    2CLA815130A1001
  • EAN:
    8427238045146
  • Catalog Description:

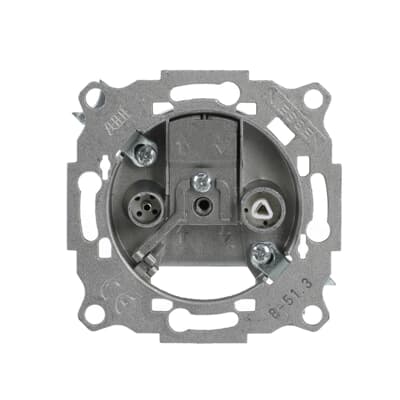

    TV/SAT outlet End socket No color
  • Long Description:
    TV-R and SAT double outlet - Final
    Installation as a terminal outlet connected to a tap-off or splitter (without terminal resistor).
    Connection: screw terminal and clamp.
    Output connectors (C1 / C2): IEC male 9,52mm diam. / IEC female 9,52mm diam.
    Frequency range (I/O / C1 / C2): 5 - 2.400 MHz / 5 - 862 MHz / 930 - 2.400 MHz
    Basic loss (FM / TV / SAT): 0,2±0,1 dB / 1,0 ±0,5 dB / 1,2±0,6 dB
    Isolation (FM / TV / SAT): >45 / >14 / >14
    Selectivity (TV-R / SAT): >15 / >15
    Return loss (VR / FM / TV / SAT): >25 / >25 / >14 / >10
    DC path (Vdc / mA / Tono): 24 max. / 500 max. / 22 KHz - DiSEqC
    Included: fixing claws
    Cover plate code: 8550.1, 8650, N2250.1, 8450.1, 8250.1 & 5550.1

Installation

  • Instructions and Manuals:
    No document needed
  • Mounting Type:
    Flush Mounted
  • Type of Fastening:
    Mounting with Screw

Technical

  • Data Sheet, Technical Information:
    9AKK107046A0356
  • Frequency (f):
    5...2400 MHz
  • Number of IEC Outlets:
    2
  • Design Range:
    Platform 8100
    Alba
    Sky Niessen
  • Cover Plate Type:
    None
  • Model Number:
    End socket
  • Color:
    No color
  • Number of Batteries:
    0
  • Application Function:
    Data Communication / Multimedia

Material Compliance

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +35 °C
    Storage -5 ... +50 °C

Dimensions

  • Product Net Width:
    0.149 m
  • Product Net Height:
    0.078 m
  • Product Net Depth / Length:
    0.225 m
  • Product Net Weight:
    0.096 kg

Ordering

  • Replaced Product ID (OLD):
    2CLA815130A1002

Certificates and Declarations

Classifications

  • ETIM 9:
    EC000439 - Antenna socket box
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • UNSPSC:
    39121463
