E 92/32

General Information

  • Extended Product Type:
    E 92/32
  • Product ID:
    2CSM200883R1801
  • EAN:
    8012542008835
  • Catalog Description:
    E 92/32 Fuse switch disconnector
  • Long Description:
    E 92/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.

Categories

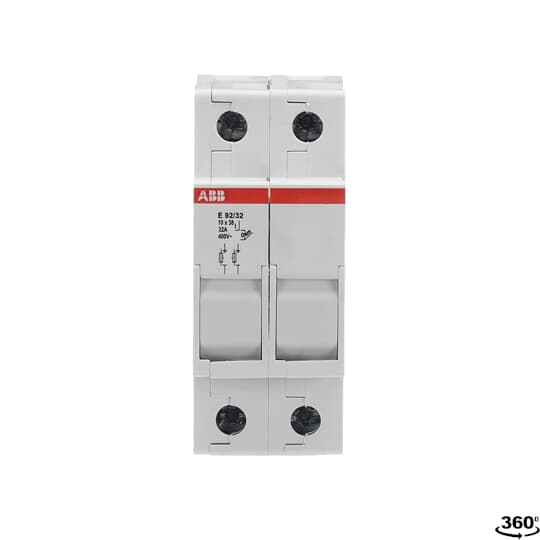

  • E 92/32 - image 0
  • E 92/32 - image 1
  • E 92/32 - image 2
  • E 92/32 - image 3
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
2CSM277333R1801
 E 9F10 GG05 Fuse link E 9F10 GG05 1 piece
2CSM277113R1801
 E 9F10 GG1 Fuse link E 9F10 GG1 1 piece
2CSM258723R1801
 E 9F10 GG2 Fuse link E 9F10 GG2 1 piece
2CSM257543R1801
 E 9F10 GG4 Fuse link E 9F10 GG4 1 piece
2CSM256363R1801
 E 9F10 GG6 Fuse link E 9F10 GG6 1 piece
2CSM258633R1801
 E 9F10 GG8 Fuse link E 9F10 GG8 1 piece
2CSM257453R1801
 E 9F10 GG10 Fuse link E 9F10 GG10 1 piece
2CSM256273R1801
 E 9F10 GG12 Fuse link E 9F10 GG12 1 piece
2CSM277543R1801
 E 9F10 GG16 Fuse link E 9F10 GG16 1 piece
2CSM277323R1801
 E 9F10 GG20 Fuse link E 9F10 GG20 1 piece
2CSM277103R1801
 E 9F10 GG25 Fuse link E 9F10 GG25 1 piece
2CSM258713R1801
 E 9F10 GG32 Fuse link E 9F10 GG32 1 piece
2CSM257473R1801
 E 9F10 AM05 Fuse link E 9F10 AM05 1 piece
2CSM256293R1801
 E 9F10 AM1 Fuse link E 9F10 AM1 1 piece
2CSM277563R1801
 E 9F10 AM2 Fuse link E 9F10 AM2 1 piece
2CSM277343R1801
 E 9F10 AM4 Fuse link E 9F10 AM4 1 piece
2CSM277123R1801
 E 9F10 AM6 Fuse link E 9F10 AM6 1 piece
2CSM258733R1801
 E 9F10 AM8 Fuse link E 9F10 AM8 1 piece
2CSM257553R1801
 E 9F10 AM10 Fuse link E 9F10 AM10 1 piece
2CSM256373R1801
 E 9F10 AM12 Fuse link E 9F10 AM12 1 piece
2CSM258643R1801
 E 9F10 AM16 Fuse link E 9F10 AM16 1 piece
2CSM257463R1801
 E 9F10 AM20 Fuse link E 9F10 AM20 1 piece
2CSM256283R1801
 E 9F10 AM25 Fuse link E 9F10 AM25 1 piece
2CSM277553R1801
 E 9F10 AM32 Fuse link E 9F10 AM32 1 piece
2CCS500900R0181
 ZLS725 Spare parts ZLS725 1 piece
2CCS400900R0091
 ZLS726 Spare parts ZLS726 1 piece

Technical

  • Standards:
    IEC 60947-3
  • Rated Voltage (Ur):
    acc. To IEC 400 V
    acc. To UL 690 V
  • Rated Operational Voltage:
    AC-20B 690 V
    |AC-22B 400 V
  • Rated Insulation Voltage (Ui):
    1 kV
  • Rated Frequency (f):
    50/60 Hz
  • Power Loss:
    at Rated Operating Conditions per Pole 3 W
  • Number of Protected Poles:
    2
  • Number of Poles:
    2
  • Tightening Torque:
    2...2.5 N·m
  • Utilization Category:
    Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
    Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
  • Lock Type:
    Padlockable when open
  • Mounting Type:
    DIN-Rail
  • Sealing Type:
    Sealing Wire
  • Material of Conductor:
    Copper
  • Options Provided:
    No
  • Recommended Screw Driver:
    Pozidriv 2
  • Shock and Vibration Withstand acc. to IEC 61373:
    Category 1, Class B
  • Connecting Capacity:
    Rigid 2x5 mm²
    Stranded 2x2-5 mm²
  • Fuse Size:
    10x38 mm
  • Operating Humidity (RHamb):
    max. 90% with temp. +20 °C
    50% with max. temp. +40 °C
  • Rated Operational Current AC (Ie):
    32 A

Environmental

  • Ambient Air Temperature:
    Operation -5...+40 °C
    Storage -25...+70 °C
  • Degree of Protection:
    IP20
  • Maximum Operating Altitude Permissible:
    2000 m
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2 to 13 Hz x= 1 mm peak
    13 to 100 Hz y= 0.7 g peak
  • Resistance to Shock acc. to IEC 60068-2-27:
    15g 18 shocks 13 ms
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    9AKK106713A5623
  • REACH Declaration:
    9AKK108467A9482
  • Environmental Information:
    See RoHS Information
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Technical UL/CSA

  • Connecting Capacity UL/CSA:
    Rigid 2x10 AWG
    Stranded 2x14-10 AWG

Dimensions

  • Width in Number of Modular Spacings:
    2
  • Product Net Width:
    0.035 m
  • Product Net Height:
    0.085 m
  • Product Net Depth / Length:
    0.064 m
  • Product Net Weight:
    0.247 kg
  • Built-In Depth (t2):
    64 mm

Ordering

  • Package Level 1 Units:
    box 3 piece
  • Package Level 1 Gross Weight:
    0.267 kg
  • E-Number (Finland):
    3017005
  • E-Number (Sweden):
    2318051

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC002705 - Holder for cylindrical fuse
  • ETIM 9:
    EC002705 - Holder for cylindrical fuse
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85361050
  • UNSPSC:
    39122233
  • eClass:
    V11.0 : 27142121
  • IDEA Granular Category Code (IGCC):
    5291 >> Fuse switch disconnector
  • Object Classification Code:
    F
