Detailed information for: E294/230

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

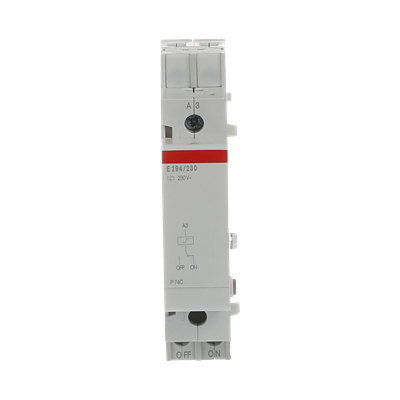

E294/230

General Information

  • Extended Product Type:
    E294/230
  • Product ID:
    2TAZ312001R2013
  • EAN:
    7612270939442
  • Catalog Description:
    E294/230 Central on-off Switching Module
  • Long Description:
    Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energysaving and efficient lighting control system. These devices are mainly used in rivate houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places. Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated. That short pulse to the coil leads to the mechanical latch of the internal main contacts. The internal switching mechanism enables us to achieve a safe and reliable interlock (in the same way as a ballpoint pen). Each pulse that is sent to the magnetic coil system switches the device ack to its previous position where it is held mechanically until the next control pulse is received. The devices are designed for rated currents 16 and 32A. Through the combinable accessories the main modules can be used in nearly all market applications.

Ordering

  • E-Number (Finland):
    2712555
  • EAN:
    7612270939442
  • Minimum Order Quantity:
    5 piece
  • Customs Tariff Number:
    85364930

Dimensions

  • Product Net Width:
    18 mm
  • Product Net Height:
    85 mm
  • Product Net Length:
    58 mm
  • Product Net Depth / Length:
    58 mm
  • Product Net Weight:
    110 g

Container Information

  • Package Level 1 Units:
    box 5 piece
  • Package Level 1 Width:
    96 mm
  • Package Level 1 Height:
    82 mm
  • Package Level 1 Depth / Length:
    185 mm
  • Package Level 1 Gross Weight:
    1189 g
  • Package Level 1 EAN:
    7612270939442

Environmental

  • Ambient Air Temperature:
    Operation -25...+55 °C
    Storage -40...+70 °C
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Accessory Type:
    Other
  • Color:
    Grey
  • Connecting Capacity:
    Solid 1 x 1 ... 10 mm²
    Flexible 2 x 2.5 mm²
    Flexible with Cable End 1 x 0.75 ... 6 mm²
    Flexible with Cable Lug 1 x 0.75 ... 6 mm²
  • Product Main Type:
    E294
  • Product Name:
    Central on-off Switching Module
  • Rated Control Circuit Voltage (Uc):
    230 V AC
  • Rated Control Supply Voltage (Us):
    230 V AC
  • Rated Current (In):
    1 A
  • Rated Frequency (f):
    50 Hz
  • Rated Voltage (Ur):
    250 V AC
  • Rated Operational Voltage:
    250 V AC
  • RoHS Date:
    20170426
  • Standards:
    IEC/EN 60669-1
    IEC/EN 60669-2-2
  • Tightening Torque:
    1.2 - 1.5 N·m

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000188 - Latching relay
  • ETIM 5:
    EC000188 - Latching relay
  • ETIM 6:
    EC002586 - Accessories for switching relay
  • ETIM 7:
    EC002586 - Accessories for switching relay
  • Object Classification Code:
    K
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
