AM8

General Information

  • Extended Product Type:
    AM8
  • Product ID:
    2TKA110008G1
  • EAN:
    6410019130478
  • Catalog Description:

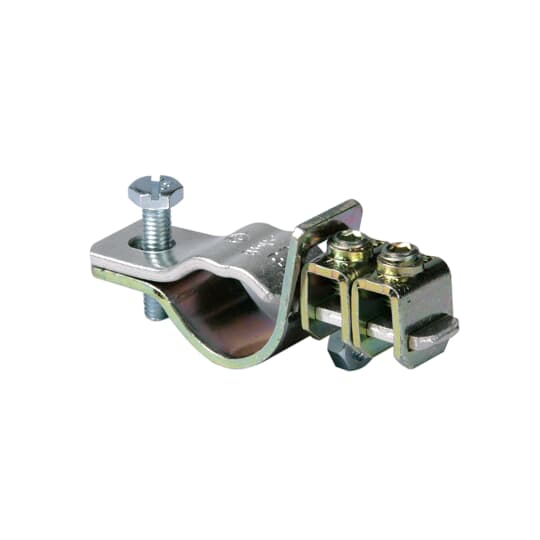

    AM8 Earthing terminal
  • Long Description:
    The earthing terminal AM8 is mainly used for connecting the earthing conductors to various pipework in sizes Ø 8 - 28 mm. It is possible to adjust the terminal to suit to four different pipe thicknesses. The terminal has two 35 mm² pillar terminals. The conductor bar is made of tinned copper and the strap of zinc-plated steel. The pillar terminals are of zinc-plated and yellow passivated steel.

Technical

  • Number of Conductors:
    2

Dimensions

  • Product Net Width:
    0.02 m
  • Product Net Height:
    0.083 m
  • Product Net Depth / Length:
    0.05 m
  • Product Net Weight:
    0.09553 kg

Container Information

  • Package Level 1 Units:
    bag 1 piece
  • Package Level 1 Width:
    0.004 m
  • Package Level 1 Height:
    0.12 m
  • Package Level 1 Depth / Length:
    0.22 m
  • Package Level 1 Gross Weight:
    0.0965 kg
  • Package Level 1 EAN:
    6410019130478
  • Package Level 2 Units:
    crate 50 piece
  • Package Level 2 Width:
    0.22 m
  • Package Level 2 Height:
    0.12 m
  • Package Level 2 Depth / Length:
    0.22 m
  • Package Level 2 Gross Weight:
    5.005 kg
  • Package Level 3 Units:
    pallet (lift) 6250 piece
  • Package Level 3 Width:
    1.2 m
  • Package Level 3 Height:
    1.1 m
  • Package Level 3 Depth / Length:
    0.8 m
  • Package Level 3 Gross Weight:
    641.83 kg

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85369010
  • E-Number (Finland):
    1913047
  • E-Number (Sweden):
    0681016
  • Country of Origin:
    Estonia (EE)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC000493 - Earthing pipe clamp
  • ETIM 8:
    EC000493 - Earthing pipe clamp
  • WEEE Category:
    Product Not in WEEE Scope
