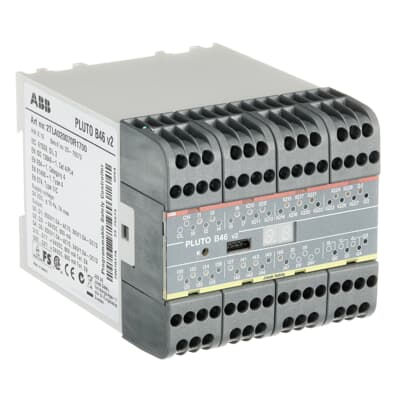

Pluto B46 v2

General Information

  • Extended Product Type:
    Pluto B46 v2
  • Product ID:
    2TLA020070R1700
  • EAN:
    7320500410615
  • Catalog Description:
    Pluto B46 v2
  • Long Description:
    Safety PLC with Pluto safety bus. Totally 46 I/O: 24 failsafe inputs + 16 non-failsafe outputs/failsafe inputs + 4 individually failsafe relay outputs + 2 individually failsafe transistor outputs.

Categories

  • Products » Low Voltage Products and Systems » Control Products » Safety Products » Programmable Safety Controllers » Pluto

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    8536411090

Popular Downloads

Dimensions

  • Product Net Depth / Length:
    120 mm
  • Product Net Height:
    84 mm
  • Product Net Width:
    90 mm
  • Product Net Weight:
    0.65 kg

Technical

  • Diagnostic Coverage:
    High
  • Number of Inputs:
    Failsafe 40
  • Number of Outputs:
    Failsafe (Transistor) 2
    Failsafe (Relay) 4
    Non-Failsafe 16
  • Performance Level (PL):
    Up to e
  • Protocol Type:
    MODBUS ASCII, Pluto Safety Bus, StatusBus
  • Rated Control Supply Voltage (Us):
    24 V DC
  • Supply Voltage:
    24 V DC

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    K
  • ETIM 4:
    EC001449 - Device for monitoring of safety-related circuits
  • ETIM 5:
    EC001449 - Device for monitoring of safety-related circuits
  • ETIM 6:
    EC000236 - PLC CPU-module
  • ETIM 7:
    EC000236 - PLC CPU-module
  • E-Number (Sweden):
    3860083
