Detailed information for: RT/U30.0.1-811

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Where to buy online


General Information

  • Extended Product Type:
  • Product ID:
  • EAN:
  • Catalog Description:

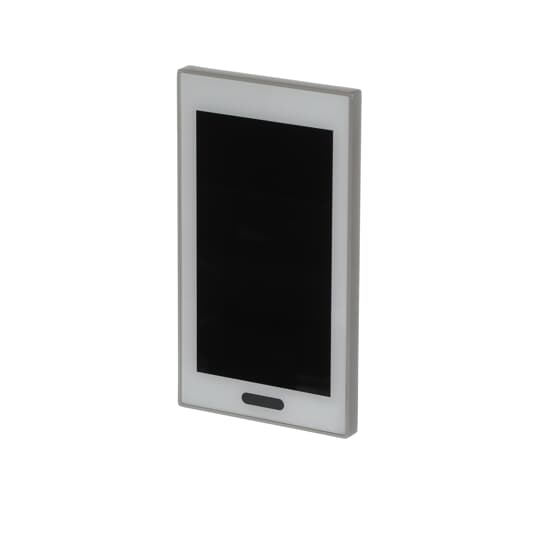

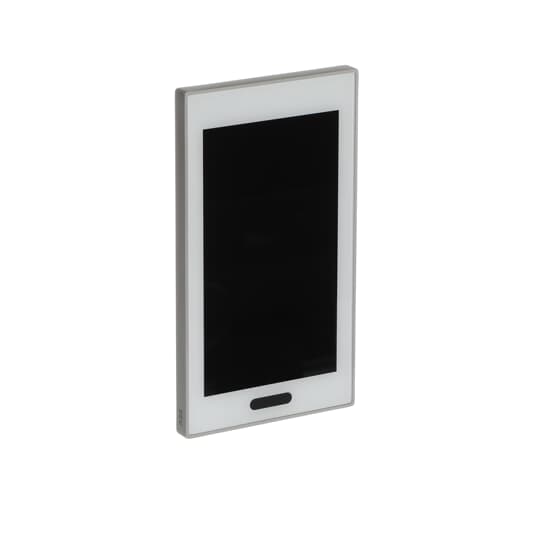

    RT/U30.0.1-811 RoomTouch 5 -811
  • Long Description:
    Multifunctional HD IPS KNX touchdisplay as a room control element for visualisation and control of all functions in a KNX system. For the display and intuitive control of the following standard KNX functions: Switching, rocker switch, dimming (4-bit and 8-bit), slider, blind, RGBW control element, room temperature control element, Split Unit control element, step switch, scene switch, display element or audio control element. Additional functions: 20 fault and alarm messages, 10 logic functions, 10 timers each with 6 switching times, 4 scene actuators, 1 room temperature controller and individual pages can be protected with a PIN code. Status display, display of date and time, as well as inside and outside temperature. Installed temperature sensor, proximity sensor and brightness sensor. With a push-button/switch input and external temperature sensor input. Page display with a maximum of 30 touch surfaces on 6 or 10 pages (dependent on the mounting method). Viewing angle display: 160° - 160°. Mounting via a separate flush-mounted box. External power supply: 20-32 VDC (SELV).



  • Data Sheet, Technical Information:
    No document needed
  • Auxiliary Voltage AC/DC:
    20 V AC/DC
    32 V AC/DC
  • Compatible Bus Systems:
    KNX (TP)
  • Product Range:
  • Mounting Type:
    Flush Mounted
  • RAL Number:
    Similar to RAL 9016
  • Color:
    studio white
  • Screen Size:
    5 in
  • Application Function:
    Blind / Shutter / Shading Control
    Electrical Load and Light Control
    Data Communication / Multimedia
    Room Climate Control
    Safety and Security



  • Product Net Weight:
    367 g

Certificates and Declarations


  • ETIM 8:
    EC001585 - Multi operating device for bus system
  • ETIM 9:
    EC001585 - Multi operating device for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8537 10 91
  • eClass:
    V11.0 : 27143101
