Introducing the AWT210

The low-power, high-performance transmitter for use in hazardous area applications

Intrinsically safe modular design reduces process downtime while delivering greater user flexibility

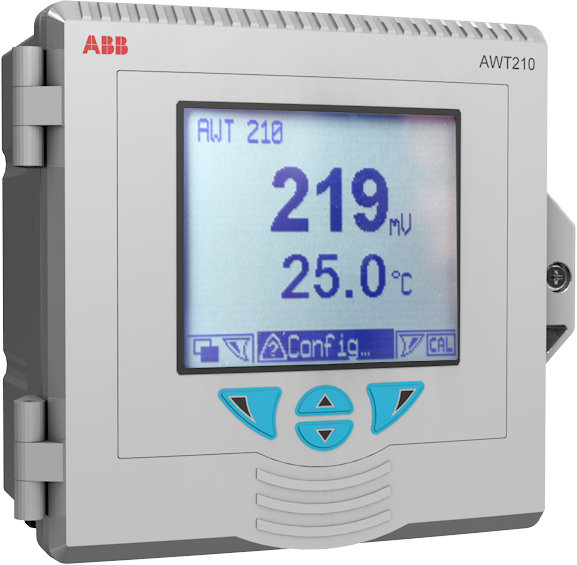

AWT210

Flexible scalability with the future built in

With the AWT210 you get a truly adaptable transmitter that can be quickly and easily modified to meet your demands of today and your measurement needs of tomorrow.

Factory calibrated modules can be easily removed, swapped and locked back into place, enabling fast and simple upgrades in the field

Easy access

Easy access via hinged door, enabling fast and easy upgrading and maintenance in the field
Modules

Plug-and-play sensor and communication modules minimise stock holding whilst maximising operation uptime
Easy locking

Modules can be easily removed, swapped and locked back into place, cutting changeover and installation times
Communication options

Available with PROFIBUS® PA, FOUNDATION™ Fieldbus or HART communications.
Compact design

Common universal design for pH, ORP or conductivity measurement
Mounting options

Choice of wall, panel or pipe-mounting fittings, enabling quick installation without extensive modifications.
Ratings and approvals

cFMus and ATEX/IECEx approved
Intrinsically safe, non-incendive design for hazardous area installation
Available in corrosion-resistant polycarbonate or durable powder-coated aluminium enclosures

Improving your process efficiency

The AWT210 modular transmitter solution enables ABB customers to optimize their plant availability by cost effectively stocking a minimal amount of modular options, that are simple and quick to install

Optimizing Plant Availability

Operators are often faced with managing a large, complicated and expensive inventory of parts to ensure the continual operation of critical processes
Operation simplicity is at the heart of the AWT210.

Based on ABB’s common intuitive HMI, users can easily navigate the device. Easy Setup menus provide step-by-step guidance and routine calibration tasks can be initiated at a touch of a button.

Reducing Operational Expenditure

The time spent on day-to-day maintenance tasks of complicated online instrumentation can be a significant burden on operational expenditure (OPEX)
The AWT210 provides seamless integration into your plant control system. Available with a choice of communications modules enabling simple device integration through 4 to 20 mA (with HART®), FOUNDATION Fieldbus® and PROFIBUS PA® communication protocols.

Advanced self-diagnostics conforming to NAMUR NE 107 provide harmonized indication of device status.

Optimizing Plant Control

The ability to precisely control a plant and optimize its operation is a key step to improving process efficiency.

Open up the full potential of the AWT210

Experience the most durable sensors in the world

ABB are world renowned for providing the most durable sensors that continually outlast and outperform all others in the toughest processes.

pH/ORP

Our range of industrial pH and ORP electrodes with solid state reference technology are less susceptible to both reference poisoning and junction plugging... meaning that they last longer, drift less and require less maintenance, even in the most challenging applications. Available with a complete array of mounting hardware for high pressure and high temperature installation.

Electrode Conductivity

Our rugged range of 2-electrode and 4-electrode sensors provide critical conductivity measurement in the most demanding processes... Built to the highest quality standards, they provide accurate and reliable measurement in a range of applications from ultra-pure water to highcoating aggressive chemical solutions. With specially designed versions for flow-through, inline and high pressure insertion we have the right sensor for your application.

Toroidal Conductivity

Designed for use in chemically aggressive solutions that corrode, foul or otherwise destroy electrode type sensors our range of chemically resistant... toroidal sensors are completely encapsulated in PEEK (Poly-ether-ether-ketone), one of the most durable thermoplastics in the industry to provide bullet-proof performance and reliability up to 200°C (392°F).

Improving process efficiency for...

The pulp and paper industry is a significant energy and chemical consumer so process efficiency is critical for cost reductions.

Discover how the AWT210 can be used to provide accurate and reliable control of pH and conductivity levels across the pulp and paper production process

Delignification

The robust AWT210 pH systems significantly reduces energy consumption in the high temperature and pressure digestion process.

Liquor
Monitoring Pulp

A critical element in the paper making process, the AWT210 accurately monitors pH during black liquor recycling, minimizing chemical waste.

Tall Oil Pulp

A commercial by-product in the pulping process, AWT210 pH systems maintain the high acidity required to ensure product quality and increased revenue profitability.

Bleaching Pulp

AWT210 pH systems improve process control, substantially reducing chemical usage by 10 to 100k USD per month.

Headbox Paper

AWT210 pH/conductivity systems provide accurate process measurement of the raw stock, refiners, headbox, stuff box and the furnish ensuring optimum product quality.

Recycling Paper

Efficiency is key to profitability for P&P operators. The AWT210 pH/conductivity systems are fast to maintain and replace ensuring the maximum process up time
The careful control of pH and conductivity within oil refineries is critical to ensure optimized hydrocarbon processing, regulation compliance and reduced downtime caused by corrosion.

Discover how the AWT210 is being used to combat these challenges

Refinery Waste Water

The refining process generates large volumes of waste water 24/7. The AWT210 modular simplicity ensures uptime, maintaining chemical control and environmental compliance

FCC Scrubber

During the off-gas remediation process, highly accurate AWT210 pH systems ensure harmful components are removed safely prior to release into the environment

Crude Oil Distillation

The AWT210 safely monitors the treatment of unwanted by-products during initial crude oil separation, reliably reducing costly process interruptions due to corrosion.

Sour Water Stripping

Sour Water is a highly corrosive by-product of crude oil refining. The superior anti-poisoning and plugging AWT210 pH system reduces operational cost whilst recycling high quality water for reuse.
Accurate and reliable control of pH and conductivity are crucial for optimizing plant performance to improve product quality and yield whilst minimizing energy use, material consumption and waste.

Discover some of the key applications how the AWT210 can improve efficiency in chemical and petrochemical processes

Waste Water

Treatment of plant waste water can present dynamic challenges. The AWT210’s cost efficient scalability ensures current and future water quality compliance

Steam Generation

AWT210 pH and conductivity systems help limit chemical use and corrosion in challenging high-purity steam generation, optimizing plant efficiency and minimizing energy costs.

Process Control

The AWT210 HART, Foundation Fieldbus, Profibus PA enable Realtime accurate pH and conductivity monitoring, maximizing product quality whilst minimizes chemical waste.

Scrubbers

Scrubber efficiency relies on robust and accurate pH monitoring. The AWT210 pH systems ensure optimal safe performance in the harshest of applications.
With the significant challenges that miners face with the availability of water, increasing regulation and harsh process conditions the need for robust and dependable analysis is crucial to ensuring optimum process efficiency and environmental compliance.

Discover how the AWT210 can be used increase process efficiency in the Metals and Mining process.

Bacterial Oxidation Methods Mineral Extraction

An optimum operating environment is critical for ensuring maximum mineral extraction, the AWT210 ensures the ideal pH conditions to optimize product yield in harshest of environments.

Flotation Method
Mineral Extraction

AWT210 provides durable and accurate pH control, ensuring optimal flotation and extraction conditions with a system that outlasts the competition.

Leaching Method Mineral Extraction

Improved pH control with the AWT210 minimizes chemical use during mineral extraction, significantly reducing chemical cost and risk.

Plating Applications Metal Finishing

The AWT210 provides accurate pH monitoring of harmful chemical additives used in plating applications, ensuring H&S peace of mind and regulatory compliance.
