REF601

ABB Relion REF601


REx601 2.5

Entry-level feeder protection and control relay

ABB Relion REF601 is an entry-level feeder protection and control relay for secondary distribution. ABB Relion REF601 protection and control relay offers main protection for overhead lines and cable feeders in solidly earthed, resistance-earthed or isolated networks.  ABB Relion REF601 also offers serial communication (Modbus RTU and IEC-103) for easy connection. It is compliant with IEC/ ANSI/CN and CEI standards.

ABB’s protection relays are available for original equipment manufacturers (OEM), panel builders and Engineering, Procurement and Construction (EPCs) partners to incorporate in their own installations or for use in new, retrofit or upgrade projects.





Basic protection

It provides an optimized composition of protection, monitoring and control functionality in one unit, including pre-configured functionality for easy and fast commissioning of medium voltage switchgear.  To emphasize the simplicity of relay’s usage, only application specific parameters need to be set within the relay’s intended area of application.

 ABB Relion REF601 leverages the same configuration software as all ABB Relion protection and control products.

REM601_margin
Contact us

Product scope

Click the arrow to learn more about product scope.

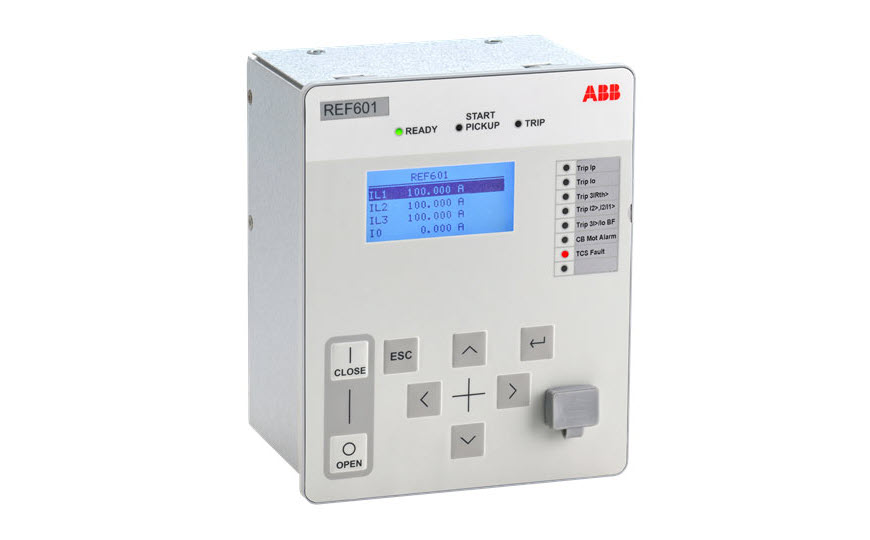

 ref601a
Application
Relion REF 601
Feeder protection
X
Current protection
X
Bay control

Transformer protection

Line distance protection

Line differential protection
Motor protection

Generator protection

Busbar protection

Capacitor bank protection
Voltage protection

Current protection

Load-shedding

Grid automation

Petersen coil protection

Auto-synchronization

Interconnection protection
Arc flash protection


Customer benefits

Click the arrows below to learn more about customer benefits.
ABB_picto_easy_to_install

Compact Design & Installation

  • Compact, flexible and simple to handle
  • Press fit mounting arrangement facilitates easy and fast installation
  • Smaller number of variants making it easy to stock
ABB_picto_machine building

Configuration & Commissioning

  • Fast deployment with easily configurable binary inputs and outputs
  • Preconfigured functionality facilitates easy and fast commissioning


ABB_picto_securityProtection & Monitoring

  • Main protection for overhead lines and cable feeders in solidly earthed, resistance-earthed or isolated networks

training_banner

Services for ABB Relion

  • Trainings - remotely, on field or on our facility in Finland
  • Support - by local "agency" or by our manufacture for level 3
  • Select the right relay
  • Technical documentation - available in 19 languages
