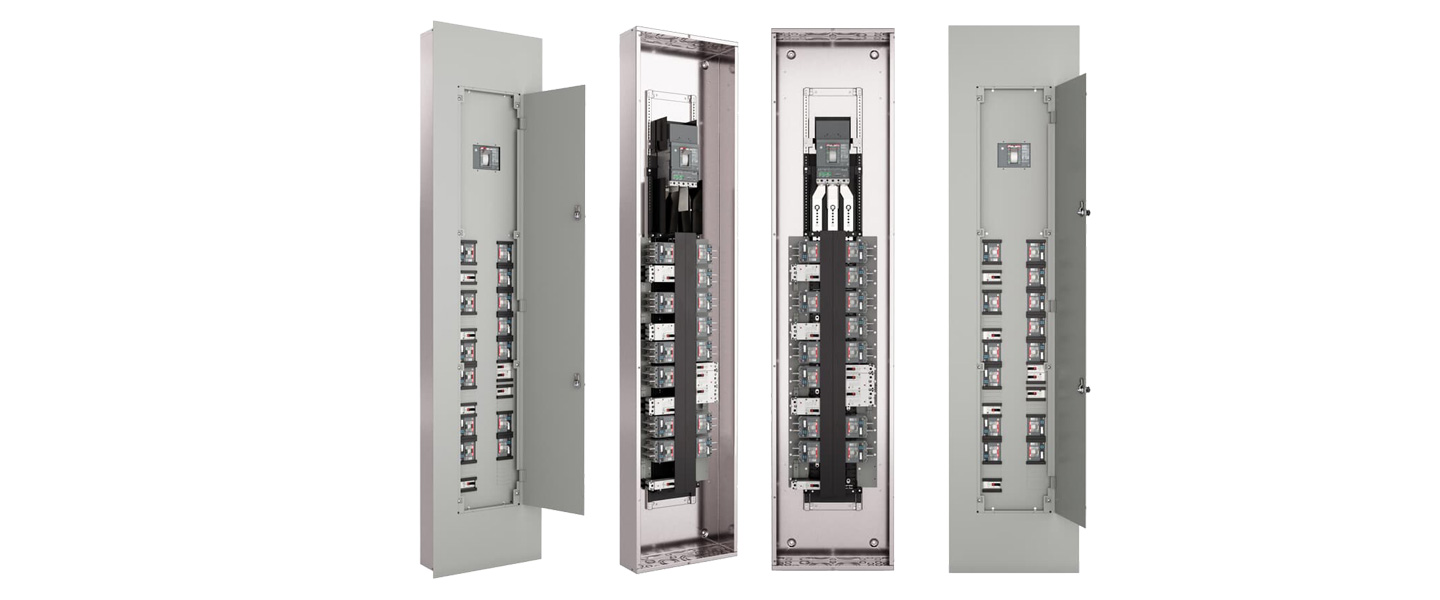

ReliaGear Lighting Panelboards

The safe, smart and sustainable solution for extreme performance

ReliaGear family of lighting panelboards (RQ, RL, RE/RS, RD) integrate the whole family of high-quality circuit breakers into one pre-engineered modular panelboard system.

Tools and Resources Contact us

ReliaGear Lighting Panelboards feature increased breaker density and the superior SACE® FORMULA A2 & SACE® Tmax® XT circuit breakers as mains and sub-feeds in the RQ, RL, RE, and RS to experience XTreme performance.

These panelboards are designed to be versatile, simple, and readily available from distributor inventory, making them a safe, smart, and sustainable solution for projects of any size.

Benefits

Modularity

Versatile design to speed installation and reduce labor costs

Lead Time

Exceptional lead times for competitive project advantage

Customization

Advanced design flexibility for tailored solutions

Automation

State-of-the-art empower tool for efficient product ordering

Features

Extruded split neutrals to simplify wiring and help speed installation
NEMA enclosures offer ample gutter space
Increased amperages and sub-feed circuit count
Advanced electronic trip units within compact frames
Thousands of configurations and optional embedded surge protection devices, main metering, or branch circuit metering available

Technical Specifications

Higher interrupt ratings (up to 200kA), Ekip Hi-Touch, and thermal-magnetic trip units
Maximum short circuit rating is equal to 100 kAIC at 240 V AC and 480/277 V AC with series rating of 100 kAIC at 480 V AC and 200 kAIC at 240 V AC
Factory assembled on rigid steel frames and equipped with circuit breakers from 15 A to 800 A
