Top of City

The Top of City complex consists of approx. 111 luxury apartments, sited at a premium location in China's most dynamic city Shanghai. The average floor space of the apartments is 250-350 m². The lighting control, shutter control and HVAC control, including fan coil units and under floor heating, are implemented by using ABB i-bus^® KNX.

What were the challenges in fulfilling the wishes of the customer?

The integration of video security functions into the ABB i-bus^® system was the challenge of this project.

Why was the decision for a KNX solution made?

The flexible functionality of ABB i-bus^® KNX including lighting control / shutter control / heating / fan coil unit/ audio / video in one system, the complete range and functionality of the ABB modular DIN rail system as well as the open protocol of KNX allowing easy system integration with other 3rd party products and systems fulfilled the customer's wishes.

Lighting Control and Regulation

• Switching
• Dimming
• Central Control
• Light Scenes

Blind and Shutter Control

• Movement to Preset Positions
• Central Control

Heating, Ventilation and Air Conditioning (HVAC)

• Type of Heating / Cooling System: Fan Coil

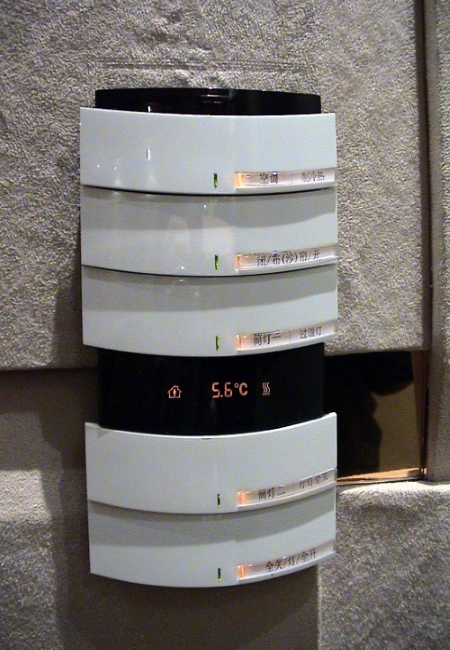

Operation, Indication and Visualisation

• IR - Remote Control
• LCD Display

Remote Access and Control

• Remote Control via Internet / Telephone

Central Automation

• Complex Logical Operations

General Facts

Owner / Investor	ZK Group
Location	China, Shanghai
Type of Building	Apartments
Year of Construction	2005
Architect	B+H
Integrator / Contractor	Shanghai Decalong Electron Technology Co. Ltd.
Floor Space (m²)	210 m²
No. of Floors	34
No. of Offices / Rooms	104

KNX Installation Facts

Number of Lines	42
Number of Components	2000
Construction Volume	500,000 EUR
KNX Proportion in the Construction Volume	2%
