Detailed information for: UMCPAN-CAB.150

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online
Related Links

UMCPAN-CAB.150

General Information

  • Extended Product Type:
    UMCPAN-CAB.150
  • Product ID:
    1SAJ510004R0002
  • EAN:
    4013614499623
  • Catalog Description:

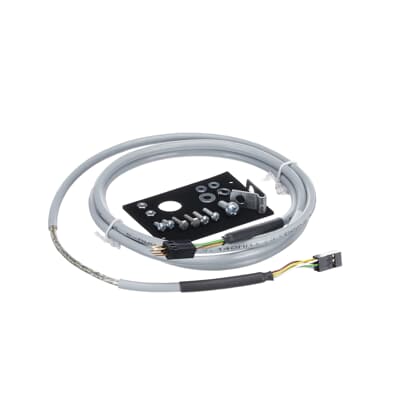

    UMCPAN-CAB.150 Control Panel Connection Cable 1.5 m
  • Long Description:
    The UMCPAN-CAB is a control panel cable and a mounting kit for use in drawer applications. It connects the panel, which is mounted on the drawer front with the UMC100.3 inside of the drawer. This cable is 1.5 m long.

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85444290
  • Product Main Type:
    UMCPAN-CAB

Popular Downloads

Dimensions

  • Product Net Width:
    7.7 mm
  • Product Net Depth / Length:
    1510 mm
  • Product Net Height:
    0.006 mm
  • Product Net Weight:
    0.088 kg

Technical

  • Recommended Screw Driver:
    Pozidriv 1
  • Suitable For:
    UMC100-PAN
  • Suitable for Product Class:
    Universal Motor Controllers Accessories
  • Terminal Type:
    Screw Terminals
  • Tightening Torque:
    Auxiliary Circuit 0.6 ... 1 N·m
    Control Circuit 0.6 ... 1 N·m

Environmental

  • Degree of Protection:
    IP54
  • WEEE Category:
    Product Not in WEEE Scope

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    bag 1 piece
  • Package Level 1 Width:
    84 mm
  • Package Level 1 Depth / Length:
    23 mm
  • Package Level 1 Height:
    63 mm
  • Package Level 1 Gross Weight:
    0.088 kg
  • Package Level 1 EAN:
    4013614499623

Classifications

  • eClass:
    V11.0 : 27370806
  • ETIM 6:
    EC002614 - Operator panel for Motor management device
  • ETIM 7:
    EC002614 - Operator panel for Motor management device
  • ETIM 8:
    EC002614 - Operator panel for Motor management device
  • ETIM 9:
    EC002614 - Operator panel for Motor management device
  • IDEA Granular Category Code (IGCC):
    4660 >> Electrical extension cable
  • Object Classification Code:
    X
  • UNSPSC:
    39121440
