T2H 100 MCP-UL/CSA Iu=100-1200 3p F F

General Information

  • Extended Product Type:
    T2H 100 MCP-UL/CSA Iu=100-1200 3p F F
  • Product ID:
    1SDA055172R1
  • ABB Type Designation:
    T2H 100 UL/CSA MCP 100-1200 3P
  • EAN:
    8015644563356
  • Catalog Description:
    T2H 100 MCP-UL/CSA Iu=100-1200 3p F F
  • Long Description:
    C.BREAKER TMAX T2H 100 MCP UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE Iu 100 A I3=600...1200 A

Categories

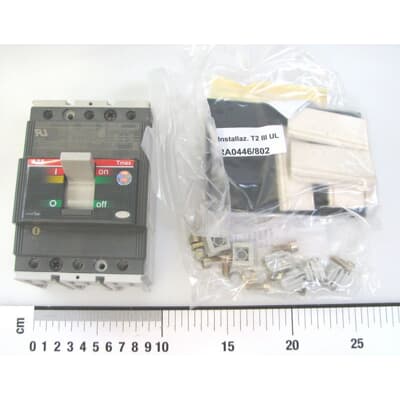

  • T2H 100 MCP-UL/CSA Iu=100-1200 3p F F - image 0
+
–

Where Used (as a spare part for "Products")

Identifier Description Qty Unit Of Measure
3HAC020536-014
 IRC5 Controller 1 piece

Ordering

  • EAN:
    8015644563356
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362090

Dimensions

  • Product Net Weight:
    1.160 kg

Container Information

  • Package Level 1 EAN:
    8015644563356

Additional Information

  • Electrical Durability:
    8000 cycle
  • Mechanical Durability:
    25000 cycle
  • Number of Poles:
    3
  • Order Multiple:
    1.000 piece
  • Power Loss:
    at Rated Operating Conditions per Pole 7,7 W
  • Product Main Type:
    SACE Tmax T
  • Product Name:
    Moulded Case Circuit Breaker
  • Product Type:
    CB
  • Rated Current (In):
    100 A
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Rated Insulation Voltage (Ui):
    800 V
  • Rated Operational Voltage:
    500 V DC
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (500 V DC) 3 Poles in Series 70 kA
  • Rated Uninterrupted Current (Iu):
    100 A
  • Release:
    MA
  • Release Type:
    M
  • Short-Circuit Performance Level:
    H
  • Standards:
    UL 489
    CSA C22.2
  • Sub-type:
    T2
  • Terminal Connection Type:
    Fixed Circuit-Breakers
    Front
  • Test Voltage Max (Utest):
    3000 V
  • Version:
    F

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000228 - Power circuit-breaker for trafo/generator/installation prot.
  • ETIM 5:
    EC000228 - Power circuit-breaker for trafo/generator/installation prot.
  • ETIM 6:
    EC000228 - Power circuit-breaker for trafo/generator/installation prot.
  • ETIM 7:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • ETIM 8:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • Object Classification Code:
    Q
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
