Detailed information for: WB1SL0820A00

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

WB1SL0820A00

General Information

  • Extended Product Type:
    WB1SL0820A00
  • Product ID:
    1SL0830A00
  • EAN:
    8000126233728
  • Catalog Description:

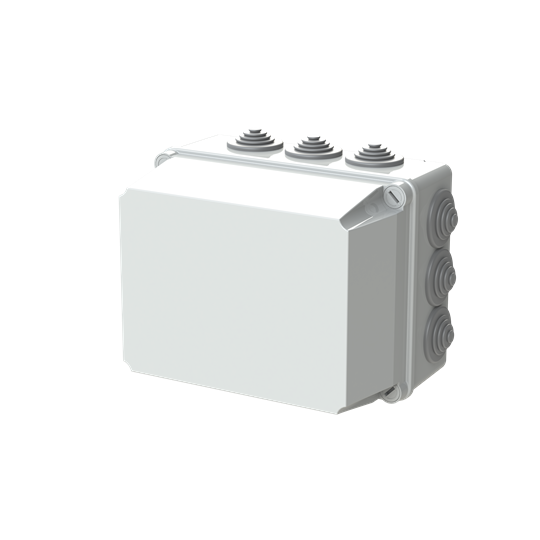

    WB1SL0820A00 Junction Box Surface mounting General
  • Long Description:
    IP55-CABLE GL-HIGH LID-160X135X150-1/4TS - GWT 650°C

Technical

  • Application:
    General
  • Suitable For:
    IP44-IP55-IP65 junction boxes in thermoplastic material
  • Rated Insulation Voltage (Ui):
    1500 V
  • Number of Conduit Inlets:
    10
  • Cover Mounting Type:
    Screw
  • Mounting Type:
    Surface mounting
  • Product Type:
    IP44-55-65
  • Screw Type:
    Plastic
  • Shape:
    Rectangular
  • Surface Finishing:
    Untreated
  • Enclosure Material:
    thermoplastic
  • Material:
    Plastic
  • Cover Style:
    Blind Cover
  • RAL Number:
    RAL 7035 - Light Grey
  • Color:
    grey

Environmental

  • Degree of Protection:
    IP55
  • Protection Class:
    Isolated (Class II)
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    9AKK108468A2381
  • Environmental Information:
    1SLC001001D0905
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    160 mm
  • Product Net Height:
    135 mm
  • Product Net Depth / Length:
    150 mm
  • Product Net Weight:
    0.656 kg

Ordering

  • Minimum Order Quantity:
    1 piece
  • Package Level 1 Units:
    box 16 piece
  • Package Level 1 Gross Weight:
    10.5 kg
  • E-Number (Finland):
    3411014

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC002600 - Box/housing for surface mounting on the wall/ceiling
  • ETIM 9:
    EC002600 - Box/housing for surface mounting on the wall/ceiling
  • WEEE Category:
    Product Not in WEEE Scope
  • eClass:
    V11.0 : 27144401
  • Object Classification Code:
    U
