Detailed information for: 41F06X12

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads

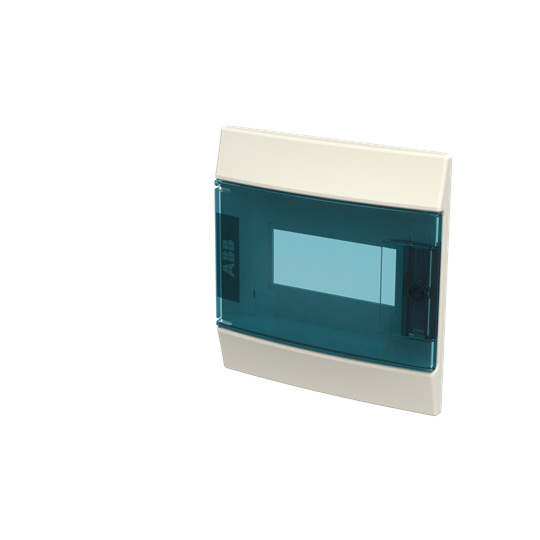

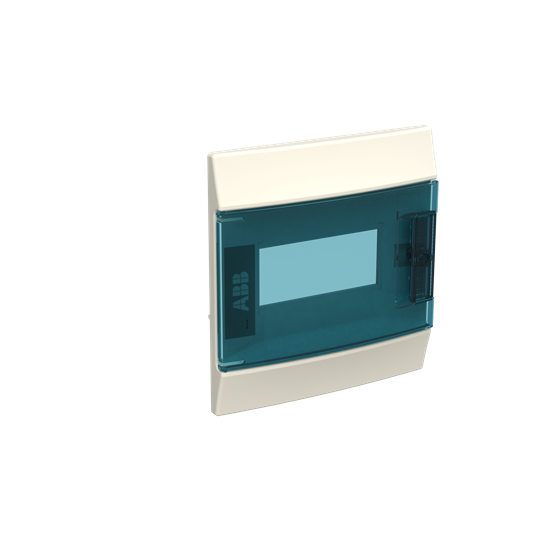

41F06X12

General Information

  • Extended Product Type:
    41F06X12
  • Product ID:
    1SLM004100A1601
  • ABB Type Designation:
    Mistral41F
  • EAN:
    8000126112375
  • Catalog Description:
    Front MISTRAL41F transp. door 6M
  • Long Description:
    Front MISTRAL41F flush transparent door 6M

Technical

  • Product Name:
    Consumer Unit (empty)
  • Power Loss:
    14 W
  • Number of Line Terminals:
    0
  • Number of Rows:
    1
  • ABB Type Designation:
    Mistral41F
  • Cover Plate Type:
    Door
  • Mounting Type:
    Flush-mounting
  • Door Type:
    Single
  • Enclosure Material:
    thermoplastic
  • Housing Material:
    Plastic
  • Transparent Door:
    Yes
  • Cover Style:
    with Notch
  • DIN Place Units:
    6
  • RAL Number:
    RAL 9016 - Traffic White
  • Color:
    white

Environmental

  • Degree of Protection:
    IP41
  • Protection Class:
    Isolated

Dimensions

  • Width in Number of Modular Spacings:
    6
  • Product Net Width:
    192 mm
  • Product Net Height:
    202 mm
  • Product Net Depth / Length:
    25 mm
  • Product Net Weight:
    0.37 kg

Container Information

  • Package Level 1 Units:
    box 18 piece
  • Package Level 1 Width:
    400 mm
  • Package Level 1 Height:
    510 mm
  • Package Level 1 Depth / Length:
    610 mm
  • Package Level 1 Gross Weight:
    7.66 kg
  • Package Level 1 EAN:
    8000126112382

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85371098
  • Country of Origin:
    Bulgaria (BG)
  • Selling Unit of Measure:
    piece

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 6:
    EC000214 - Small distribution board
  • ETIM 7:
    EC000214 - Small distribution board
  • ETIM 8:
    EC000214 - Small distribution board
  • WEEE Category:
    Product Not in WEEE Scope
  • Object Classification Code:
    U
