Detailed information for: EPD-BB500

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Data Sheet
Downloads
Where to buy online

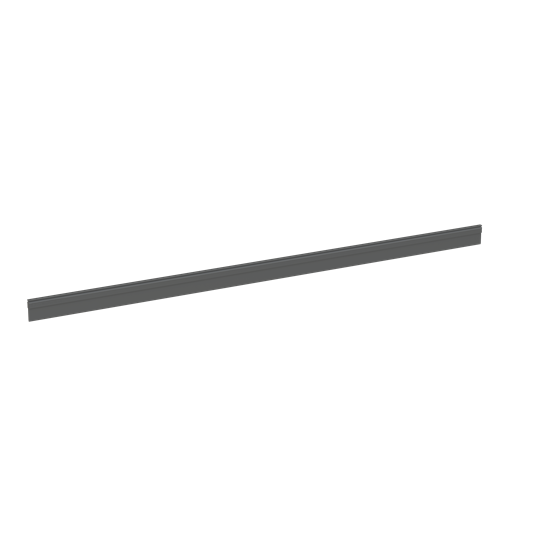

EPD-BB500

General Information

  • Extended Product Type:
    EPD-BB500
  • Product ID:
    2CDE605100R0500
  • EAN:
    4016779830140
  • Catalog Description:
    EPD-BB500 Protection Devices for DC Load Circuits
  • Long Description:
    The EPD24 protection devices expand ABB's product portfolio of DIN rail mounted devices with electronic overcurrent protection modules for selective protection of 24 V DC load circuits. Faults in individual branches caused by overload or short circuit are detected and selectively switched off so that other load current paths remain unaffected by the fault. In this way straightforward, quick troubleshooting is made possible.

Technical

  • Standards:
    UL 2367 recognized
    CSA 22.2
    UL1604
  • Number of Poles:
    1
  • Number of Phases:
    1
  • Number of Mountable Devices:
    10

Environmental

Dimensions

  • Product Net Width:
    4 mm
  • Product Net Height:
    20 mm
  • Product Net Depth / Length:
    500 mm
  • Product Net Weight:
    0.2 kg

Ordering

  • Minimum Order Quantity:
    1 piece
  • Package Level 1 Units:
    box 10 piece
  • Package Level 1 Gross Weight:
    2.039 kg
  • E-Number (Sweden):
    2040405

Certificates and Declarations

  • Certification Agency:
    CSA
    UKCA
  • Declaration of Conformity - CE:
    2CDK444004D0401

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC000215 - Phase busbar
  • ETIM 9:
    EC000215 - Phase busbar
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8536 69 90
  • UNSPSC:
    39121117
  • eClass:
    V11.0 : 27371306
  • IDEA Granular Category Code (IGCC):
    4378 >> Phase busbar
  • Object Classification Code:
    F
