Detailed information for: MG/A4.4.1

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

MG/A4.4.1

General Information

  • Extended Product Type:
    MG/A4.4.1
  • Product ID:
    2CDG110186R0011
  • EAN:
    4016779925525
  • Catalog Description:
    MG/A4.4.1 Zone Module, 4-fold, Surface Mounted
  • Long Description:
    to connect to Security Panel GM/A 8.1 via the Security-Bus. For expansion of the Security-Panel by 4 detector zones. Used for connection to the exterior perimeter detectors such as magnetic reed contacts and passive glass break sensors. The module has 4 zones to which several detectors can be connected. The status of each zone is displayed with a status LED. The Zone Module delivers the control signals and the supply voltage for the external detectors. There is no need for an external voltage supply, the Zone Modules are supplied via the Security-Bus.

Categories

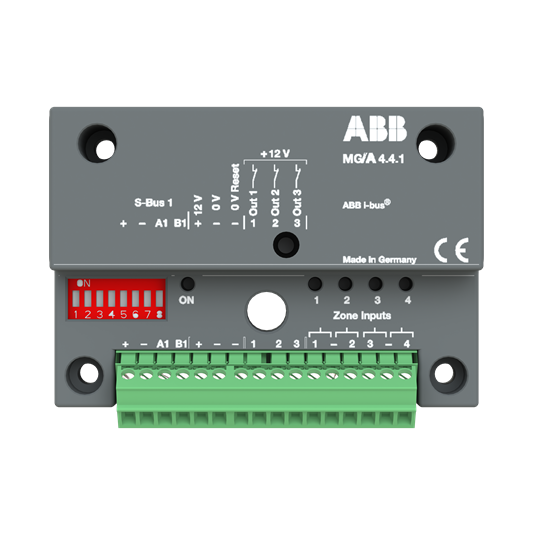

  • MG/A4.4.1 - image 0
  • MG/A4.4.1 - image 1
  • MG/A4.4.1 - image 2

Technical

  • Auxiliary Voltage AC/DC:
    12 V DC
  • Maximum Switching Current:
    0.2 A
  • Power Loss:
    1.173 W
  • Number of Outputs:
    3
  • Compatible Bus Systems:
    KNX (TP)
    S-Bus/XIB
  • Mounting Type:
    Surface Mounted
  • Manual Operation:
    No
  • Model Number:
    Signalling group module
  • Number of Batteries:
    0

Environmental

  • Degree of Protection:
    IP30
  • RoHS Status:
    Following EU Directive 2011/65/EU

Dimensions

  • Product Net Width:
    114 mm
  • Product Net Height:
    114 mm
  • Product Net Depth / Length:
    36 mm
  • Product Net Weight:
    0.166 kg

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    116 mm
  • Package Level 1 Height:
    41 mm
  • Package Level 1 Depth / Length:
    116 mm
  • Package Level 1 Gross Weight:
    0.2 kg
  • Package Level 1 EAN:
    4016779925525

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85319000
  • E-Number (Switzerland):
    405070305
  • Replacement Product ID (NEW):
    No replacement
  • Country of Origin:
    Germany (DE)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC002687 - Expansion module for surveillance systems
  • ETIM 8:
    EC002687 - Expansion module for surveillance systems
  • EPLAN Catalog Tree:
    Electrical engineering / Logic items / General
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8531 90 00
  • eClass:
    V11.0 : 27390314
  • Object Classification Code:
    A
