Detailed information for: 5522H-C03457 16W

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

5522H-C03457 16W

General Information

  • Extended Product Type:
    5522H-C03457 16W
  • Product ID:
    2CHH223457C6016
  • EAN:
    8592624112150
  • Catalog Description:

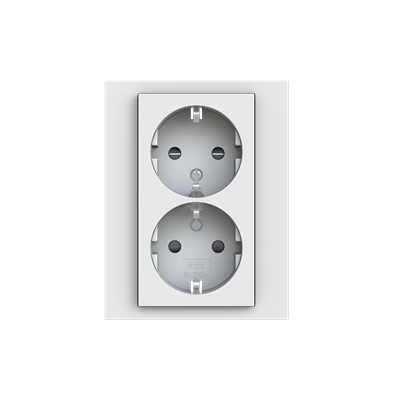

    5522H-C03457 16W Double schuko socket, shuttered
  • Long Description:
    Double schuko socket, shuttered

Technical

  • Rated Voltage (Ur):
    250 V
  • Rated Current (In):
    16 A
  • Frequency (f):
    50...50 Hz
  • Number of Phases:
    1
  • Number of Gangs:
    2
  • Connection Type:
    Plug Clamp
  • Mounting Type:
    Flush mounted (plaster)
  • Socket Outlet Type:
    Protective Contact (SCHUKO)
  • Type of Fastening:
    Mounting with Claw
    Mounting with Screw
  • Surface Finishing:
    Untreated
    Glossy
  • Material:
    Thermoplastic
    Plastic
  • Label Space Provided:
    No
  • Legend:
    Without imprint
  • Model Number:
    Protective contact (SCHUKO)
  • Color:
    White

Environmental

  • Degree of Protection:
    IP40

Technical UL/CSA

  • Short-Circuit Current Rating (SCCR):
    0 mA

Dimensions

  • Product Net Width:
    82 mm
  • Product Net Height:
    106 mm
  • Product Net Depth / Length:
    52 mm
  • Product Net Weight:
    0.1413 kg
  • Built-In Depth (t2):
    40 mm

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    195 mm
  • Package Level 1 Height:
    393 mm
  • Package Level 1 Depth / Length:
    195 mm
  • Package Level 1 Gross Weight:
    0.1584 kg
  • Package Level 1 EAN:
    8592624112150

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85366990
  • Country of Origin:
    Czech Republic (CZ)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC000125 - Socket outlet
  • ETIM 8:
    EC000125 - Socket outlet
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    85366990
