2001/6 U-500

General Information

  • Extended Product Type:
    2001/6 U-500
  • Product ID:
    2CKA001012A2195
  • EAN:
    4011395175224
  • Catalog Description:
    Flush Mounted Inserts Two-way switch
  • Long Description:
    Suitable for impuls cover plate with operating knob.

Categories

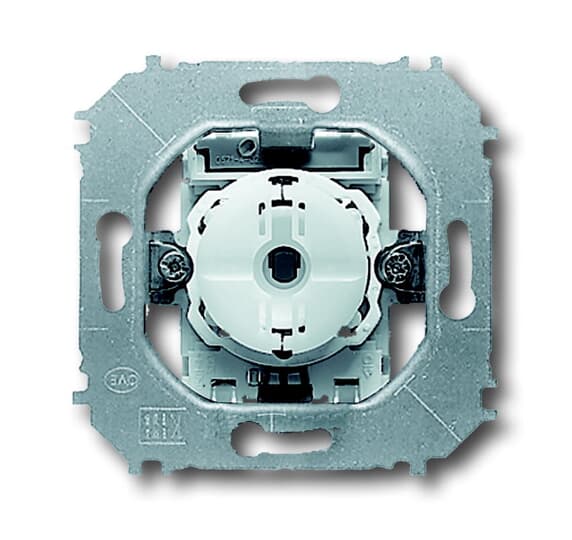

  • 2001/6 U-500 - image 0
+
–

Accessories

Identifier Description Type Qty Unit Of Measure
2CKA001413A0897
 Switch insert Two-way push switch with Neon lamp 1 CO 2021/6 UK 1 piece
2CKA001012A1705
 Switch insert Two-way push switch with N 1 CO 2021/6 UNV 1 piece
2CKA001012A2069
 Switch insert Two-way push switch with Feedback-signal contact 1 CO 2021/6 UNV-201 1 piece
2CKA001413A1051
 Switch insert Two-way push switch with Feedback-signal contact 1 CO 2021/6 US-201 1 piece
2CKA001022A0615
 Switch insert Two-way switch with Neon lamp 2001/6 UKGL-101 1 piece
2CKA001022A0623
 Switch insert 2-pole switch with Neon lamp 2001/2 UKGL-101 1 piece
2CKA001012A1622
 Switch insert Series switch 2001/5 U 1 piece
2CKA001012A2111
 Flush Mounted Inserts Series switch 2001/5 U-507 1 piece
2CKA001012A2109
 Flush Mounted Inserts Two-way switch 2001/6 U-507 1 piece
2CKA001012A1630
 Switch insert Intermediate switch 2001/7 U 1 piece
2CKA001754A4505
 Cover Frame 1gang ivory - impuls 1721-72-500 1 piece
2CKA001754A4514
 Cover Frame 1gang chrome - impuls 1721-726-500 1 piece
2CKA001754A4507
 Cover Frame 1gang solar gold - impuls 1721-73-500 1 piece
2CKA001754A4513
 Cover Frame 1gang alpine white - impuls 1721-74-500 1 piece
2CKA001754A4222
 Cover Frame 1gang alpine white - impuls 1721-74-507 1 piece
2CKA001754A4429
 Cover Frame 1gang studio white matt - impuls 1721-774 1 piece
2CKA001754A4430
 Cover Frame 1gang studio white matt - impuls 1721-774-507 1 piece
2CKA001754A4424
 Cover Frame 1gang black matt - impuls 1721-775 1 piece
2CKA001754A4510
 Cover Frame 1gang champagne metallic - impuls 1721-79-500 1 piece
2CKA001754A4225
 Cover Frame 1gang champagne metallic - impuls 1721-79-507 1 piece
2CKA001754A4313
 Cover Frame 2gang ivory - impuls 1722-72 1 piece
2CKA001754A4134
 Cover Frame 2gang chrome - impuls 1722-726 1 piece
2CKA001754A3542
 Cover Frame 2gang solar gold - impuls 1722-73 1 piece
2CKA001754A4525
 Cover Frame 2gang alpine white - impuls 1722-74-500 1 piece
2CKA001754A4226
 Cover Frame 2gang alpine white - impuls 1722-74-507 1 piece
2CKA001754A4431
 Cover Frame 2gang studio white matt - impuls 1722-774 1 piece
2CKA001754A4432
 Cover Frame 2gang studio white matt - impuls 1722-774-507 1 piece
2CKA001754A4425
 Cover Frame 2gang black matt - impuls 1722-775 1 piece
2CKA001754A2528
 Cover Frame 2gang champagne metallic - impuls 1722-79 1 piece
2CKA001754A4314
 Cover Frame 3gang ivory - impuls 1723-72 1 piece
2CKA001754A4135
 Cover Frame 3gang chrome - impuls 1723-726 1 piece
2CKA001754A3591
 Cover Frame 3gang solar gold - impuls 1723-73 1 piece
2CKA001754A2437
 Cover Frame 3gang alpine white - impuls 1723-74 1 piece
2CKA001754A4433
 Cover Frame 3gang studio white matt - impuls 1723-774 1 piece
2CKA001754A4426
 Cover Frame 3gang black matt - impuls 1723-775 1 piece
2CKA001754A2536
 Cover Frame 3gang champagne metallic - impuls 1723-79 1 piece
2CKA001754A4315
 Cover Frame 4gang ivory - impuls 1724-72 1 piece
2CKA001754A4136
 Cover Frame 4gang chrome - impuls 1724-726 1 piece
2CKA001754A3641
 Cover Frame 4gang solar gold - impuls 1724-73 1 piece
2CKA001754A2445
 Cover Frame 4gang alpine white - impuls 1724-74 1 piece
2CKA001754A4224
 Cover Frame 4gang alpine white - impuls 1724-74-507 1 piece
2CKA001754A4434
 Cover Frame 4gang studio white matt - impuls 1724-774 1 piece
2CKA001754A4435
 Cover Frame 4gang studio white matt - impuls 1724-774-507 1 piece
2CKA001754A4427
 Cover Frame 4gang black matt - impuls 1724-775 1 piece
2CKA001754A2544
 Cover Frame 4gang champagne metallic - impuls 1724-79 1 piece
2CKA001754A4223
 Cover Frame 4gang champagne metallic - impuls 1724-79-507 1 piece
2CKA001754A4316
 Cover Frame 5gang ivory - impuls 1725-72 1 piece
2CKA001754A4137
 Cover Frame 5gang chrome - impuls 1725-726 1 piece
2CKA001754A3690
 Cover Frame 5gang solar gold - impuls 1725-73 1 piece
2CKA001754A2452
 Cover Frame 5gang alpine white - impuls 1725-74 1 piece
2CKA001754A4436
 Cover Frame 5gang studio white matt - impuls 1725-774 1 piece
2CKA001754A4428
 Cover Frame 5gang black matt - impuls 1725-775 1 piece
2CKA001754A2551
 Cover Frame 5gang champagne metallic - impuls 1725-79 1 piece
2CKA001714A0295
 Label Braille Symbol "light" - Allwetter 44 (IP 44) 2144 LI 1 piece
2CKA001784A0545
 Illumination set Switch/push button Orange Neon lamp 230 V - Busch-Duro 2000 SM 8350 1 piece
2CKA001784A0560
 Illumination set Switch/push button Orange Neon lamp 230 V - Busch-Duro 2000 SM 8352 1 piece
2CKA001784A0578
 Illumination set Switch/push button Orange Neon lamp 230 V - Busch-Duro 2000 SM 8353 1 piece
2CKA001784A0552
 Illumination set Orange Neon lamp 230 V red - Busch-Duro 2000 SM 8360 1 piece
2CKA001784A0586
 Illumination set Switch/push button Orange Neon lamp 230 V yellow - Busch-Duro 2000 SM 8362 1 piece
2CKA001784A0594
 Illumination set Switch/push button Orange Neon lamp 230 V white - Busch-Duro 2000 SM 8363 1 piece

Installation

Technical

  • Data Sheet, Technical Information:
    No document needed
  • Rated Voltage (Ur):
    250 V
  • Auxiliary Voltage AC/DC:
    250 V AC/DC
  • Rated Current (In):
    10 A
  • Maximum Switching Current:
    Fluorescent Lamps 10 A
  • Number of Rocker Switches:
    1
  • Design Range:
    impuls
  • Wiring Configuration:
    Two-way switch
  • Actuator Type:
    Rocker/button
  • Connection Type:
    Plug Clamp
  • Mounting Type:
    Flush Mounted
  • Surface Finishing:
    Untreated
    Matt
  • Material:
    Thermoplastic
  • Label Space Provided:
    No
  • Illumination:
    Non-illuminated
  • RAL Number:
    RAL 1013 - Oyster White

Environmental

  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E0186
  • REACH Declaration:
    2CKA309999E9999
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Dimensions

  • Product Net Width:
    71 mm
  • Product Net Height:
    71 mm
  • Product Net Depth / Length:
    45 mm
  • Product Net Weight:
    69 g
  • Built-In Depth (t2):
    32 mm

Ordering

  • Replaced Product ID (OLD):
    1012-0-2195

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001590 - Installation switch
  • ETIM 9:
    EC001590 - Installation switch
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8536 50 80
  • eClass:
    V11.0 : 27144053
