1095 UF

General Information

  • Extended Product Type:
    1095 UF
  • Product ID:
    2CKA001032A0497
  • EAN:
    4011395106914
  • Catalog Description:
    1095 UF Flush Mounted Inserts Flush-mounted installation boxes and inserts
  • Long Description:

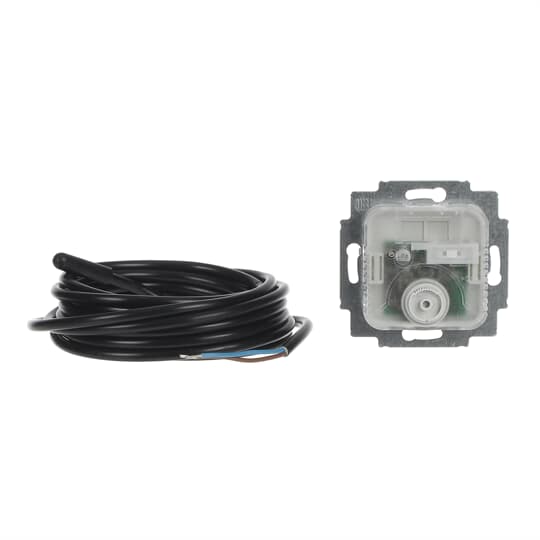

    With built-in slide switch and control lamp for nightly reduction of 4 K. Switch contact opens when the set temperature is reached. With fixing claws. Remote sensor cable length: 4 m. Sensor =NTC, 10 kilo-ohm at 25 degrees C. Adjusting range: +10 to +50° C. Connecting cable: 1mm² to 2.5 mm² Separate terminal to activate nighttime mode and reduction of room temperature by 4K. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.

Categories

Show All...

Technical

  • Suitable For:
    2CKA001710A3557
    2CKA001710A3558
    2CKA001710A3555
    2CKA001710A3556
    2CKA001710A3559
    2CKA001710A3560
    2CKA001710A3561
    2CKA001710A3565
    2CKA001710A3562
    2CKA001710A3566
    2CKA001710A3567
    2CKA001710A3563
    2CKA001710A3747
    2CKA001710A3576
    2CKA001710A3746
    2CKA001710A3577
    2CKA001710A3817
    2CKA001710A3579
    2CKA001710A3848
    2CKA001710A3630
    2CKA001710A3828
    2CKA001710A3568
    2CKA001710A3669
    2CKA001710A3569
    2CKA001710A3570
    2CKA001710A3571
    2CKA001710A3572
    2CKA001710A3573
    2CKA001710A3574
    2CKA001710A3756
    2CKA001710A4063
  • Rated Voltage (Ur):
    230 V
  • Auxiliary Voltage AC/DC:
    230 V AC/DC
  • Rated Current (In):
    16 A
  • Operating Mode:
    Turn
  • Product Range:
    Flush-mounted installation boxes and inserts
  • Connection Type:
    Three-Four Wired
  • Mounting Type:
    Flush Mounted
  • Sensor Type:
    Resistance sensor
  • Model Number:
    On/Off
  • Battery Weight:
    0 g
  • Number of Batteries:
    0

Environmental

  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Temperature Class Default:
    I

Dimensions

  • Product Net Width:
    7.1 cm
  • Product Net Height:
    7.1 cm
  • Product Net Depth / Length:
    5.2 cm
  • Product Net Weight:
    0.244 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.108 m
  • Package Level 1 Height:
    0.072 m
  • Package Level 1 Depth / Length:
    0.108 m
  • Package Level 1 Gross Weight:
    287 g
  • Package Level 1 EAN:
    4011395106914
  • Package Level 2 Units:
    10 piece
  • Package Level 2 Width:
    0.253 m
  • Package Level 2 Height:
    0.193 m
  • Package Level 2 Depth / Length:
    0.293 m
  • Package Level 2 Gross Weight:
    3.157 kg
  • Package Level 3 Units:
    600 piece
  • Package Level 3 Width:
    0.8 m
  • Package Level 3 Height:
    1.115 m
  • Package Level 3 Depth / Length:
    1.2 m
  • Package Level 3 Gross Weight:
    210.5 kg

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    90321020
  • Country of Origin:
    Germany (DE)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC010927 - Room thermostat
  • ETIM 8:
    EC010927 - Room thermostat
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    9032 10 20
