Detailed information for: 1095 U-500

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...
Data Sheet
Downloads
Where to buy online

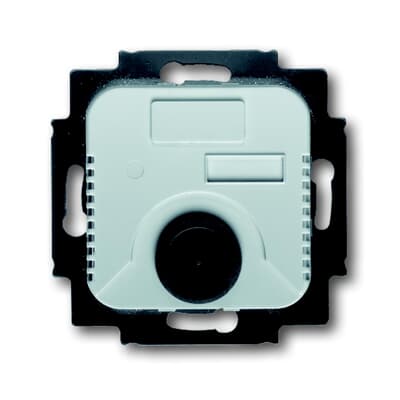

1095 U-500

General Information

  • Extended Product Type:
    1095 U-500
  • Product ID:
    2CKA001032A0514
  • EAN:
    4011395176252
  • Catalog Description:
    1095 U-500 Flush Mounted Inserts Flush-mounted installation boxes and inserts
  • Long Description:
    With built-in slide switch and control lamp for nightly reduction of 4 K. Switch contact opens when the set temperature is reached. With fixing claws. Separate terminal to activate nighttime mode and reduction of room temperature by 4K. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.

Categories

Show All...

Technical

  • Suitable For:
    2CKA001710A3534
    2CKA001710A3546
    2CKA001710A3548
    2CKA001710A3542
    2CKA001710A3540
    2CKA001710A3550
    2CKA001710A3554
    2CKA001710A3552
    2CKA001710A3535
    2CKA001710A3533
    2CKA001710A3532
    2CKA001710A3531
    2CKA001710A3530
    2CKA001710A3553
    2CKA001710A3551
    2CKA001710A3629
    2CKA001710A3538
    2CKA001710A3536
    2CKA001710A3549
    2CKA001710A3539
    2CKA001710A3541
    2CKA001710A3547
    2CKA001710A3545
    2CKA001710A3544
    2CKA001710A3537
    2CKA001710A3543
    2CKA001710A3755
    2CKA001710A3668
    2CKA001710A3744
    2CKA001710A3745
    2CKA001710A3816
    2CKA001710A3847
    2CKA001710A3827
    2CKA001710A4062
  • Rated Voltage (Ur):
    230 V
  • Auxiliary Voltage AC/DC:
    230 V AC/DC
  • Rated Current (In):
    10 A
  • Operating Mode:
    Turn
  • Product Range:
    Flush-mounted installation boxes and inserts
  • Connection Type:
    Three-Four Wired
  • Sensor Type:
    Resistance sensor
  • Model Number:
    On/Off
  • Battery Weight:
    0 g
  • Number of Batteries:
    0

Environmental

  • Ambient Air Temperature:
    Operation 5 ... +30 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Temperature Class Default:
    I

Dimensions

  • Product Net Weight:
    0.12 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    92 mm
  • Package Level 1 Height:
    58 mm
  • Package Level 1 Depth / Length:
    78 mm
  • Package Level 1 Gross Weight:
    0.12 kg
  • Package Level 1 EAN:
    4011395176252
  • Package Level 2 Units:
    10 piece
  • Package Level 2 Width:
    168 mm
  • Package Level 2 Height:
    112 mm
  • Package Level 2 Depth / Length:
    298 mm
  • Package Level 2 Gross Weight:
    1.375 kg

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    90321020
  • Country of Origin:
    Germany (DE)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC010927 - Room thermostat
  • ETIM 8:
    EC010927 - Room thermostat
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    9032 10 20
