Detailed information for: 1091 U-500

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

1091 U-500

General Information

Extended Product Type:

1091 U-500
Product ID:

2CKA001032A0518
EAN:

4011395208717
Catalog Description:

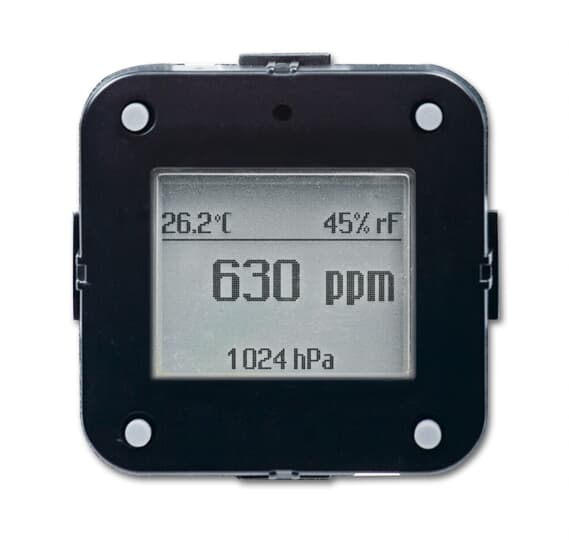

1091 U-500 FM-insert with CO2 sensor
Long Description:

With display for carbon dioxide, humidity, temperature and air pressure. Setting values: carbon dioxide 800 ppm - 1500 ppm, humidity 40% - 95%. With 2 zero-potential relay contacts. Nominal voltage: 230 V~ Nominal current: 6 A cos φ = 1 Without claw fixation. To fit cover plate 6435-xxx.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA006430A0292	6435-21 Cover plate with legend for Time switch bronze - alpha	6435-21	1	piece
2CKA006430A0285	6435-212 Cover plate with legend for Time switch white - Busch-Duro 2000	6435-212	1	piece
2CKA006430A0401	6435-214-500 Cover Plates (partly incl. Insert) for Time switch alpine white	6435-214-500	1	piece
2CKA006430A0293	6435-22G Cover plate with legend for Time switch ivory - alpha	6435-22G	1	piece
2CKA006430A0295	6435-24G Cover plate with legend for Time switch studio white - alpha	6435-24G	1	piece
2CKA006430A0289	6435-260 Cover plate with legend for Time switch palladium - alpha	6435-260	1	piece
2CKA006430A0290	6435-266 Cover plate with legend for Time switch titanium - alpha	6435-266	1	piece
2CKA006430A0341	6435-72 Cover Plate for Time switch ivory - impuls	6435-72	1	piece
2CKA006430A0300	6435-74 Cover plate with legend for Time switch alpine white - impuls	6435-74	1	piece
2CKA006430A0380	6435-774 Cover plate with legend for Time switch studio white matt - impuls	6435-774	1	piece
2CKA006430A0382	6435-775 Cover plate with legend for Time switch black matt - impuls	6435-775	1	piece
2CKA006430A0342	6435-783 Cover plate with legend for Time switch aluminium silver - impuls	6435-783	1	piece
2CKA006430A0302	6435-79 Cover plate with legend for Time switch champagne metallic - impuls	6435-79	1	piece
2CKA006430A0351	6435-803 Cover plate with legend for Time switch grey metallic - 63x63	6435-803	1	piece
2CKA006430A0303	6435-81 Cover plate with legend for Time switch anthracite - 63x63	6435-81	1	piece
2CKA006430A0304	6435-82 Cover plate with legend for Time switch ivory white - 63x63	6435-82	1	piece
2CKA006430A0305	6435-83 Cover plate with legend for Time switch aluminium silver - 63x63	6435-83	1	piece
2CKA006430A0306	6435-84 Cover plate with legend for Time switch studio white - 63x63	6435-84	1	piece
2CKA006430A0405	6435-840-500 Cover Plates (partly incl. Insert) for Time switch antique brass - 63x63	6435-840-500	1	piece
2CKA006430A0344	6435-866 Cover plate with legend for Time switch stainless steel - Pure Stainless Steel	6435-866	1	piece
2CKA006430A0388	6435-884 Cover plate with legend for Time switch studio white matt - 63x63	6435-884	1	piece
2CKA006430A0389	6435-885 Cover plate with legend for Time switch black matt - 63x63	6435-885	1	piece
2CKA006430A0353	6435-92-507 Cover Plates (partly incl. Insert) for Time switch white	6435-92-507	1	piece
2CKA006430A0392	6435-93-507 Cover Plates (partly incl. Insert) for Time switch champagne	6435-93-507	1	piece
2CKA006430A0352	6435-94-507 Cover Plates (partly incl. Insert) for Time switch alpine white	6435-94-507	1	piece
2CKA006430A0393	6435-95-507 Cover Plates (partly incl. Insert) for Time switch château-black	6435-95-507	1	piece
2CKA006430A0394	6435-96-507 Cover Plates (partly incl. Insert) for Time switch chalet-white	6435-96-507	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Rated Voltage (U_r):

230 V
Rated Current (I_n):

6 A
Load Type:

Inductive load
Mounting Type:

Flush Mounted
Sensor Type:

CO2 sensor
Screen Size:

1.68 in
Application Function:

Room Climate Control

Environmental

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E0240
REACH Declaration:

2CKA309999E9999
SCIP:

84c471f9-8358-4704-9dd4-decd440a0180 Germany (DE)

Dimensions

Product Net Width:

71 mm
Product Net Height:

71 mm
Product Net Depth / Length:

42 mm
Product Net Weight:

96.5 g
Built-In Depth (t₂):

32 mm

Ordering

Minimum Order Quantity:

1 piece
Package Level 1 Units:

carton 1 piece
Package Level 1 Gross Weight:

0.124 kg
Customs Tariff Number:

85365080
Country of Origin:

Germany (DE)

Certificates and Declarations

Declaration of Conformity - CE:

2CKA100000E0144

Classifications

ETIM 8:

EC001588 - Electronic switch
ETIM 9:

EC001588 - Electronic switch
WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:

Business To Consumer
CN8:

8536 50 80
eClass:

V11.0 : 27144054
