Detailed information for: 1766-866

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

1766-866

General Information

Extended Product Type:

1766-866
Product ID:

2CKA001710A3765
EAN:

4011395087848
Catalog Description:

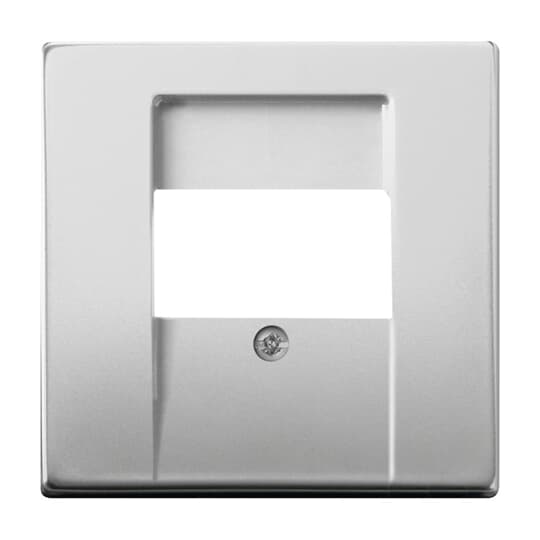

1766-866 Cover Plate TAE 1 gang stainless steel - Pure Stainless Steel
Long Description:

For telephone connection unit. ./. For USB, VGA, HDMI inserts and communication adapter. For loudspeaker connection box. Suitable for part number 0248/0x-101. For data modules. Suitable for Art. No. 0219/12 and 0219/13. For modular outlets with 90° RJ45 outlet from Telegärtner (type MJ and WE). Surface painted. Anti fingerprint.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA000230A0421	0261/21 USB connection box USB	0261/21	1	piece
2CKA000230A0386	0241/04 Flush Mounted Inserts alpine white	0241/04	1	piece
2CKA000230A0389	0242/04 Data connecting insert TAE 3 gang alpine white	0242/04	1	piece
2CKA000230A0392	0243/04 Data connecting insert TAE 3 gang alpine white	0243/04	1	piece
2CKA000230A0439	0262 F Jack SAT 2 gang silver	0262	1	piece
2CKA000230A0461	0264 Mini-jack 3,5 mm Communication adapter chrome gloss	0264	1	piece
2CKA000230A0381	UAE 8(6)TAE 6 F+N Data connecting insert UAE / TAE 2 gang white	UAE 8(6)TAE 6 F+N	1	piece
2CKA000230A0395	0219/12 Assembly adapter Modular Jack 2 gang silver	0219/12	1	piece
2CKA000230A0413	0219-101 Universal module Bus (jack) metal clad	0219-101	1	piece
2CKA006400A0094	6472 U-500-101 Flush Mounted Inserts	6472 U-500-101	1	piece
2CKA001754A4500	1721-866K-500 Cover Frame 1gang(s) stainless steel - Pure Stainless Steel	1721-866K-500	1	piece
2CKA001754A4501	1722-866K-500 Cover Frame 2gang(s) stainless steel - Pure Stainless Steel	1722-866K-500	1	piece
2CKA001754A4319	1723-866K Cover Frame 3gang(s) stainless steel - Pure Stainless Steel	1723-866K	1	piece
2CKA001754A4320	1724-866K Cover Frame 4gang(s) stainless steel - Pure Stainless Steel	1724-866K	1	piece
2CKA001754A4321	1725-866K Cover Frame 5gang(s) stainless steel - Pure Stainless Steel	1725-866K	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Application:

TAE
Design Range:

Pure Stainless Steel
Mounting Type:

Flush Mounted
Type of Fastening:

Mounting with Screw
Type of Indicator:

Without indication field
Outlet Orientation:

Straight
Surface Finishing:

Surface protection: Untreated
Surface finishing: Matt
Material:

Stainless steel
Color:

stainless steel
Application Function:

Data Communication / Multimedia

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E0869
REACH Declaration:

2CKA309999E9999

Dimensions

Product Net Width:

71 mm
Product Net Height:

32 mm
Product Net Depth / Length:

71 mm
Product Net Weight:

30 g
Built-In Depth (t₂):

32 mm

Ordering

Minimum Order Quantity:

1 piece
Package Level 1 Units:

carton 10 piece
Package Level 1 Gross Weight:

0.3 kg
Customs Tariff Number:

85389099
E-Number (Finland):

7004056
E-Number (Sweden):

1817779
Country of Origin:

Germany (DE)

Certificates and Declarations

Declaration of Conformity - CE:

2CKA200000E0869

Classifications

ETIM 8:

EC000018 - Insert/cover for communication technology
ETIM 9:

EC000018 - Insert/cover for communication technology
WEEE Category:

Product Not in WEEE Scope
CN8:

8538 90 99
eClass:

V11.0 : 27144049
