Detailed information for: 1758-214

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

1758-214

General Information

Extended Product Type:

1758-214
Product ID:

2CKA001724A1663
EAN:

4011395469507
Catalog Description:

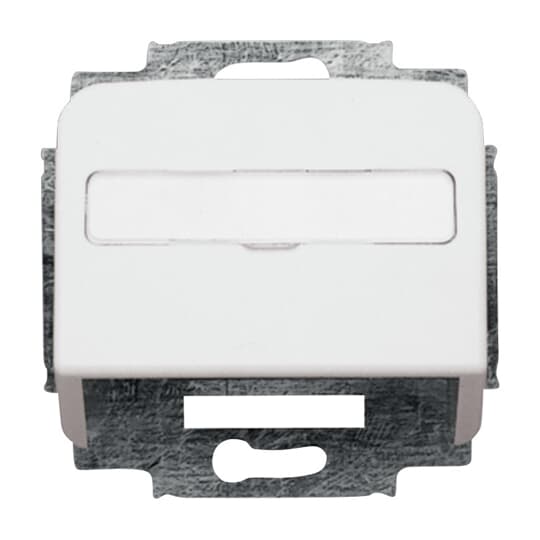

Cover plate with labelling field For data connection housing 2 gang alpine white - Reflex SI
Long Description:

for communication devices. with labelling field 53.7 x 11.7 mm. Without claws.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA001764A0059	Socket Fixing Plate XLR 1 gang anthracite - 63x63	1854 EB	1	piece
2CKA001764A0018	Socket Fixing Plate D-sub-miniature 1 gang anthracite - 63x63	1850 EB	1	piece
2CKA001764A0075	Socket Fixing Plate BNC/TNC 1 gang anthracite - 63x63	1856 EB	1	piece
2CKA001764A0034	Socket Fixing Plate D-sub-miniature 1 gang anthracite - 63x63	1852 EB	1	piece
2CKA001764A0026	Socket Fixing Plate D-sub-miniature 1 gang anthracite - 63x63	1851 EB	1	piece
2CKA001764A0042	Socket Fixing Plate XLR 1 gang anthracite - 63x63	1853 EB	1	piece
2CKA001764A0083	Socket Fixing Plate BNC/TNC 2 gang anthracite - 63x63	1857 EB	1	piece
2CKA001764A0117	Socket Fixing Plate Communication devices 1 gang anthracite - 63x63	1860 EB	1	piece
2CKA001764A0141	Socket Fixing Plate Communication devices 1 gang anthracite - 63x63	1863 EB	1	piece
2CKA001764A0174	Socket Fixing Plate Modular Jack 1 gang Cat 3 anthracite - 63x63	1866 EB	1	piece
2CKA001764A0158	Socket Fixing Plate Twinax 1 gang anthracite - 63x63	1864 EB	1	piece
2CKA001764A0133	Socket Fixing Plate Communication devices 2 gang anthracite - 63x63	1862 EB	1	piece
2CKA001764A0166	Socket Fixing Plate Twinax 2 gang anthracite - 63x63	1865 EB	1	piece
2CKA001764A0125	Socket Fixing Plate Communication devices 1 gang anthracite - 63x63	1861 EB	1	piece
2CKA001764A0109	Socket Fixing Plate Communication devices 2 gang anthracite - 63x63	1859 EB	1	piece
2CKA001764A0091	Socket Fixing Plate BNC/TNC 2 gang anthracite - 63x63	1858 EB	1	piece
2CKA001764A0182	Socket Fixing Plate Modular Jack 2 gang anthracite - 63x63	1867 EB	1	piece
2CKA001764A0273	Socket Fixing Plate Modular Jack 2 gang Cat 3 anthracite - 63x63	1871 EB	1	piece
2CKA001764A0307	Socket Fixing Plate Optical fiber 2 gang anthracite - 63x63	1874 EB	1	piece
2CKA001764A0332	Socket Fixing Plate XLR 2 gang anthracite - 63x63	1876 EB	1	piece
2CKA001764A0281	Socket Fixing Plate Modular Jack 2 gang Cat 5 anthracite - 63x63	1872 EB	1	piece
2CKA001764A0315	Socket Fixing Plate Modular Jack 2 gang Cat 6 anthracite - 63x63	1875 EB	1	piece
2CKA001764A0216	Socket Fixing Plate Optical fiber 2 gang anthracite - 63x63	1870 EB	1	piece
2CKA001764A0208	Socket Fixing Plate Blind cap anthracite - 63x63	1869 EB	1	piece
2CKA001754A4496	Cover Frame 1gang alpine white - Reflex SI	1721 NS-214-500	1	piece
2CKA001754A4497	Cover Frame 1gang alpine white - Reflex SI Linear	1721 NSKA-214-500	1	piece
2CKA001754A2163	Cover Frame 2gang alpine white - Reflex SI	1722 NS-214	1	piece
2CKA001754A4059	Cover Frame 2gang alpine white - Reflex SI Linear	1722 NSKA-214	1	piece
2CKA001754A3724	Cover Frame 3gang alpine white - Reflex SI	1723 NS-214	1	piece
2CKA001754A4061	Cover Frame 3gang alpine white - Reflex SI Linear	1723 NSKA-214	1	piece
2CKA001754A4183	Cover Frame 4gang alpine white - Reflex SI/SI Linear	1724 NS-214 MU	1	piece
2CKA001754A4063	Cover Frame 4gang alpine white - Reflex SI Linear	1724 NSKA-214	1	piece
2CKA001754A2171	Cover Frame 2gang alpine white - Reflex SI	1732 NS-214	1	piece
2CKA001754A4060	Cover Frame 2gang alpine white - Reflex SI Linear	1732 NSKA-214	1	piece
2CKA001754A3732	Cover Frame 3gang alpine white - Reflex SI	1733 NS-214	1	piece
2CKA001754A4062	Cover Frame 3gang alpine white - Reflex SI Linear	1733 NSKA-214	1	piece
2CKA001754A4101	Cover Frame 4gang alpine white - Reflex SI/SI Linear	1734 NS-214 MU	1	piece
2CKA001754A4064	Cover Frame 4gang alpine white - Reflex SI Linear	1734 NSKA-214	1	piece
2CKA001725A1009	Cover Frame 1gang alpine white - Reflex SI	2511 JH-214	1	piece
2CKA001725A1536	Cover Frame 1gang alpine white - Reflex SI	2511-214-500	1	piece
2CKA001725A1464	Cover Frame 1gang alpine white - Reflex SI	2511-214-507	1	piece
2CKA001725A1539	Cover Frame 1gang alpine white - Reflex SI Linear	2511-214K-102-500	1	piece
2CKA001725A1537	Cover Frame 2gang alpine white - Reflex SI	2512-214-500	1	piece
2CKA001725A1466	Cover Frame 2gang alpine white - Reflex SI	2512-214-507	1	piece
2CKA001725A1540	Cover Frame 2gang alpine white - Reflex SI Linear	2512-214K-102-500	1	piece
2CKA001725A1538	Cover Frame 3gang alpine white - Reflex SI	2513-214-500	1	piece
2CKA001725A1541	Cover Frame 3gang alpine white - Reflex SI Linear	2513-214K-102-500	1	piece
2CKA001725A1543	Cover Frame 4gang alpine white - Reflex SI	2514-214-500	1	piece
2CKA001725A1497	Cover Frame 4gang alpine white - Reflex SI Linear	2514-214K-102	1	piece
2CKA001725A0969	Cover Frame 5gang alpine white - Reflex SI	2515-214	1	piece
2CKA001725A1498	Cover Frame 5gang alpine white - Reflex SI Linear	2515-214K-102	1	piece
2CKA001719A0061	Cover Frame 1gang alpine white - Reflex SI	2518-214	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Application:

For data connection housing
Function:

with mounting plate
Design Range:

Reflex SI
Reflex SI Linear
Reflex SI/SI Linear
Mounting Type:

Flush Mounted
Type of Fastening:

Mounting with Screw
Type of Indicator:

With indication plate
Outlet Orientation:

Inclined
Surface Finishing:

Surface protection: Untreated
Surface finishing: Glossy
Material:

Thermoplastic
Label Space Provided:

Yes
RAL Number:

RAL 9010 - Pure White
Color:

alpine white
Application Function:

Data Communication / Multimedia

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E1229
REACH Declaration:

2CKA309999E9999
Conflict Minerals Reporting Template (CMRT):

9AKK108468A3363

Dimensions

Product Net Width:

71 mm
Product Net Height:

71 mm
Product Net Depth / Length:

39 mm
Product Net Weight:

45 g
Built-In Depth (t₂):

32 mm
Dimension Diagram:

2CKA000097E0392

Ordering

Replaced Product ID (OLD):

1724-0-1663

Certificates and Declarations

Declaration of Conformity - CE:

2CKA200000E1229

Classifications

ETIM 8:

EC000018 - Insert/cover for communication technology
ETIM 9:

EC000018 - Insert/cover for communication technology
WEEE Category:

Product Not in WEEE Scope
CN8:

8538 90 99
eClass:

V11.0 : 27144049
