Detailed information for: 1814

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at the bottom of the page.

Print...
Print to Pdf...

Data Sheet

Downloads

Where to buy online

1814

General Information

Extended Product Type:

1814
Product ID:

2CKA001753A8063
EAN:

4011395743904
Catalog Description:

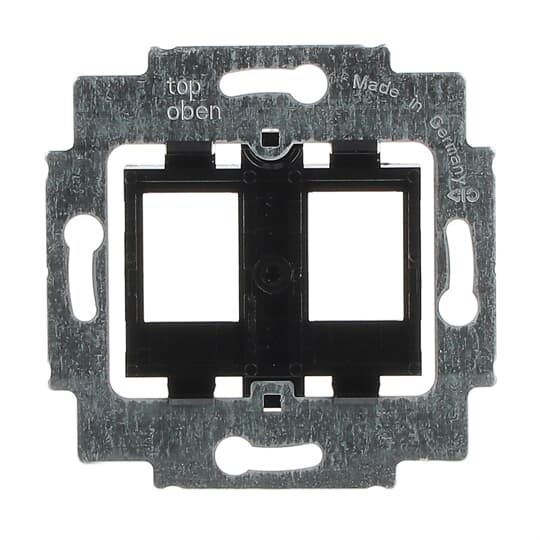

1814 Mounting Plate Modular Jack 2 gang black
Long Description:

For MTRJ or 2 modular jack inserts. For systems: Ackermann, AMP / tyco Electronics (Slim Line (SL) -SM 2gang/switches: 110Connect Jacks, Toolless Jacks / Standard 110Connect Jacks), Brand-Rex, CombiNet, EFB Electronic, Telena. For 2 fiber optic modules of the following types: AMP / tyco Electronics MTRJ. Pitch dimensions: (WxH) approx. 14.8 x 20.4 mm. Without claws.

Accessories

Identifier	Description	Type	Qty	Unit Of Measure
2CKA000225A0086	0211 Modular jack insert Bus (jack)	0211	1	piece
2CKA001753A9186	1800-21 Cover plate with labelling field Modular Jack 2 gang bronze - alpha	1800-21	1	piece
2CKA001753A9975	1800-212-500 Cover Plates (partly incl. Insert) Modular Jack 2 gang white - Busch-Duro 2000	1800-212-500	1	piece
2CKA001753A9989	1800-214-500 Cover Plates (partly incl. Insert) Modular Jack 2 gang alpine white - Reflex SI/SI Linear	1800-214-500	1	piece
2CKA001710A2645	1800-22G Cover plate with labelling field Modular Jack 2 gang ivory - alpha	1800-22G	1	piece
2CKA001710A2710	1800-24G Cover plate with labelling field Modular Jack 2 gang studio white - alpha	1800-24G	1	piece
2CKA001710A3318	1800-260 Cover Plate Modular Jack 2 gang palladium - alpha	1800-260	1	piece
2CKA001710A3344	1800-266 Cover plate with labelling field Modular Jack 2 gang titanium - alpha	1800-266	1	piece
2CKA001753A0081	1800-72 Cover Plate Modular Jack 2 gang ivory - impuls	1800-72	1	piece
2CKA001753A8667	1800-74 Cover plate with labelling field Modular Jack 2 gang alpine white - impuls	1800-74	1	piece
2CKA001753A0191	1800-774 Cover plate with labelling field Modular Jack 2 gang studio white matt - impuls	1800-774	1	piece
2CKA001753A0160	1800-775 Cover plate with labelling field Modular Jack 2 gang black matt - impuls	1800-775	1	piece
2CKA001753A0082	1800-783 Cover plate with labelling field Modular Jack 2 gang aluminium silver - impuls	1800-783	1	piece
2CKA001753A8691	1800-79 Cover Plate Modular Jack 2 gang champagne metallic - impuls	1800-79	1	piece
2CKA001710A3856	1800-803 Cover plate with labelling field Modular Jack 2 gang grey metallic - 63x63	1800-803	1	piece
2CKA001710A3627	1800-81 Cover plate with labelling field Modular Jack 2 gang anthracite - 63x63	1800-81	1	piece
2CKA001710A3158	1800-82 Cover plate with labelling field Modular Jack 2 gang ivory white - 63x63	1800-82	1	piece
2CKA001710A3676	1800-83 Cover plate with labelling field Modular Jack 2 gang aluminium silver - 63x63	1800-83	1	piece
2CKA001710A4085	1800-840-500 Cover Plate Modular Jack 2 gang antique brass - 63x63	1800-840-500	1	piece
2CKA001710A3990	1800-84-500 Cover Plates (partly incl. Insert) Modular Jack 2 gang studio white - 63x63	1800-84-500	1	piece
2CKA001710A3767	1800-866 Cover plate with labelling field Modular Jack 2 gang stainless steel - Pure Stainless Steel	1800-866	1	piece
2CKA001710A3887	1800-884 Cover plate with labelling field Modular Jack 2 gang studio white matt - 63x63	1800-884	1	piece
2CKA001710A3910	1800-885 Cover plate with labelling field Modular Jack 2 gang black matt - 63x63	1800-885	1	piece
2CKA001710A3944	1800-92-507 Cover Plates (partly incl. Insert) Modular Jack 2 gang white - Basic55	1800-92-507	1	piece
2CKA001710A3941	1800-93-507 Cover Plates (partly incl. Insert) Modular Jack 2 gang champagne - Basic55	1800-93-507	1	piece
2CKA001710A3945	1800-94-507 Cover Plates (partly incl. Insert) Modular Jack 2 gang alpine white - Basic55	1800-94-507	1	piece
2CKA001710A3942	1800-95-507 Cover Plates (partly incl. Insert) Modular Jack 2 gang château-black - Basic55	1800-95-507	1	piece
2CKA001710A3943	1800-96-507 Cover Plates (partly incl. Insert) Modular Jack 2 gang chalet white - Basic55	1800-96-507	1	piece

Installation

Instructions and Manuals:

No document needed

Technical

Data Sheet, Technical Information:

No document needed
Application:

Modular Jack
Mounting Type:

Flush Mounted
Type of Fastening:

Mounting with Screw
Type of Indicator:

Without indication field
Outlet Orientation:

Straight
Surface Finishing:

Surface protection: Untreated
Surface finishing: Matt
Material:

Thermoplastic
Color:

black
Application Function:

Data Communication / Multimedia

Environmental

Degree of Protection:

IP20
RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information:

2CKA200000E2413
REACH Declaration:

2CKA309999E9999

Dimensions

Product Net Width:

71 mm
Product Net Height:

32 mm
Product Net Depth / Length:

71 mm
Product Net Weight:

27 g
Built-In Depth (t₂):

32 mm
Dimension Diagram:

2CKA000097E0448

Ordering

Minimum Order Quantity:

1 piece
Package Level 1 Units:

carton 10 piece
Package Level 1 Gross Weight:

0.276 kg
Customs Tariff Number:

85389099
E-Number (Finland):

7204085
Country of Origin:

Germany (DE)

Certificates and Declarations

Declaration of Conformity - CE:

2CKA200000E2413

Classifications

ETIM 8:

EC000018 - Insert/cover for communication technology
ETIM 9:

EC000018 - Insert/cover for communication technology
WEEE Category:

Product Not in WEEE Scope
CN8:

8538 90 99
eClass:

V11.0 : 27144049
